173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module

173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module
173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module

Large Image :  173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-LD2X6CR145x70-TPIII-M-V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/bag 1kg
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Detailed Product Description
Product Name: 173mm Lens Series 20W 25W 30W 12 LED 5050SMD Module With Heatsink 200x72x40mm Model No.: SUN-LD2X6CR145x70-TPIII-M-V
Beam Angle: 145x70 Degree LENS Size: 173X71.4X7.51MM
PCB Size: 145X47X1.5mm Circuit: 2 SERIES 6 PARALLEL/12 Led In Parallel
LED CHIP: 5050SMD LED 24V 160mA Material: Optical Grade PC
TYPE: Type III-M CRI: 70/80
High Light:

SMD5050 LED Light Module

,

173mm Lens LED Light Module

,

30W 12Leds Light Module

173mm lens series 20W 25W 30W 12 LED 5050SMD Module with Heatsink 200x72x40mm



173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 0

Quick Detail:



Model No:SUN-LD2X6CR145x70-TPIII-M-V

Material: PC

Beam Angle : 145X70 degree

Lens size:173X71.4X7.51mm

Circuit: 2 series 6 parallel / 12 LED in parallel

Led chips:5050SMD LED 24V

Lense array of 12 LEDs

Small footprint, high light output





Features :



  1. This SKD 12 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,50W,60W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like

    129X55degree ,60X60 degree ,12 degree ,30X90 degree ,30degree ,90 degree etc.

.



Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





Specifications:



1, Product Name

173mm lens series 20W 25W 30W 12 LED 5050SMD Module with Heatsink 200x72x40mm

2, Model No

SUN-LD2X6CR145x70-TPIII-M-V

3, Main parts

12 Array lens , silicon gasket+PCB +heatsink

4, Lens Material

PC

5, Lens size

173X71.4X7.51mm

6, Transmittance

93%

7,LEDS

5050SMD 1-5W 24V LED

8, Sample

3-4 work day

9, Delivery

5-7 work days for 300 sets

10, Angle

145x70 degree, TYPE3-M

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days









2x6 LENS Dimensions And Beam pattern:



173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 1

173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 2

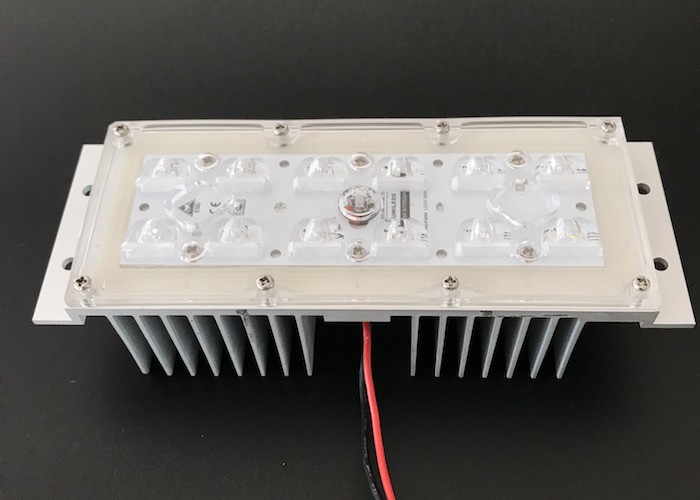

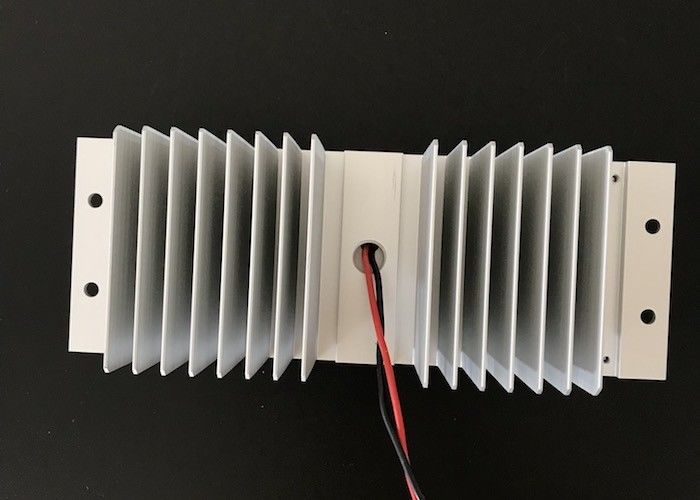

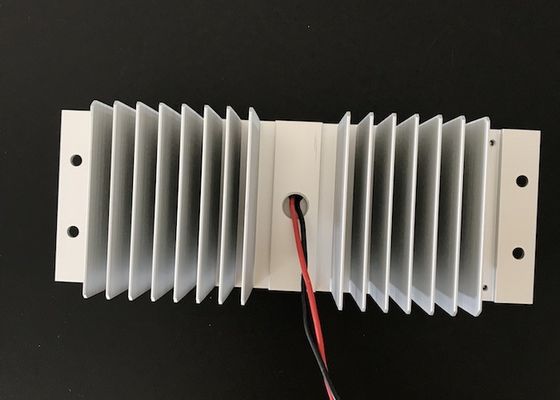

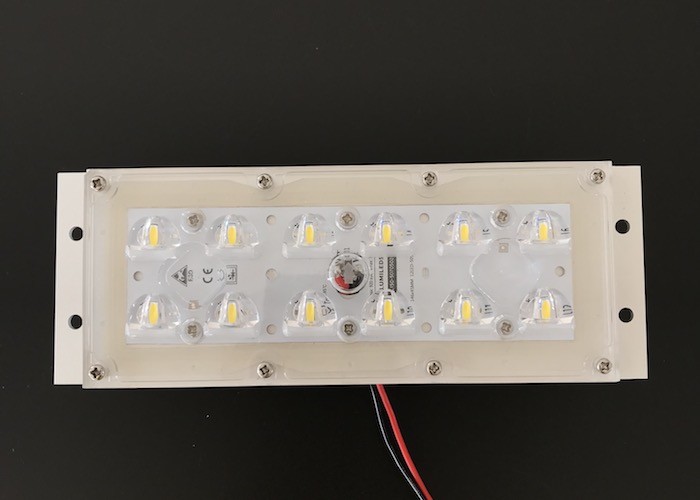

LED module with heat sink:



173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 3

173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 4



173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module 5
