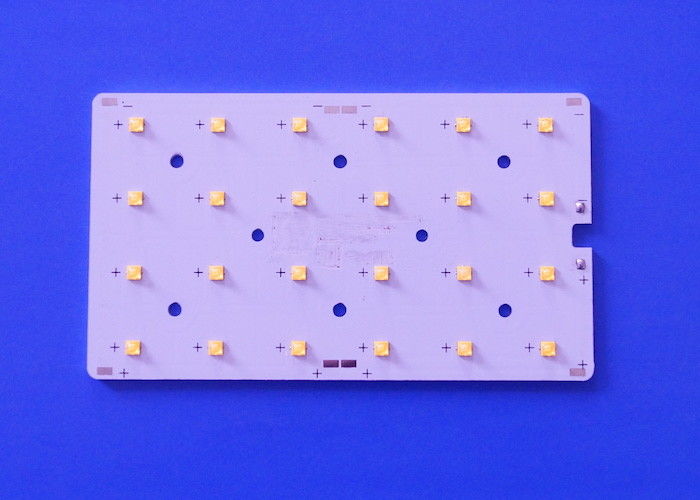

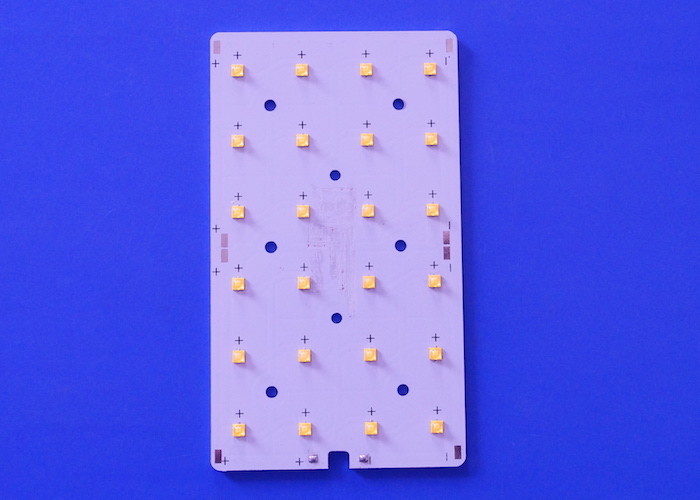

12V 24V Customized Solar Led Light PCB Board XTE / XPG3 LED Plate Aluminium Material

12V 24V Customized Solar Led Light PCB Board XTE / XPG3 LED Plate Aluminium Material

led light pcb

cree led pcb

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-LD145X75CR830B

Contact Us

Request A Quote
Product Details
Product Name:
24V Customized Solar LED Light Circuit Boards XTE / XPG3 LED Plate
Model No.:
SUN-LD145X75CR830B
Thermal Conductivity:
1w/m.k
Layer:
1
Material:
Aluminium
Match LED:
3535 SMD LED
Board Thickness:
1.5mm Or 2.0mm
Solder Mask:
White Color
PCB Size:
128.4x73.4x2.0mm
Circuit For PCB Board:
3 Series 8 Parallel/ 8 Series 3 Parallel
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description


12V 24V Customized Solar LED Light Circuit Boards XTE / XPG3 LED Plate



Product Feature:



1. This led street light module has a small size can match a variety of lamp housing .

2. Whole led light module use CR3535 leds ,High quality leds guarantee long life .

3. We have a competitive price for CR3535 leds .

4. We can according your requirements to desion new Lens and Board.








Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

12V 24V Customized Solar LED Light Circuit Boards XTE / XPG3 LED Plate

2, Model No

SUN-LD145X75CR830B

3, Main parts

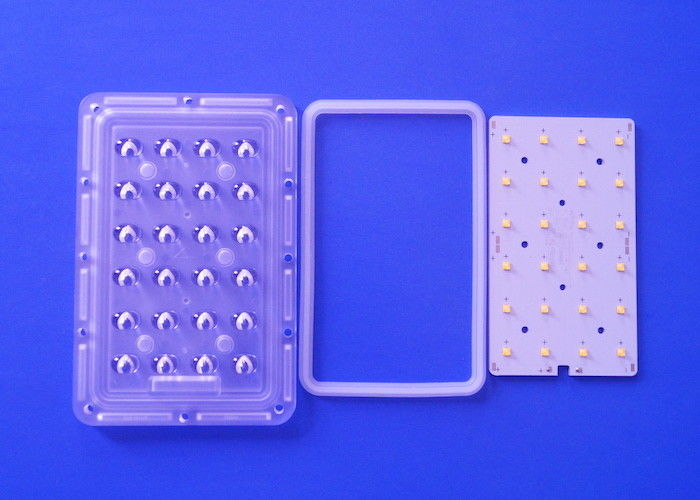

24 Array lens , silicon gasket+PCB+ 3535 SMD LED

4, Material

PC for lens, Aluminium for PCB board

5, Lens size

162x107mm

6, Transmittance

91%

7,LEDS

XTE 150-160LM/W

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, PCB SIZE

128.4x73.4x2.0mm

11,Surface finish HASL-LEAD FREE

12, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

13,Test way 100% TEST

15, Main market

Europe, South America,North America, Asia


Related products:


Model No.

Power(W)

Angle( degree) Lens size(mm) PCB size(mm) Circuit

SUN-LD236x70-5050-30/60/90

50-100W

30/60/90 236X70

217.7x43.5x1.5

2S14P

SUN-LD236X70-5050-90X120

50-100W 90X120 236X70

217.7x43.5x1.5

2S14P

SUN-LD236X70-5050-80X150

50-100W 80X150 236X70

217.7x43.5x1.5

2S14P

SUN-LD270x75-5050-TYPE3-M

50-100W

TYPE3 270X75

250x56x1.5

2S14P

 SUN-LD270X75-5050-TYPE4-S



50-100W

TYPE4 270X75 250x56x1.5 2S14P

SUN-LD270x75-5050-90

50-100W 90 270X75 250x56x1.5 2S14P

SUN-J5050-6H1-60/90

6-20W

60/90

50x50x6.26

65.83x45x1.6



SUN-J5050-6H1-TYPE3

6-20W

TYPE3

50x50x6.26

65.83x45x1.6





Beam pattern:
12V 24V Customized Solar Led Light PCB Board XTE / XPG3 LED Plate Aluminium Material 0


Lens size:

12V 24V Customized Solar Led Light PCB Board XTE / XPG3 LED Plate Aluminium Material 1





Why choosing us - SUNSHINEOPTO ?



1. About 8 years specializing in High Power LED.



2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components.



3. Strict process and quality control.



4. Good raw materials used in production.



5. Strong design and production capability.
