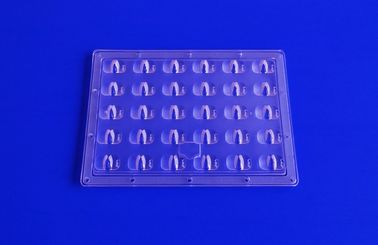

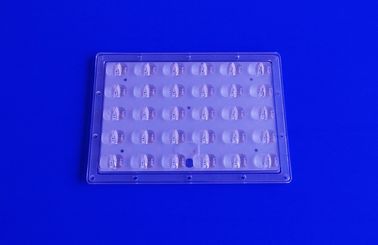

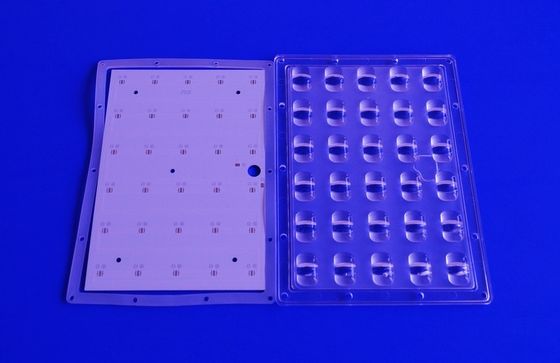

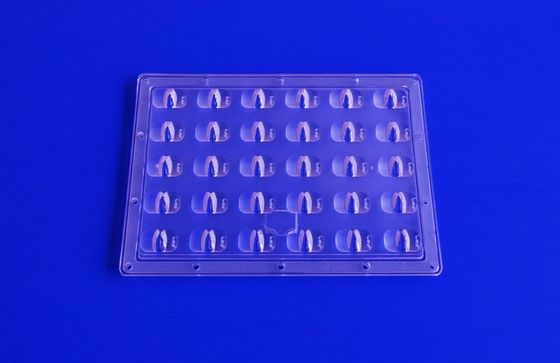

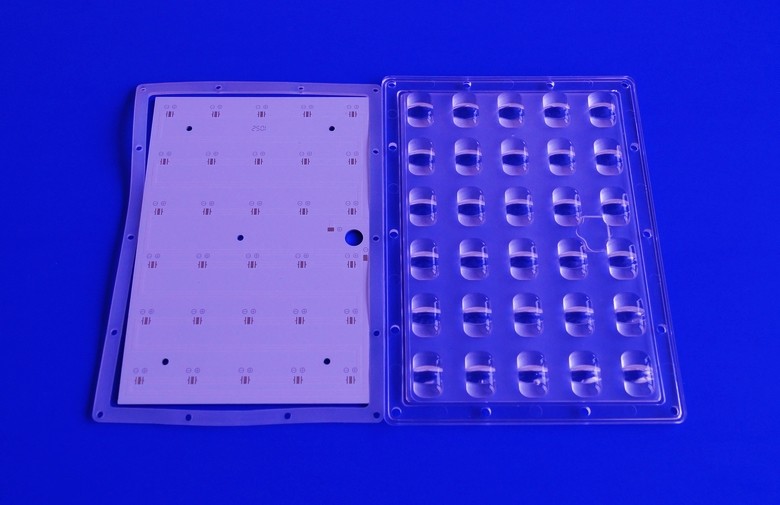

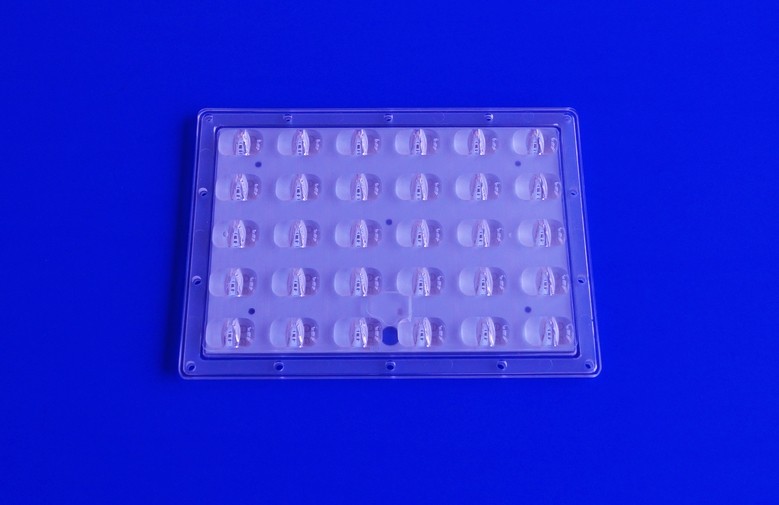

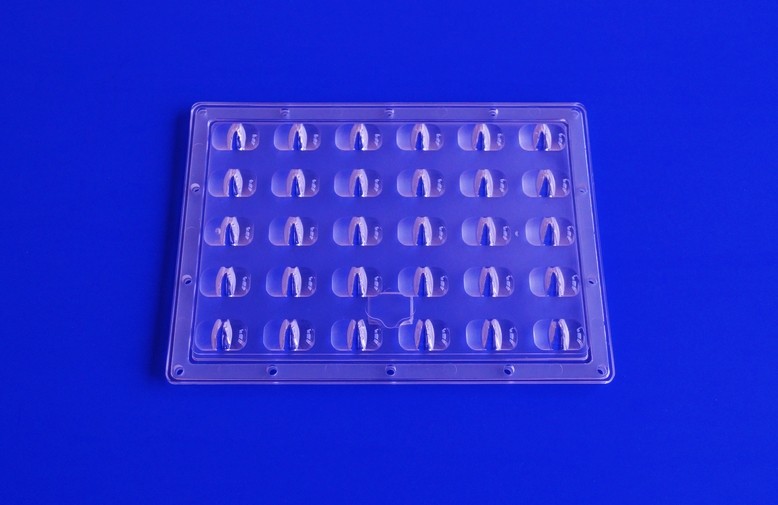

PMMA Led Street Light Components , Led Street Light Module with Xpe Lens

PMMA Led Street Light Components , Led Street Light Module with Xpe Lens

led street light replacement

led light components parts

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

ROHS

Model Number:

SUN-LD5X6

Contact Us

Request A Quote
Product Details
Material:
PMMA
Beam Angle:
90X126degree
Lens Size:
171x125x8.13mm
Match Led:
XPE|XPG|XPC,OSRAM
Payment & Shipping Terms
Minimum Order Quantity
30
Packaging Details
20pcs lens /parcel 32x18x12cm/2.5kgs
Delivery Time
5-6 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

30W Led Street Light Components , 30W Led Street Light Module with Xpe Lens



Quick Detail:

Material: PMMA optical

Beam Angle :90x126degree

Lens size:171x125x8.13mm

Led chips:XPE|XPG|XPC,OSRAM

Model No:SUN-LD5x6

Driver Model :AT1361-36X1



Description:



1.This SKD 30W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W,120W,180W and so on .


2.It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


3.The LED retrofit kits contain no any mercury or lead.


4.Industry-leading thermal management utilizing technology.


5.Directional light means no light pollution, dark sky compliance.





Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .



Specifications:



Product Name

30W Led Street Light Components , 30W Led Street Light Module with Xpe Lens

Model No

SUN-LD5X6

Lens Material

PMMA Optical

MOQ

30pcs

Lens size

171X125X8.13mm

PCB Size

150x104mm

PCB Circuit

30 in series

Certificate

ROHS, CE

Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

Main market

Europe, South America,North America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES, 3 days

Delivery time

5-6 working days





Parameters for AT1361 LED Constant Current driver :

Suitable for AC100V~240V Input voltage

Output power should be less than 36W

Input and output is isolated

Power factor is > 0.9

ROHS standard

Easy to adjust the output of constant current for led lights

Have bared PCB , Plastic box and aluminum enclosure waterproof for choice



Model NO.

AT1361-36X1W

AT1361-7X4W



Rated Input voltage

110VAC/220VAC



Input voltage scale

100~240VAC ,47~63Hz



Power factor

>0.9

>0.9

Efficiency

>88%

>84%

Rated input power

<42W

<44W

Loading input power

<2.5W

<2.5W

Short-circuit input power

<6W

<6W

AC Current

<220 mA

<220 mA

Cold start surge current

<15A

<15A

Leakage current

<2mA

<2mA

Constant current output scale

320±20mA 72~115V

1280±50mA,21~25V

Loading voltage

<128V

<32V

Ripple ,noise

1V

1V

Linear adjust

2%

2%

Load regulation

2%

2%

Time for starting

<1.3S

<1.3S

Opposite for wires

Normal working

Low or high  input voltage

Low voltage ,no output or twinkle ;high voltage will damage the

power supply

Short-circuit or open-circuit  output

It’ll discharge sound ‘blah’ when short-circuit or open-circuit

Overheat

IC has protection for overheat

Working temp & humidity

-20℃-60℃,20-95%RH

Storing temp ,humidity

-25℃-80℃,20-95%RH

RoHS

YES

MTBF

>25000 HOURS

Dimension ,weight

PCB:142mm*34.5 mm*24mm ;110g

Metal case waterproof 180*37*29mm 3 30g

Input wires:



stranded cable black /PVC 0.50mm2/length 150mm; L N G/W ground wire

Output wires

stranded cables white/0.50mm2/length 150mm Black LED -  ; RED /LED + Ground wire





Competitive Advantage:

Advantages of 30W SKD LED street light Module:

1).Using high quality USA XPE/XPG chips


2).CE driver, very easy for repair/replacement


3).Various choice : AC 100-240V Input voltage Waterproof or non-waterproof


4).Higher lumen compared to similar models of others


5).Positive cooling technology


6).Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance


7).Industry-leading thermal management utilizing technology


8).Top quality with warranty of 2 years warranty


9).LM80 testing reports available


10)All models are simply installed by E26/E39/E40 mounting brackets.
