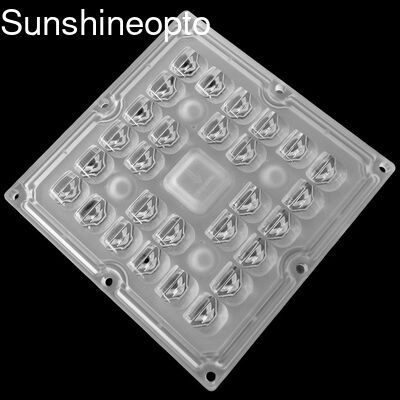

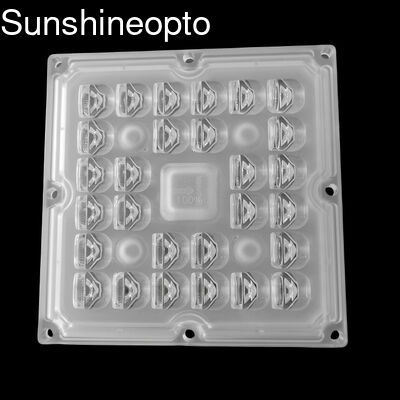

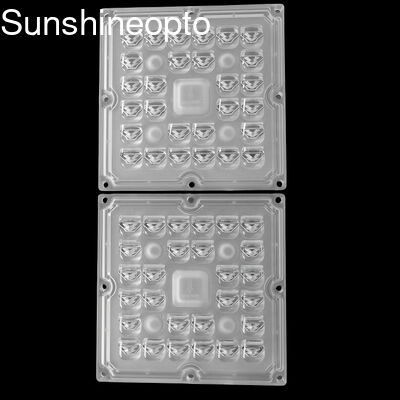

Export 3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material

Brand Name: Sunshineopto
Model Number: SUN-D100-28H1-100X60-TPIV-S
MOQ: 100
Price: negotiate
Packaging Details: Cartons
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,RoHS,CE
Product Name:
3535 SMD Array LED Lens 28 In 1 Square Module Lens For 30w - 50w
Model No.:
SUN-D100-28H1-100X60-TPIV-S
Lens Size:
100x100x8.5mm
PCB Size:
76x76x1.5mm
Beam Angle:
100X60 Degree
Circuit For PCB Board:
14 Series 2 Parallel
LED Chip:
XTE2 XPG3 3535 SMD LED
Transmittance:
91%
Material:
Optical Grade PC
Applications:
High Bay Light/Street Light/Square Lighting/Projection Lam And So On
Supply Ability:
10000pcs/months
Highlight:

multi lens array

,

led light array

Product Description
Export 3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material

This 3535 SMD Array LED lens 28 in 1 square module provides an efficient retrofit solution for existing lighting systems, delivering superior performance with minimal installation costs.

Product Overview
Our 3535 SMD LED Lens Array is a high-performance optical component designed for LED lighting exporter that require excellent beam angles and high luminous efficiency. Each module includes 28 high-quality LED lenses, offering a 100x60-degree beam angle for broad and even light distribution, making it ideal for commercial lighting, industrial lighting, and outdoor lighting applications. The module is made from optical-grade materials, ensuring top-notch optical performance and optimized light output efficiency.
Key Features
  • Ideal retrofit solution for replacing 100W traditional lamps with 28-50W LED efficiency
  • Cost-effective alternative to complete fixture replacement - reuse existing housings
  • Advanced thermal management technology for optimal performance
  • Wide operating temperature range: -35°C to +70°C
  • Mercury-free and lead-free construction
  • No harmful UV radiation emission
  • Directional lighting design minimizes light pollution and ensures dark sky compliance
  • Multiple beam angle options available: 60°, 90°, 150°, 117x52°, 100x140°, 181x51°
Technical Specifications
Product Name 3535 SMD Array LED Lens 28 in 1 Square Module for 30W-50W
Model No SUN-D100-28H1-100X60-TPIV-S
Main Components 28 Array lens, silicon gasket, PCB, XTE/XPG 3535 SMD LED
Lens Material PC
Lens Size 100x100x8.5mm
PCB Size 76x76x1.5mm
Circuit 14 series 2 parallel
Transmittance 91%
LED Specifications 3535 SMD LED 3V 1-5W
Sample Availability 3-4 working days
Production Delivery 5-7 working days for 10,000 sets
Beam Angle 100*60 degree/TYPE IV -S
Quality Guarantee Defective item replacement or refund with photo documentation
Primary Markets Europe, South America, North America, Asia

Product Dimensions & Specifications
Export 3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 0Export 3535 SMD LED Lens Array 28 In 1 Square Module with 100X60 Degree Beam Angle and Optical Grade PC Material 1

Shipping & Delivery
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB | EXW | CIF | CFR
Sample Availability Yes
Delivery Time 3-4 working days
Applications
  • Street lighting
  • highway lamps
  • tunnel lighting
  • square illumination
  • road lighting
  • urban lighting systems
  • parking spot lighting
  • track lighting fixtures
  • landscape lighting
  • retail lighting
