Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light

Basic Information

Place of Origin:	China
Brand Name:	SunshineOpto
Model Number:	SUN-D5050-4H1-B waterproof

Minimum Order Quantity:	1000
Price:	negotive
Packaging Details:	cartons
Delivery Time:	according to the quantity
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000PCS/week

Get Best Price Contact Now

Detail Information

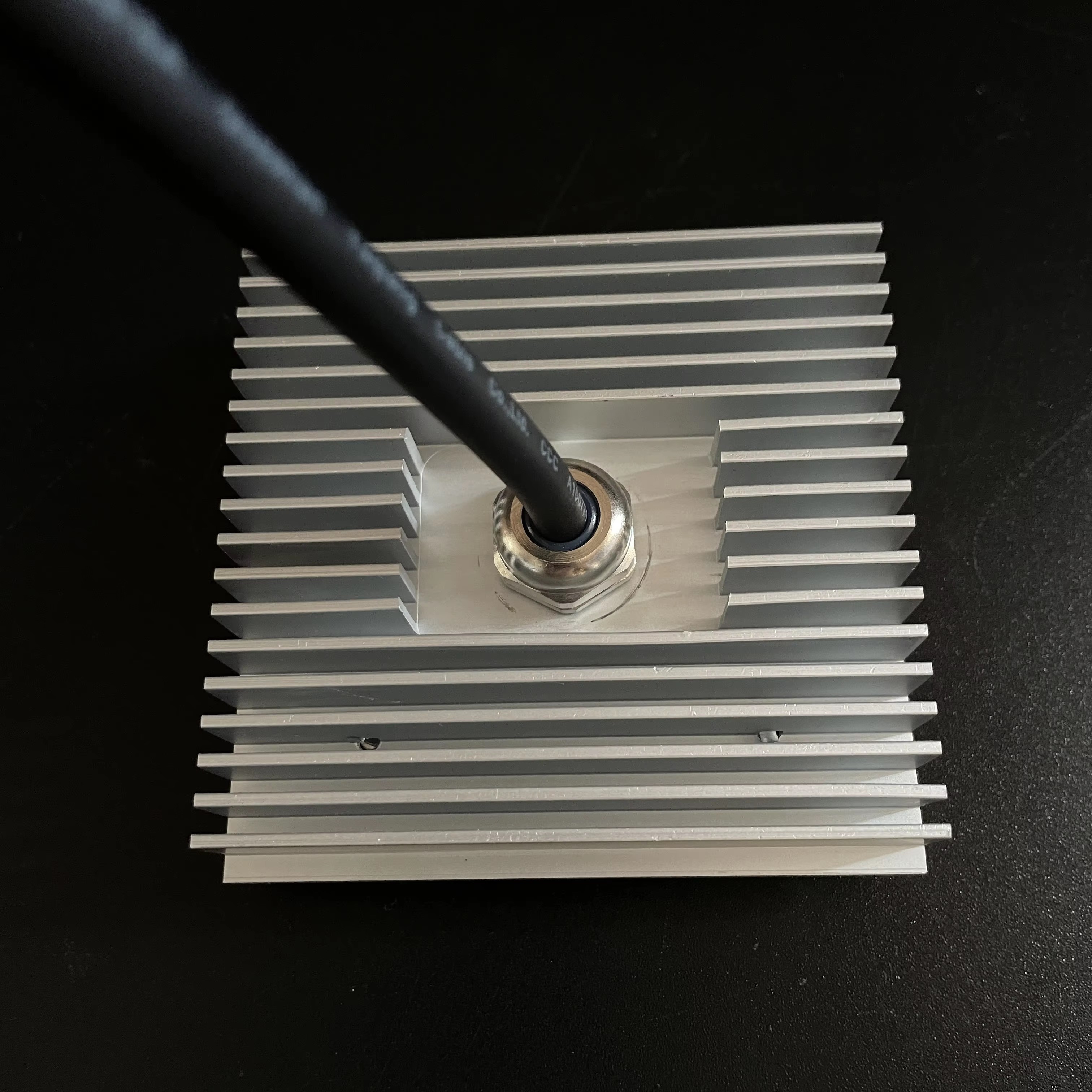

Heat Sink:

L75*W75*T15mm

Lens Size:

50X50mm

PCB Circuit:

2S2P Or 4P1S, 12V/24VDC For Choose

Lens Angle:

60/90/150/150x75 Degree

Highlight:

SMD 5050 LED Street Light Module

50*50mm LED Street Light Module

Street Light LED Street Light Module

Product Description

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Light Replacement Retrofit Components 12V 24V LED Module for Street Light and Garden Light

Product description:

Features:

1, We use high quality brand 24V/6V 5050 SMD leds, one module support 10-15W power.

2, The PCB Circuit can design as 2 series or 1 series to meet 12V or 24V voltage requirements.

3, High Luminous flux 150-170lm/W but cheap price .

4, High transmittance PC lens with 60/90/150/150x75 degree beam angle for choose.
5, Designed for square application with easy installation process,
Suitable for retrofit projects and creating circular lights

Quick Details:

Model	SUN-D5050-4H1-B waterproof
Power	10W
Input Voltage	24V DC(If you need 12V DC, please contact us)
Current	400mA
Leds	4PCS 5050 LEDS
CCT & CRI	3000K/4000K/5000K/5700K/6500K Ra>70
Luminous efficiency	160lm/W
Luminous flux	1600lm
Material	Heat sink: Aluminum / Lens: PC/ PCB: Aluminum
IP level	IP 66
Dimensions	L75W75T15mm

Dimensions & drawing:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light 0

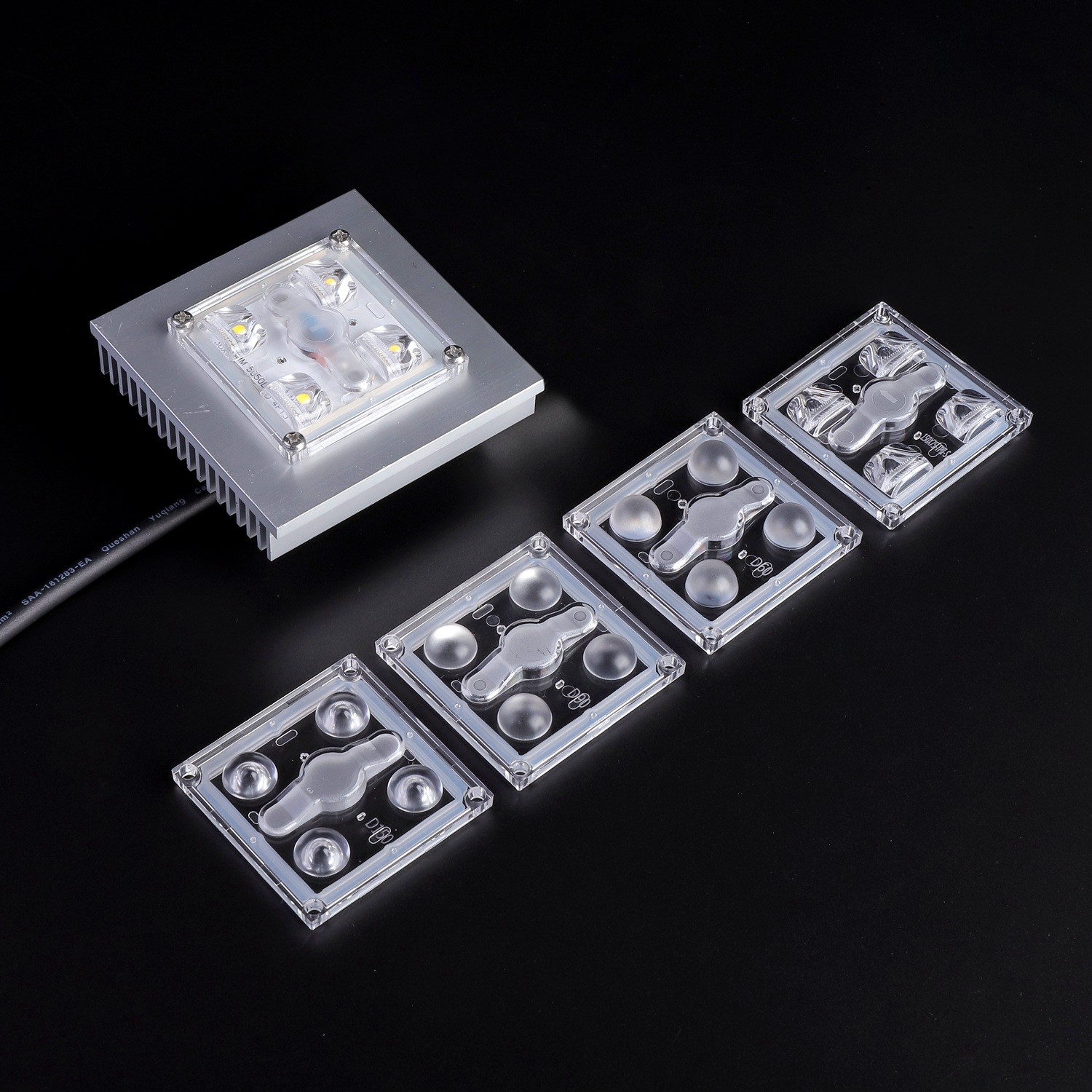

Lens beam angle:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light 1

Details:

Application:
