56W PC LED Street Light Lens with 30-155*80 Degree Beam Angle and SMD 3030 LEDs for High Luminous Flux
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | PC Led Street Light Lens , 56W Led Collimator Lens For Led Street Light | Beam Angle | 30 , 60 , 90 , 30*70 , 60*90 , 145*70 , 155*80 Degree |
|---|---|---|---|
| Lens Size | 256.6*78.6*7.1mm | PCB Size | 233*55*1.5mm |
| Circuit | 7 Series 8 Parallel | Accessory | AL PCB+ Silicone Gasket |
| Highlight | Led light lens,Pmma LED Lens |
||
Product Description

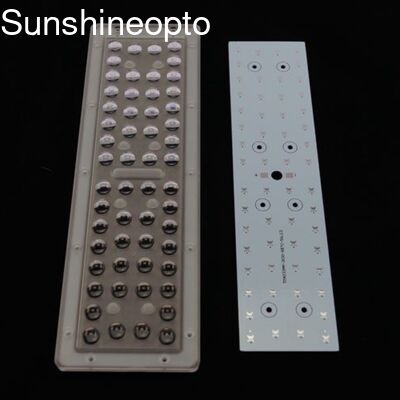

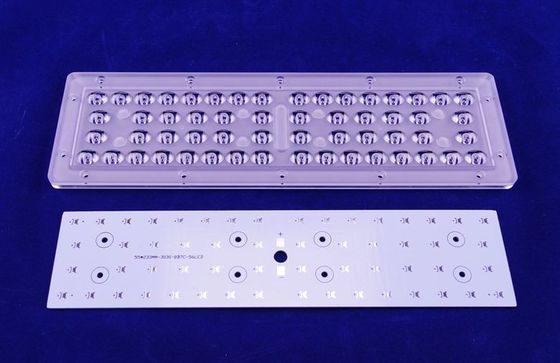

PC LED Street Light Lens - 56W LED Collimator Lens
This 56W LED array lens with PCB module is designed for retrofitting traditional street lamps and creating efficient LED lighting solutions with various beam angle options.
Quick Details
Model No: SUN-LD56W
Material: PC (Polycarbonate)
Beam Angle Options: 30°, 60°, 90°, 30×70°, 60×90°, 145×70°, 155×80°
Lens Size: 256.6×78.6×7.1mm
PCB Size: 233×55×1.5mm
Circuit Configuration: 7 series 8 parallel
LED Chips: SMD 3030 LEDs
Configuration: Lens array of 56 LEDs
Material: PC (Polycarbonate)
Beam Angle Options: 30°, 60°, 90°, 30×70°, 60×90°, 145×70°, 155×80°
Lens Size: 256.6×78.6×7.1mm
PCB Size: 233×55×1.5mm
Circuit Configuration: 7 series 8 parallel
LED Chips: SMD 3030 LEDs
Configuration: Lens array of 56 LEDs
Key Features
- Ideal for retrofitting 100W traditional lamps and designing 56W, 112W, 168W power lamps
- Lowest total cost solution - reuse existing housings to significantly reduce costs
- Industry-leading thermal management technology
- Operating temperature range: -35°C to +70°C
- Mercury-free and lead-free construction
- No UV radiation emission for eye safety
- Directional lighting prevents light pollution and ensures dark sky compliance
- Multiple optic lens options for various beam angle requirements
Applications
Street lighting, highway LED lamps, tunnel lamps, square lighting, road lamps, city lighting, parking spot lighting, track lighting fixtures, scenic area lighting, retail lighting, and other applications requiring high luminous flux.
Technical Specifications
| Product Name | PC LED Street Light Lens, 56W LED Collimator Lens |
| Model Number | SUN-LD56W |
| Main Components | 56W Array lens, silicon gasket, aluminium PCB with LEDs |
| Lens Material | PC (Polycarbonate) |
| Lens Dimensions | 256.6×78.6×7.1mm |
| Transmittance | 90% |
| LED Type | SMD 3030 LEDs |
| Sample Lead Time | 3-4 working days |
| Production Delivery | 7-10 working days for 100 sets |
| Beam Angles | 30°, 60°, 90°, 30×70°, 60×90°, 145×70°, 155×80° |
| Quality Guarantee | Defective item replacement or refund with photo evidence |
| Main Markets | Europe, South America, North America, Asia |
Shipping & Delivery
| DHL/UPS/TNT/FEDEX | 4-5 working days |
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB, EXW, CIF, CFR |
| Sample Availability | Yes |
| Sample Delivery Time | 3-4 working days |
Competitive Advantages
- High-quality components compatible with Edison, P4 standards
- CE-certified drivers for easy repair and replacement
- Multiple options: AC 100-240V input, waterproof or non-waterproof
- Higher lumen output compared to similar models
- Positive cooling technology for optimal performance
- Reduces energy costs by up to 90% compared to traditional lamps
- Reduces maintenance costs by up to 90% with minimal maintenance requirements
- Industry-leading thermal management technology
- 2-year warranty with top quality assurance
- LM80 testing reports available
Product Images
