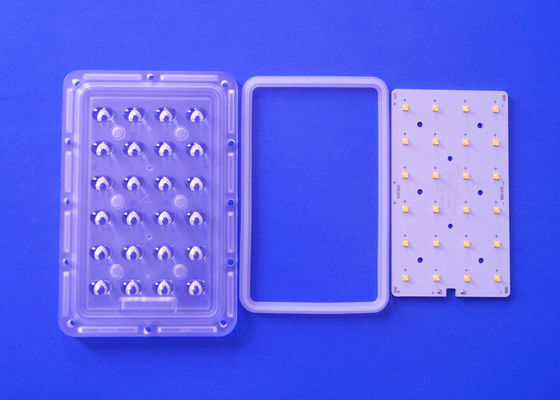

Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB

Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB
Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB

Large Image :  Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: SunshineOpto
Certification: SGS/ROHS
Model Number: SUN-LD145X75-CR830B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: need to negotiation
Packaging Details: Cartons
Delivery Time: 3-15 working days
Payment Terms: T/T, Western Union, MoneyGram，Paypal
Supply Ability: 5000 sets per month
Contact Now
Detailed Product Description

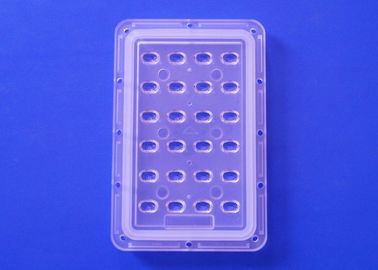

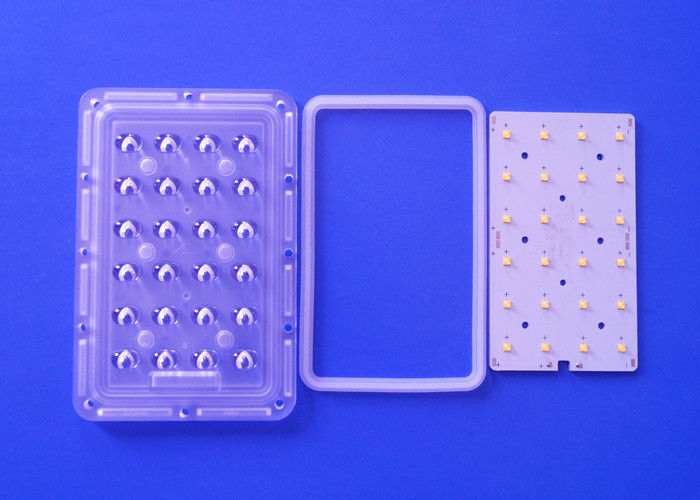

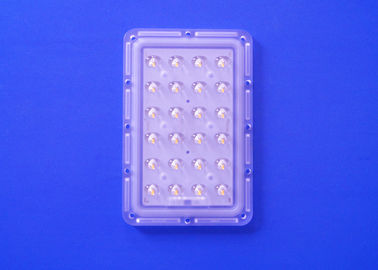

Product Kits: Led Lens With Silicon Gasket+pcb Welding 24pcs 3535 Leds Lens Size: 162*107*8mm
Lens Angle: 145*75 Degree Asymmetric PCB Size: 128.4*73.4*2.0 Mm
PCB Circuit: 8 Series 3 Parallel Match Led: CR 3535 Leds
Recommended Power: 30watt -60watt Warrenty: 2 Years
High Light:

led light replacements

,

led lighting module

Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB



Product Feature:



1 ,This led street light module has a small size can match a variety of lamp housing .
2 ,Whole led light module use CR 3535 leds ,High quality leds guarantee long life .
3 ,We have a competitive price for CR 3535 leds .





DATASHEET
Features 1. High Quality Original CR 3535 leds .
2. Competitive price for whole led light module
3. Luminous efficacy can up to 130lm/w-170lm/w.
Application Street ,Garden , pathway, road, sidewalk, etc.

General

information

 Name LED Street Light
Model No. SUN-LD2X6CR

SUN-LD145x75

CR830B

SUN-3X10-

CR120

SUN-LD6X6-

3535

SUN-LD4x12-

3535
Picture 135X55 TPII-H_.jpg DSC01827_.jpg DSC09567__.jpg DSC00649__.jpg DSC09832__.jpg
Light source SMD
Chip CR 3535
Warranty 2 years
Power(W) 12-24W 24-48W 30-60W 36-70W 48-90W

Optical

Information

Luminous

flux(lm)

 1800-3200lm 3700-6400lm 4700-8000lm 5600-9300lm 7500-12000lm

Luminous

efficacy(lm/w)

 130-170lm/W 130-170lm/W 130-170lm/W 130-170lm/W 130-170lm/W
CRI >70

Color

temperature

 2700K-6500K

LED quantity

(PCS)

 12 24 30 36 48
Beam angle

135*55°

141*78°

145*83°

145*95°

157*57°

 145*75°

78*132°

120°

 60*140°

60*60°

90*90°

62*144°

Lens

material

 PC

Mechanical

Information

Ambient

temperature

 -40℃~50℃

Working

temperature

 <60°

Storage

temperature

 -40℃~50℃
IP Rating IP65



Product Picture :

Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB 5



Our Main Seivice :

Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB 6

We Provide Custom Service ,Please feel free to contact us ~~~



Application : led street light ,high way lamp ,etc .

Shoebox CR 3535 LED Lighting Module With 24pcs CR XTE LED PCB 7
