30-60 Watt 5050 Led LED Street Light Module 2 Series 14 Parallel PCB Circuit High Efficiency

Name: 30-60 Watt 5050 Led LED Street Light Module 2 Series 14 Parallel PCB Circuit High Efficiency
Brand: Sunshine Opto-electronics Enterprise Co.,ltd
SKU: SUN-LD236X70-5050
Price: 14.80 USD
Availability: InStock

Brand Name:	SunshineOpto
Model Number:	SUN-LD236X70-5050
MOQ:	20
Price:	need to negotiation
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, MoneyGram,PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS/ROHS

Product Kits:

Led Lens With Silicon Gasket ,pcb Welding 5050 Leds ,Heat Sink

Lens Size:

236*70mm

Lens Angle:

90*120°,80*150°,80*150°Vertical,

PCB Size:

217.7x43.5x1.5mm

PCB Circuit:

2 Series 14 Parallel

Match Leds:

5050 Led

Packaging Details:

20 sets/Carton .

Supply Ability:

5000 sets per Month

Highlight:

led light replacements

led lighting module

Product Description

30-60watt 5050 Led High-Efficiency Module For Street Light

1, The module uses high-quality 5050 leds and we provide 2 years warranty .

2, The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,

3, The size of this module is 236*70mm ,It's more common and can be used to replace old products .

Quick Details :

Model No.:	SUN-LD236X70-5050
Angle:	90120°,80150°,80150°Vertical,*
Lens Size:	236x70mm
PCB Size:	217.7x43.5x1.5mm
Lens Material:	Optical grade PC
Circuit:	2 series 14 parallel
LED:	28 pcs 5050 SMD LED

Technical Parameters :

Model No.		SUN-LD236X70-5050
Power(W)		30	40	50	60
Voltage(Vf/V)		46.03	46.50	47.25	47.08
Current(If/mA)		648.4	848.2	1048.3	1298.3
Color Temp Tc(K)		4000	4000	4000	4000
Efficiency (lm/W)	Without lens	173.87	171.37	165.00	160.04
	with lens	156.53	150.83	145.90	143.27
Luminous Flux (φv/lm)	without lens	5189	6686	8124	9874
	with lens	4614	5949	7227	8757
Color Index(Ra)		>70	>70	>70	>70
Lens beam angle		90120°,80150°,80*150°Vertical,
Wick		28 pcs 5050 leds
Protection level		IP66
Working temperature(℃)		-30 - 50
storage temperature(℃)		-30 - 65
Server Life(H)		50000

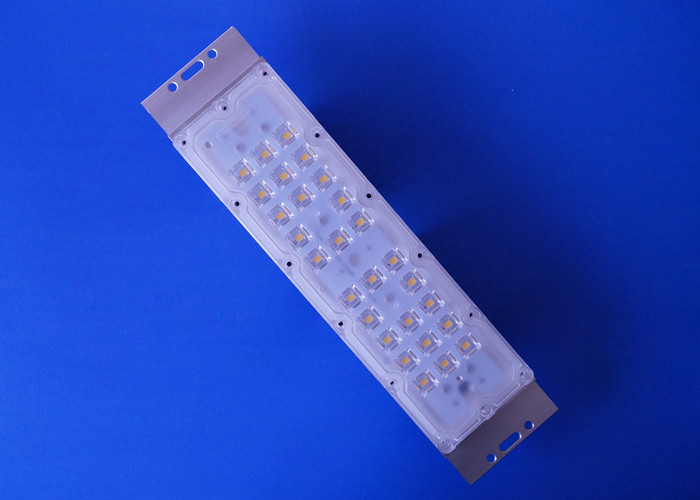

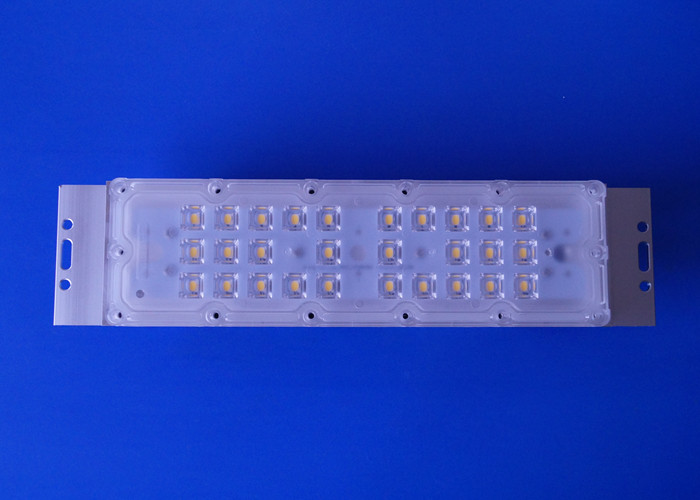

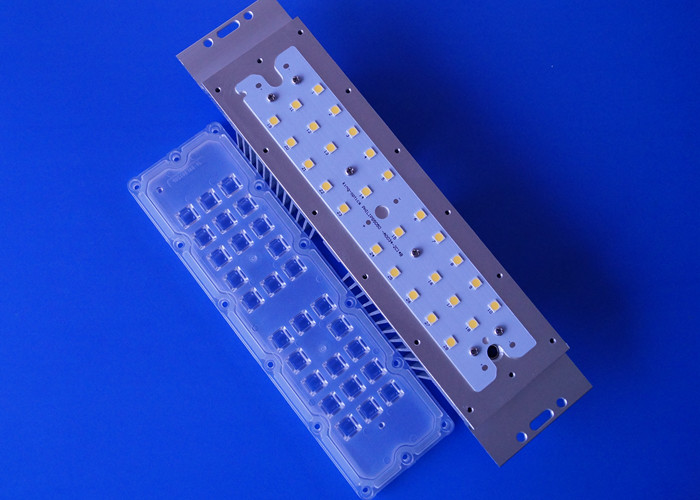

Product Picture :

30-60 Watt 5050 Led LED Street Light Module 2 Series 14 Parallel PCB Circuit High Efficiency 0

We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .

Light distribution :

30-60 Watt 5050 Led LED Street Light Module 2 Series 14 Parallel PCB Circuit High Efficiency 1

Package :

20sets/carton ,14kg ,55*33*21cm .

Application :

Highway lamp ,street light ,etc .

30-60 Watt 5050 Led LED Street Light Module 2 Series 14 Parallel PCB Circuit High Efficiency 3

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
