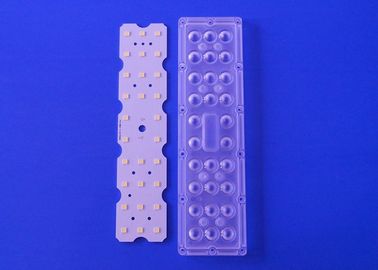

130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit

130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit
130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit 130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit 130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit 130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit

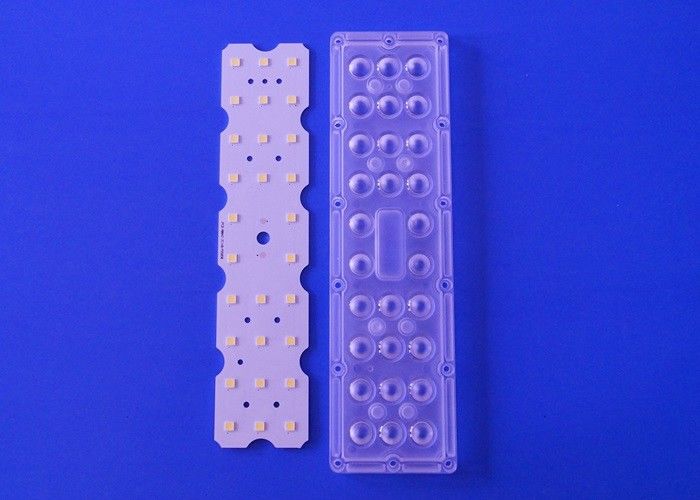

Large Image :  130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit

Product Details:
Place of Origin: Shenzhen,China
Brand Name: SunshineOpto
Certification: SGS/ROHS
Model Number: SUN-LD270X75-5050-130
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: need to negotiation
Packaging Details: 20 sets/Carton .
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 5000 sets per Month
Detailed Product Description
Product Kits: Led Lens With Silicon Gasket ,pcb Welding 5050 Leds Lens Size: 270x75mm
Lens Angle: 130 Degree PCB Size: 250x56mm
PCB Circuit: 2 Series 14 Parallel Match Leds: 5050 Led
High Light:

high bay lens

,

replacement light lens



130 Degree 5050 Led Linear High Bay Light Module





1, The module uses high-quality 5050 leds and we provide 2 years warranty .



2, The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,



3, The size of this module is 275*70mm ,It's more common and can be used to replace old products .



4, 130 degree wide angle make the light range bigger .







Quick Detail :

Model No.: SUN-LD270X75-5050-130
Lens size : 270X75mm
Lens angle: 130 degree TYPE5
PCB Size: 250X56X1.5mm
PCB Circuit: 2 series 14 parallel for 5050 leds ,7 series 16 parallel for 3030 leds
Transmittance: 90-93%
Match Led: 28 pcs 4x3030/5050 leds





Technical Parameters :



Model No. SUN-LD270X75-5050-130
Power(W) 30 40 50 60
Voltage(Vf/V) 46.03 46.50 47.25 47.08
Current(If/mA) 648.4 848.2 1048.3 1298.3
Color Temp Tc(K) 4000 4000 4000 4000
Efficiency (lm/W) Without lens 173.87 171.37 165.00 160.04
with lens 156.53 150.83 145.90 143.27
Luminous Flux (φv/lm) without lens 5189 6686 8124 9874
with lens 4614 5949 7227 8757
Color Index(Ra) >70 >70 >70 >70
Lens beam angle 130 degree
Wick 28 pcs 5050 leds
Protection level IP66
Working temperature() -30 - 50
storage temperature() -30 - 65
Server Life(H) 50000



Product Picture :

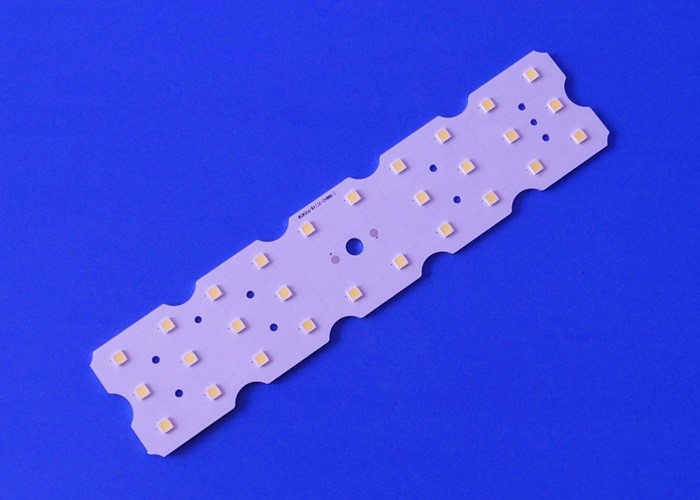

130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit 0



We provide led Linear High light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .



Light distribution :

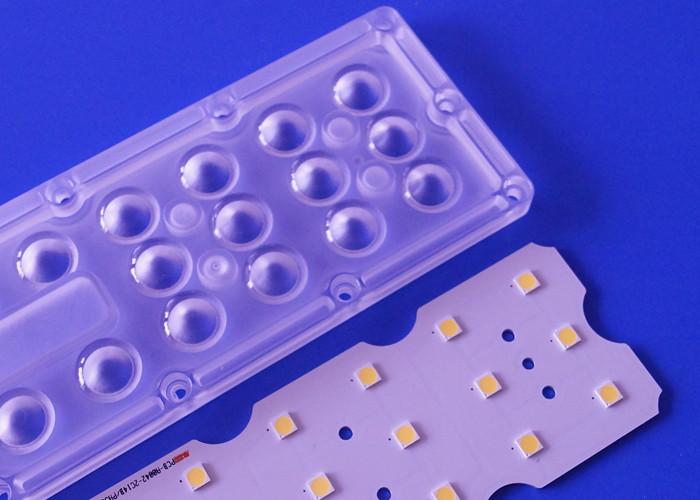

130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit 1





Package :



20sets/carton ,14kg ,55*33*21cm .

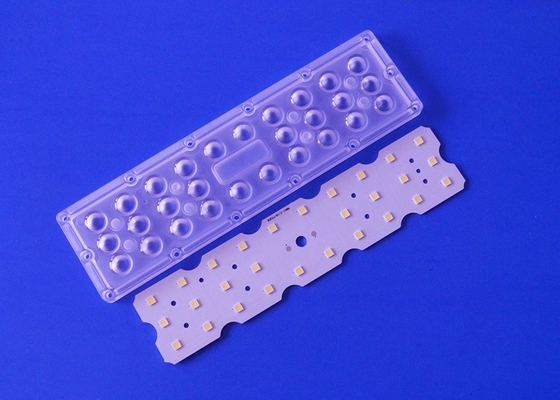

130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit 2



Application :

Led Linear High Bay Light ,indoor light ,etc .

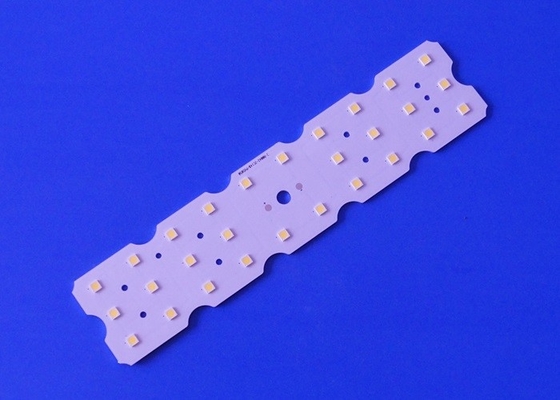

130 Degree 5050 Led Linear Lens High Bay Light Module 2 Series 14 Parallel PCB Circuit 3





FAQ



Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q2. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
