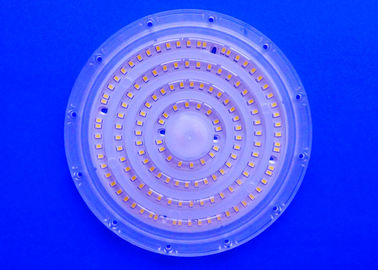

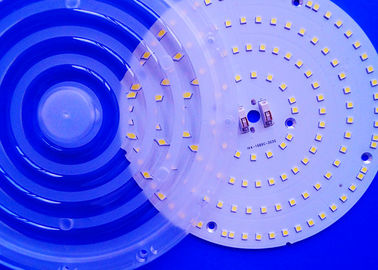

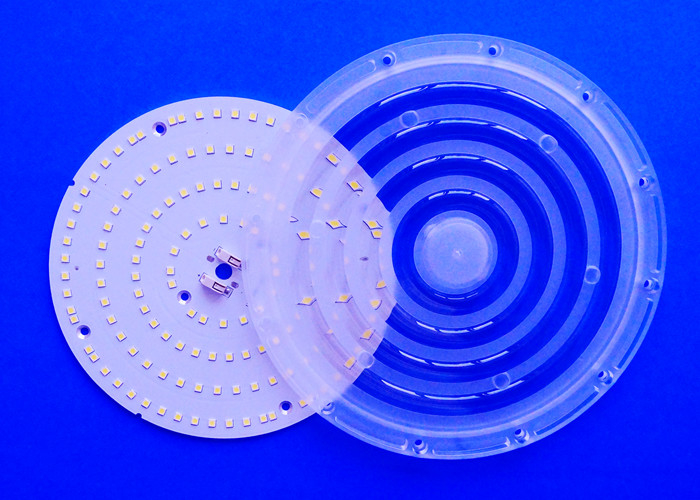

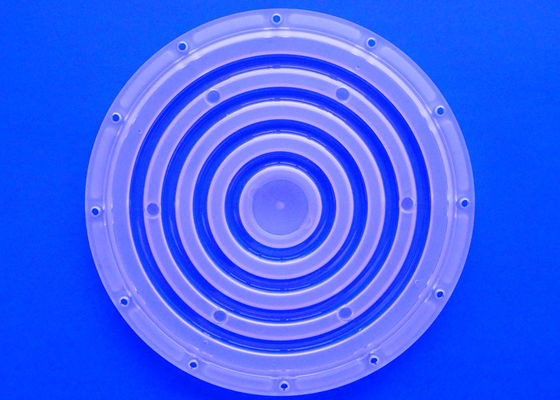

100W 3030 LED PCB Module with High Bay Lens 92% Light Transmittance PC Optical Lens for Industrial High Bay Lighting

Brand Name:	SunshineOpto
Model Number:	SUN-206-184-90-3030
MOQ:	100 piece
Price:	need to negotiation
Packaging Details:	cartons
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS/RoHS/CE

Power:

100W

Lens Size:

Dia 184mm

Lens Angle:

90 Degree

Lens Material:

Transmittance:

92%

PCB Size:

Dia 150mm

PCB Circuit:

9 Series 16 Parallel

Wick:

144PCS 3030 Leds

Supply Ability:

5000 pcs per month

Highlight:

high bay lens

replacement light lens

Product Description

100W 3030 LED PCB Module with High Bay Lens 92% Light Transmittance PC Optical Lens for Industrial High Bay Lighting

Product Overview

The 100W 3030 LED PCB Module with High Bay Lens is a highly integrated LED lighting solution designed for industrial, commercial, and warehouse high bay lighting applications. Featuring high-efficiency 3030 LED chips and a precision-engineered PC optical lens with up to 92% light transmittance, this module delivers superior illumination performance, excellent thermal management, and long operational life.Designed for OEM and ODM lighting manufacturers, the module combines LED light source, PCB board, and optical lens into one compact assembly, helping reduce production costs and simplify fixture assembly.Whether used in warehouses, manufacturing facilities, logistics centers, gymnasiums, workshops, or retail high bay fixtures, this LED PCB module provides reliable, energy-efficient lighting with uniform beam distribution.

Product Features

Utilizes premium 3030 SMD LEDs with high luminous efficacy and stable performance, ensuring maximum energy savings and consistent light output.
Equipped with a high-transparency PC lens offering up to 92% light transmittance, maximizing lumen output while minimizing optical losses.
The aluminum PCB design efficiently dissipates heat, maintaining lower junction temperatures and extending LED lifespan.
The optimized optical structure delivers consistent illumination with reduced glare and improved lighting uniformity.
Engineered for demanding industrial environments, providing a service life of over 50,000 hours under normal operating conditions.
Custom LED layouts, beam angles, PCB dimensions, color temperatures, and branding options are available for lighting manufacturers and project contractors.

Product Specifications

Model No	SUN-206-184-90-3030
Lens Size	Dia 184mm
Lens Beam Angle	60°, 90°, 120° for choice
PCB Size	Dia 150mm, 2.0w/m·k
PCB Circuit	9 series 16 parallel
PCB Material	Aluminum PCB
Color Temperature	2700K-6500K Optional

Beam Angle Drawing

Applications

High Bay Lights
Warehouse Lighting Systems
Factory Lighting
Logistics Centers
Manufacturing Plants
Gymnasium Lighting
Exhibition Hall Lighting
Supermarket High Ceiling Lighting
Commercial High Bay Fixtures
Retrofit High Bay Projects

Shipping & Delivery Informations

Shipping Method	Delivery Time
DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB \| EXW \| CNF
Sample Availability	YES
Standard Delivery Time	3-4 working days

Frequently Asked Questions

Q1: What are the advantages of 3030 LEDs?

A:3030 LEDs provide high luminous efficiency, low power consumption, and excellent reliability for industrial lighting.

Q2: Can beam angles be customized?

A:Yes. Different beam angles can be customized according to project requirements.

Q3:Do you provide OEM and ODM services?

A:Yes, including lens design, PCB development, branding, packaging, and optical optimization.
