28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W

28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W
28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W

Large Image :  28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W

Product Details:
Place of Origin: Shenzhen,China
Brand Name: SunshineOpto
Certification: SGS/ROHS
Model Number: SUN-LD236X70-5050
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: need to negotiation
Packaging Details: 20 sets/Carton .
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 5000 sets per Month
Detailed Product Description
Product Kits: Led Lens With Silicon Gasket ,pcb Welding 5050 Leds Lens Size: 236X70mm
Lens Angle: 90*120° PCB Size: 217.7x43.5x1.5mm
PCB Circuit: 2 Series 14 Parallel Match Leds: 5050 Led
Working Power: 30W 40W 50W 60W
High Light:

led light replacements

,

led lighting module



28 Points 5050 Led High-Efficiency Module For Street Light 30W 50W 60W





1, The module uses high-quality 5050 leds and we provide 2 years warranty .



2, The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,



3, The size of this module is 236*70mm ,It's more common and can be used to replace old products .





Quick Detail :

Model No.: SUN-LD236X70-5050
Angle: 90*120°,80*150°,80*150°Vertical,
Lens Size: 236x70mm
PCB Size: 217.7x43.5x1.5mm
Lens Material: Optical grade PC
Circuit: 2 series 14 parallel
LED: 28 pcs 5050 SMD LED





Technical Parameters :



Model No. SUN-LD236X70-5050
Power(W) 30 40 50 60
Voltage(Vf/V) 46.03 46.50 47.25 47.08
Current(If/mA) 648.4 848.2 1048.3 1298.3
Color Temp Tc(K) 4000 4000 4000 4000
Efficiency (lm/W) Without lens 173.87 171.37 165.00 160.04
with lens 156.53 150.83 145.90 143.27
Luminous Flux (φv/lm) without lens 5189 6686 8124 9874
with lens 4614 5949 7227 8757
Color Index(Ra) >70 >70 >70 >70
Lens beam angle 90*120°,80*150°,80*150°Vertical,
Wick 28 pcs 5050 leds
Protection level IP66
Working temperature() -30 - 50
storage temperature() -30 - 65
Server Life(H) 50000

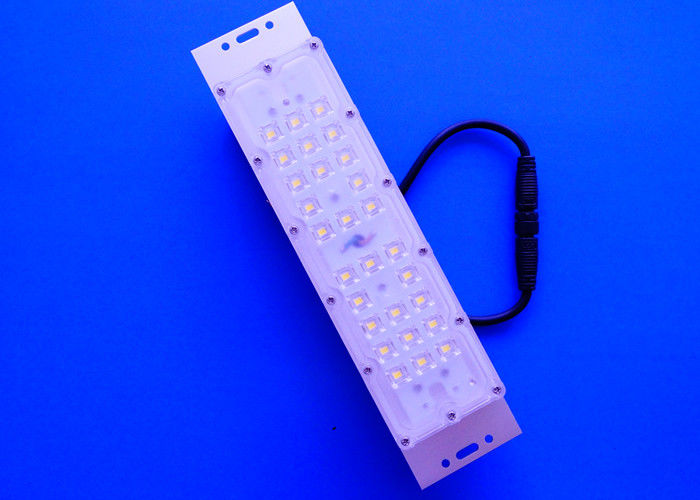

Product Picture :

28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W 0





We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .

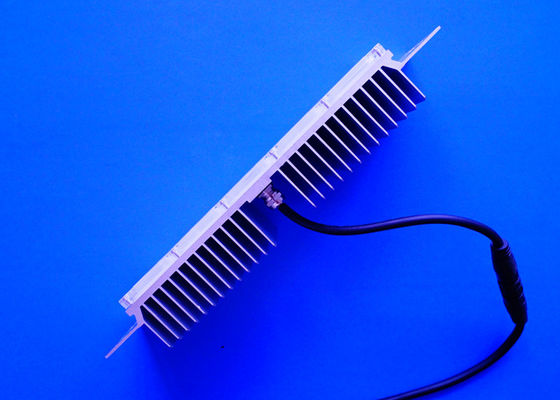

Lens Size :

28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W 1

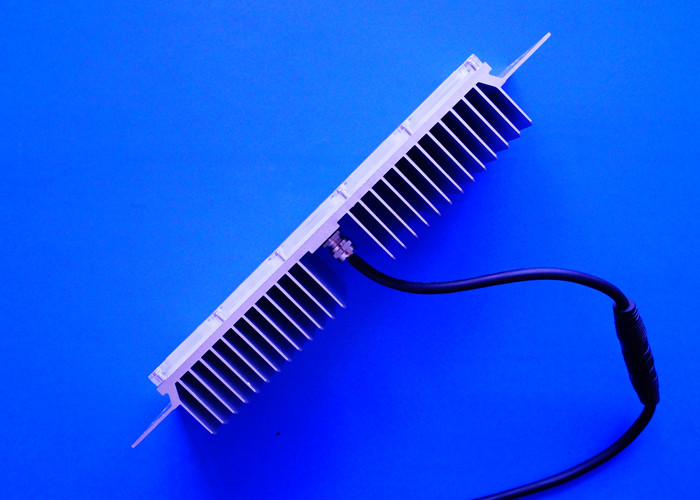

Light distribution :

28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W 2







Package :



20sets/carton ,14kg ,55*33*21cm each pcs with bubble package to protect it well

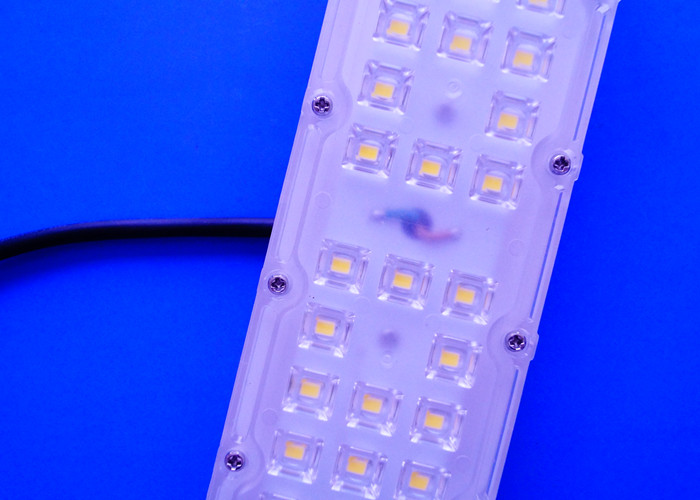

28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W 3



Application :

Led Street light ,high way lamp ,tunnel light ,parking light etc .

28 Points 5050 Led Light Module 2 Series 14 Parallel PCB Circuit For Street Light 30W 50W 60W 4







FAQ



Q1. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q2. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
