|Product Name:||High Efficiency Highway Lighting Module 50w 135lm/w 3030SMD 2D LED 60 Degree||Model No.:||SUN-SL72-3030-60|
|Beam Angle:||60 Degree||LENS Size:||250x74x6.15mm|
|Material:||Optical Grade PC||LED CHIP:||3030 SMD LED, 140-150lm/w@ 150mA,6v|
|Tranmittance:||91%||Application:||High Bay Light/Street Light|
|Kit:||Gasket And Lens+PCB+ 3030SMD LED+Heat Sink||PCB Size:||226x57.9x1.5mm|
|Circuit:||8 Series 9 Parallel||Heat Sink Size:||300x70x40mm|
led lighting module,
street light led retrofit

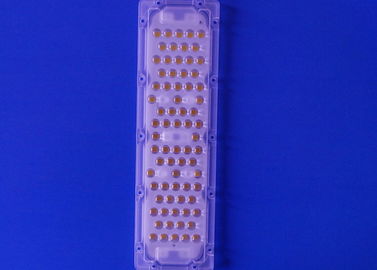

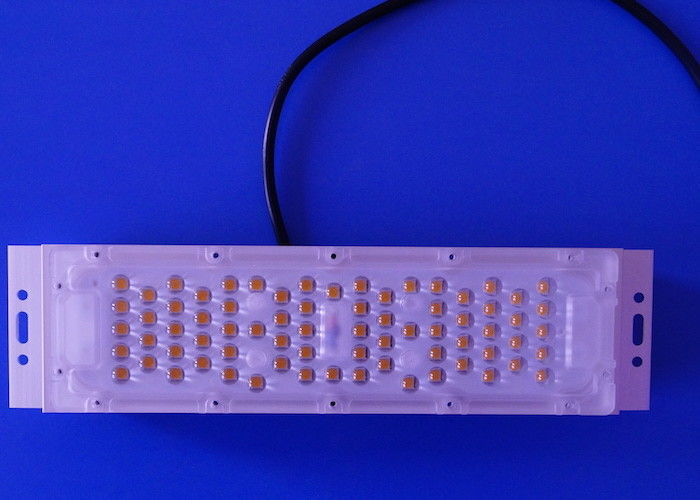

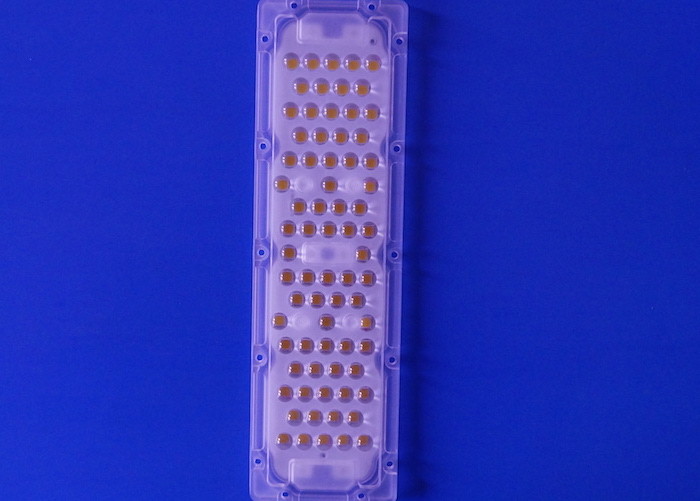

High efficiency highway lighting module 50w 135lm/w 3030SMD 2D LED 60 Degree
We can according your require to open new the Circuit for different solution.
Main Application : highway lighting, urban trunk roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and
other places of street lighting .
Product Feature :
1) High energy-saving: module luminous efficiency 120-180lm/W, exceeding 50% of ordinary LED street light
2) Environmental protection: No harmful substances that affect the environment such as lead and mercury, and no radiation harmful to human health such as ultraviolet rays and infrared rays, no adverse glare to ordinary street lamps, and no light pollution to the surrounding environment.
3) Long service life: The server life is 5-8 times that of traditional lamps of the same type, saving maintenance costs.
4) Efficient and stable: no start-up delay, constant current drive, no influence from grid fluctuations, no flicker.
5) Easy to install and disassemble: just fix the lamp body on the lamp body at the installation position, and remove the module by loosening the screws during maintenance.
6) High safety: The external voltage of the module is a safe voltage, which effectively prevents the risk of electric shock leakage.
7) High-performance light distribution scheme: The use of ultra-high-order free-form surfaces for uniform brightness streetlight lenses further enhances brightness and illuminance uniformity and geometric utilization under the premise of meeting the light distribution requirements of road lighting design standards.
8) The module can be plug-in and plug-in design, easy maintenance, assembly, spare parts, and convenient stocking.
|1, Product Name||High efficiency highway lighting module 50w 135lm/w 3030SMD 2D LED 60 Degree|
|2, Model No||SUN-SL72-3030-60|

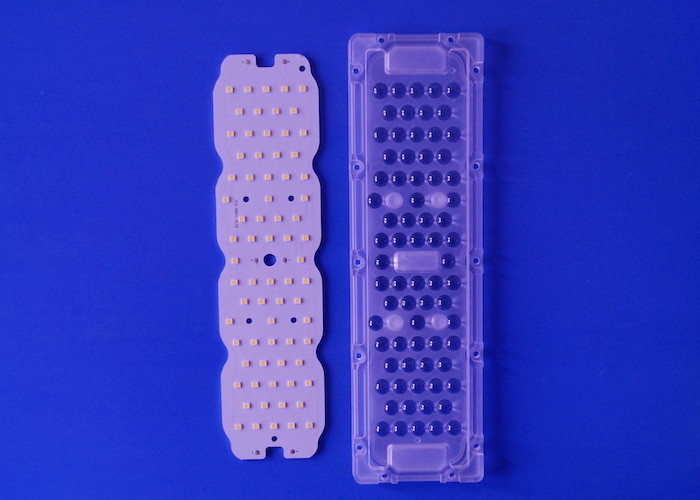

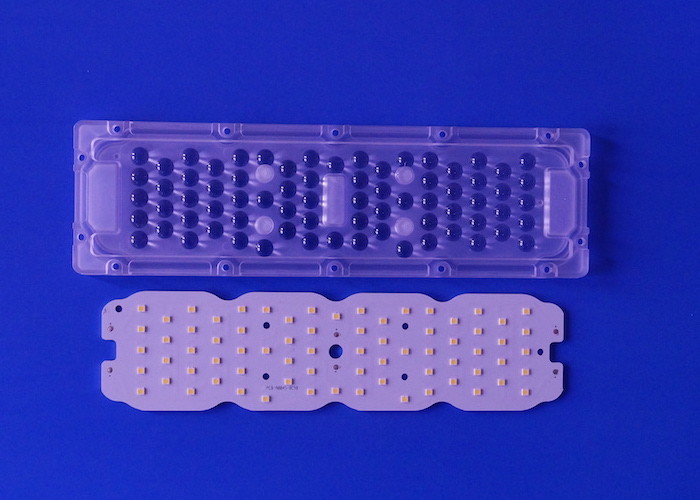

|3, Main parts||Array lens , silicon gasket+PCB+LED+HEAT SINK|
|4, Lens Material||PC|
|5, Lens size||250X74MM|
|7,LEDS||3030 SMD LED, 140-150lm@ 150mA,6v|
|8, Sample||3-4 work day|
|9, Delivery||5-7 work days for 10000 sets|
|10, Angle||60 degree|
|11, Quality guarantee||If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.|
|12, Main market||Europe, South America,North America, Asia|
Shipping and delivery time:
|DHL/UPS/TNT/FEDEX||4-5 working days|
|EMS||10-15 working days|
|HK Post Air Mail Register||15-18 working days|
|Delivery time||3-4 working days|
LENS Dimensions :
