72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving

led light replacements

led lighting module

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-SL72-3030-90

Contact Us

Request A Quote
Product Details
Product Name:
72 LED Points 30w 40w 50w 60w SMD Urban Trunk Roads Lighting SKD In China
Model No.:
SUN-SL72-3030-90
Beam Angle:
90 Degree
LENS Size:
250x74x6.15mm
Material:
Optical Grade PC
LED CHIP:
3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance:
91%
Application:
High Bay Light/Street Light
Kit:
Gasket And Lens+PCB+ 3030SMD LED+Heat Sink
PCB Size:
226x57.9x1.5mm
Circuit:
8 Series 9 Parallel
Heat Sink Size:
300x70x40mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

72 LED points 30w 40w 50w 60w SMD Urban trunk roads Lighting SKD in China

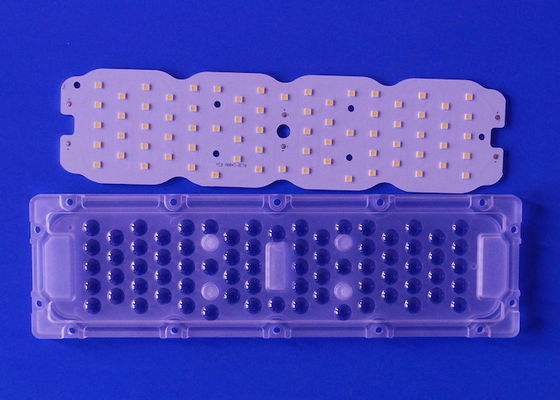

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving 0

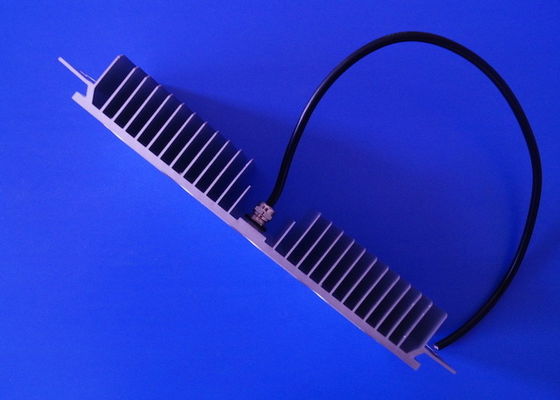

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving 1

We can according your require to open new  the Circuit for different solution.


Main Application : highway lighting, urban trunk roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and
other places of street lighting .



Product Feature :

  1. 1) High energy-saving: module luminous efficiency 120-180lm/W, exceeding 50% of ordinary LED street light

  2. 2) Environmental protection: No harmful substances that affect the environment such as lead and mercury, and no radiation harmful to human health such as ultraviolet rays and infrared rays, no adverse glare to ordinary street lamps, and no light pollution to the surrounding environment.

  3. 3) Long service life: The server life is 5-8 times that of traditional lamps of the same type, saving maintenance costs.

  4. 4) Efficient and stable: no start-up delay, constant current drive, no influence from grid fluctuations, no flicker.

  5. 5) Easy to install and disassemble: just fix the lamp body on the lamp body at the installation position, and remove the module by loosening the screws during maintenance.

  6. 6) High safety: The external voltage of the module is a safe voltage, which effectively prevents the risk of electric shock leakage.

  7. 7) High-performance light distribution scheme: The use of ultra-high-order free-form surfaces for uniform brightness streetlight lenses further enhances brightness and illuminance uniformity and geometric utilization under the premise of meeting the light distribution requirements of road lighting design standards.

  8. 8) The module can be plug-in and plug-in design, easy maintenance, assembly, spare parts, and convenient stocking.


Specifications:

1, Product Name

High efficiency highway lighting module 50w 135lm/w 3030SMD 2D LED 60 Degree

2, Model No

SUN-SL72-3030-60

3, Main parts

 Array lens , silicon gasket+PCB+LED+HEAT SINK

4, Lens Material

PC

5, Lens size

250X74MM

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

60 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



Light distribution:

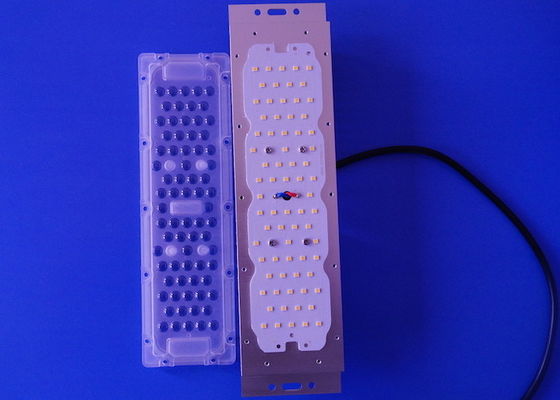

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving 2


LENS Dimensions :

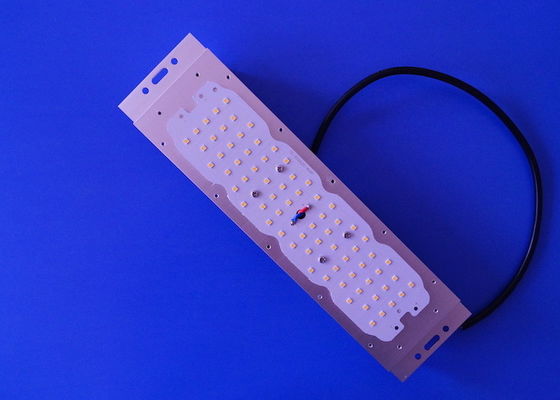

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving 3

Gasket size:

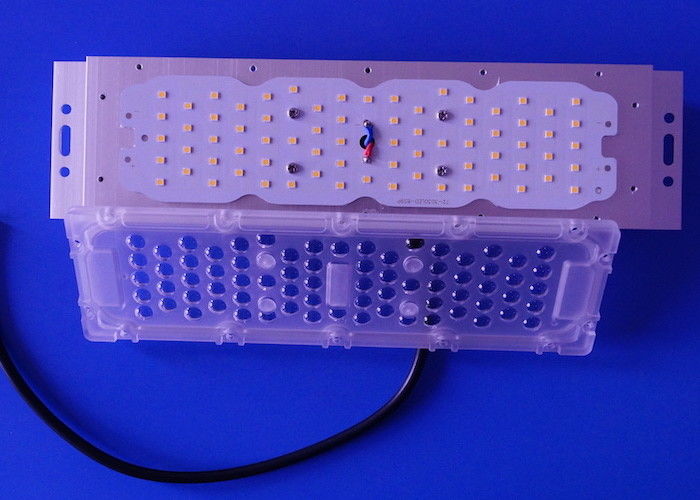

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving 4
PCB size:

72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving 5
 72 LED Points Led Light Engine Module SMD Urban Trunk Roads Lighting SKD Energy Saving 6
