100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink

Large Image : 100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	SunshineOpto
Certification:	ROHS
Model Number:	SUN-L236x140-3030-70x140

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	need to negotiation
Packaging Details:	cartons
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	5000 pcs per month

Contact Now

Detailed Product Description

Model No::	SUN-L236x140-144-3030	Lens Size::	236x140mm
Lens Angle::	70x140 Degree	Wick::	144 Leds
Material::	PC	Transmittance::	92%
Match Led::	Smd 3030	PCB Size:	221x125x1.5 Mm
PCB Circuit:	8 Series 18 Parallel

100W 144points 3030 led Street Light Module With Heat Sink

Model No.:	SUN-LD236x140-144-3030
Angle:	70x140 degree
Lens Size:	236x140 mm
PCB Size:	221x125x1.5 mm
Lens Material:	Optical grade PC
Circuit:	8 series 18 parallel DC 48V
LED:	144pcs 3030 Leds
Kits:	led lens with gasket, led boards, heat sink, screws
Luminous Efficiency:	140lm-160lm/watt , 100watt

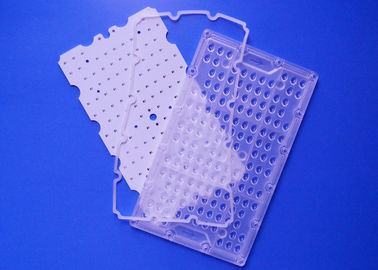

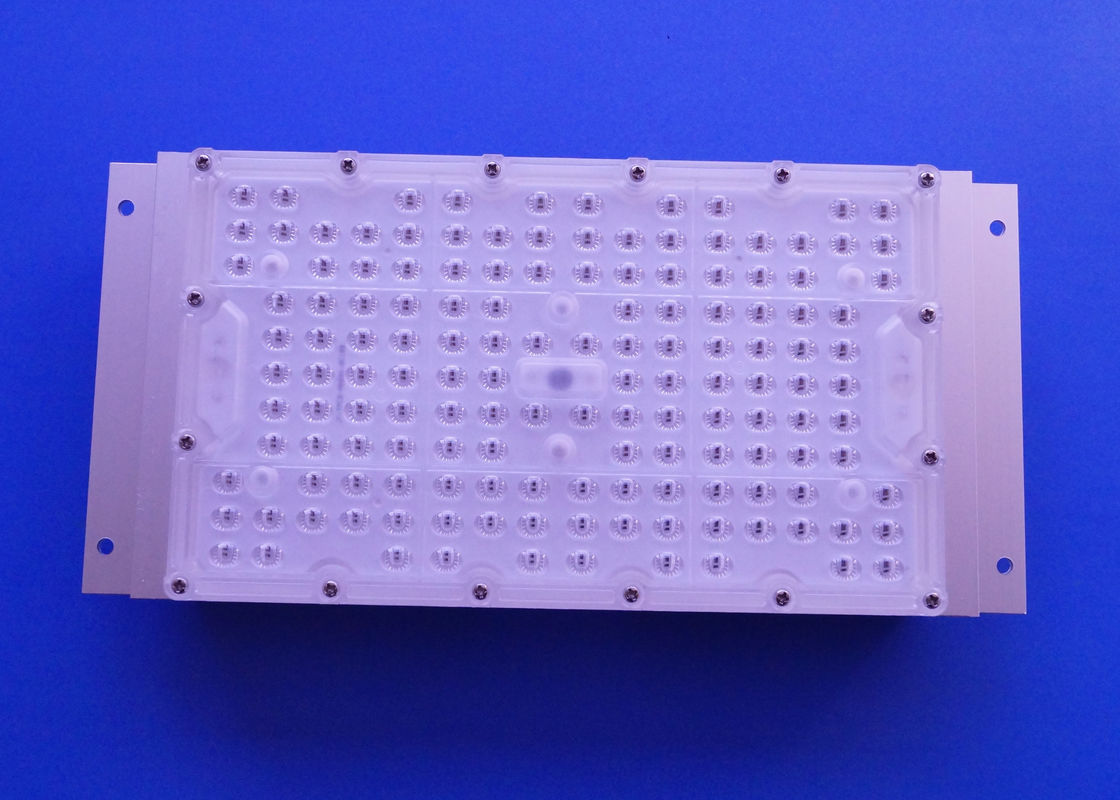

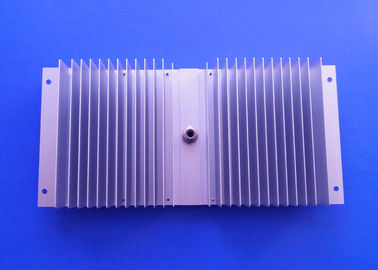

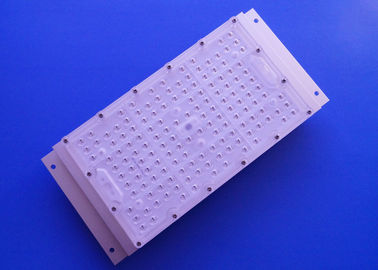

product picture:

Feature:

1, This module, we use 3030 2D square Les leds, the whole module luminous can reach 140-160lm/watt.
2, One module can support 100watt power, whole module size 300x140x40mm,
3, It's more cheaper than XTE/XPG, 5050 Led module, but also high luminous.
4, we provide 2 years warranty.

Lens drawing:

PCB Drawing:

Lens angle: 70x140 degree

Application: Led street light, led high way lamp,
