Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	SunshineOpto
Certification:	SGS/ROHS
Model Number:	SUN-SL130x130-5050

Minimum Order Quantity:	20
Price:	need to negotiation
Packaging Details:	20 sets/Carton .
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, MoneyGram,PayPal
Supply Ability:	5000 sets per Month

Get Best Price Contact Now

Detail Information

Product Kits:	Led Lens With Silicon Gasket , If You Need, We Can Also Provide PCB Welding Leds	Lens Size:	130*130mm
Lens Angle:	80x140 Degree	Match Leds:	30 Points 5050 Leds
PCB Size:	110.3x101x1.5mm	PCB Circuit:	2 Series 15 Parallel
Highlight:	Square Shape Led Light Module , 5050 Led Light Module , 130x130mm Led Light Module

Product Description

Square Shape 5050 led light module 30W 50W 100W with heat sink

30pcs 5050 Leds Working as 30w ,50w ,100w with high efficiency and bright luminous

Model No.:	SUN-SL130X130-30-5050
Lens angle:	30/60/90 degree for linear,flood light, 80X140 degree for street light
Lens size:	130x130x9.04mm
PCB size:	110.3x101x1.5mm
PCB Circuit:	2 series 15 parallel
Transmittance:	90-93%
Match Led:	30pcs 5050SMD LED

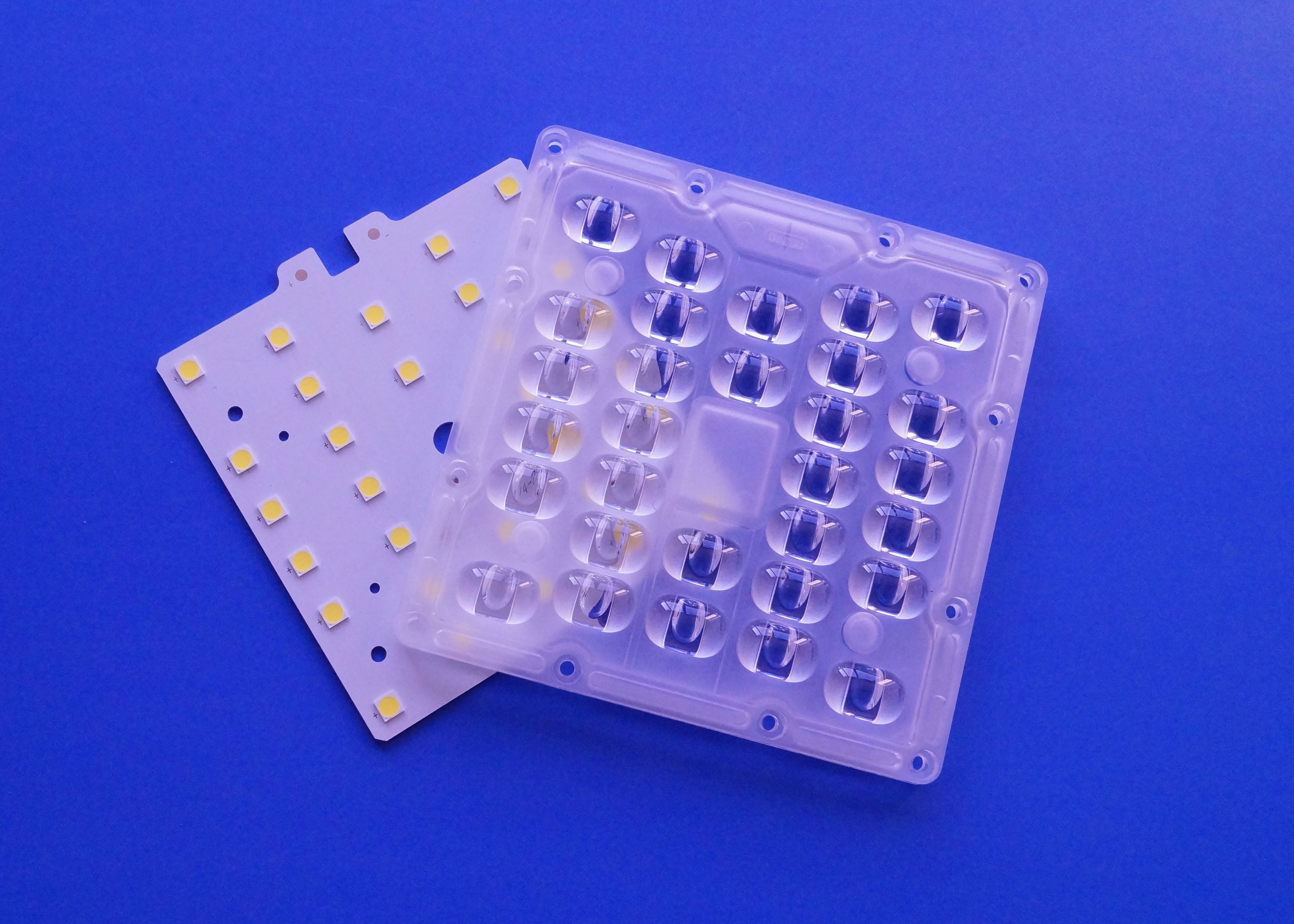

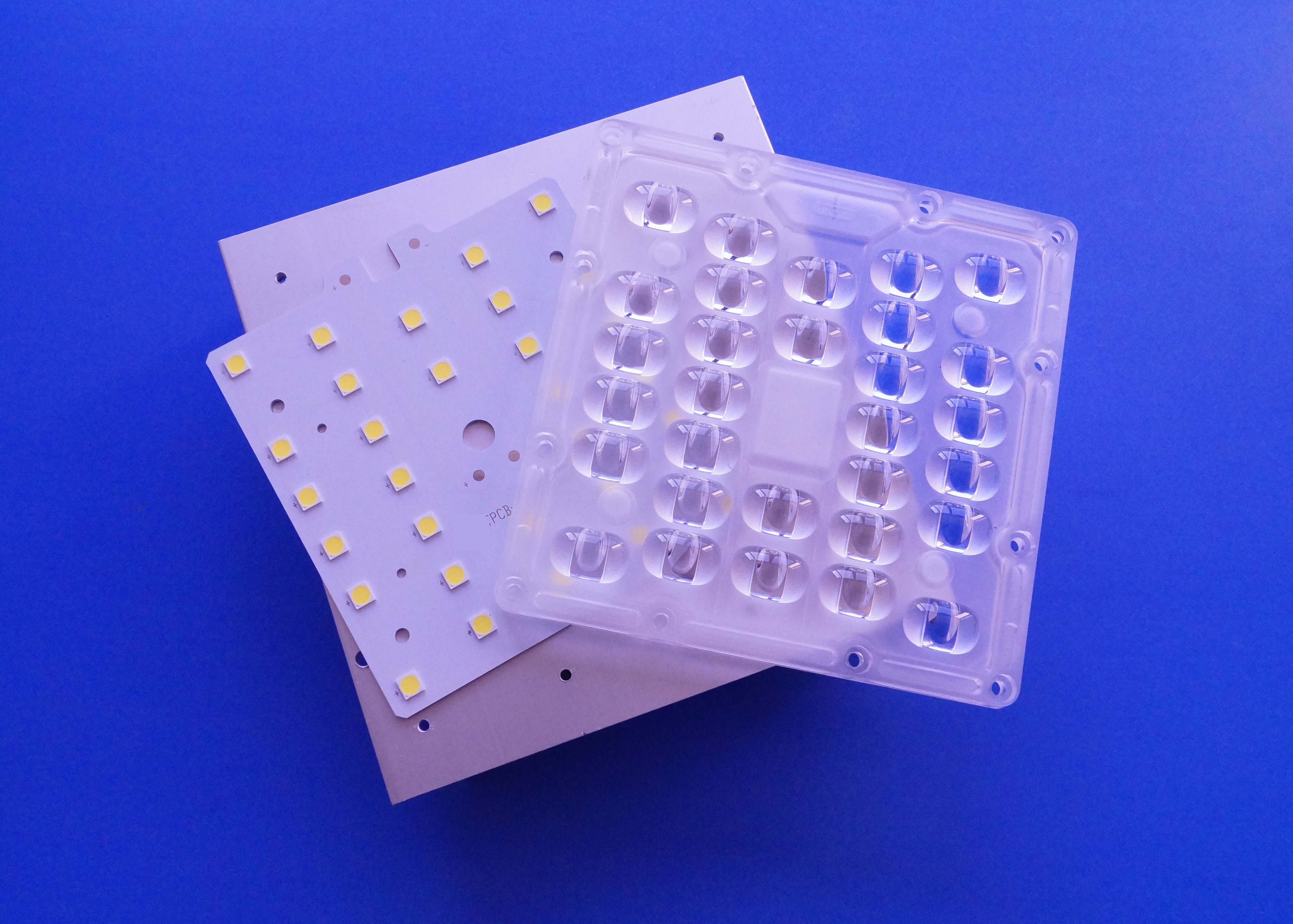

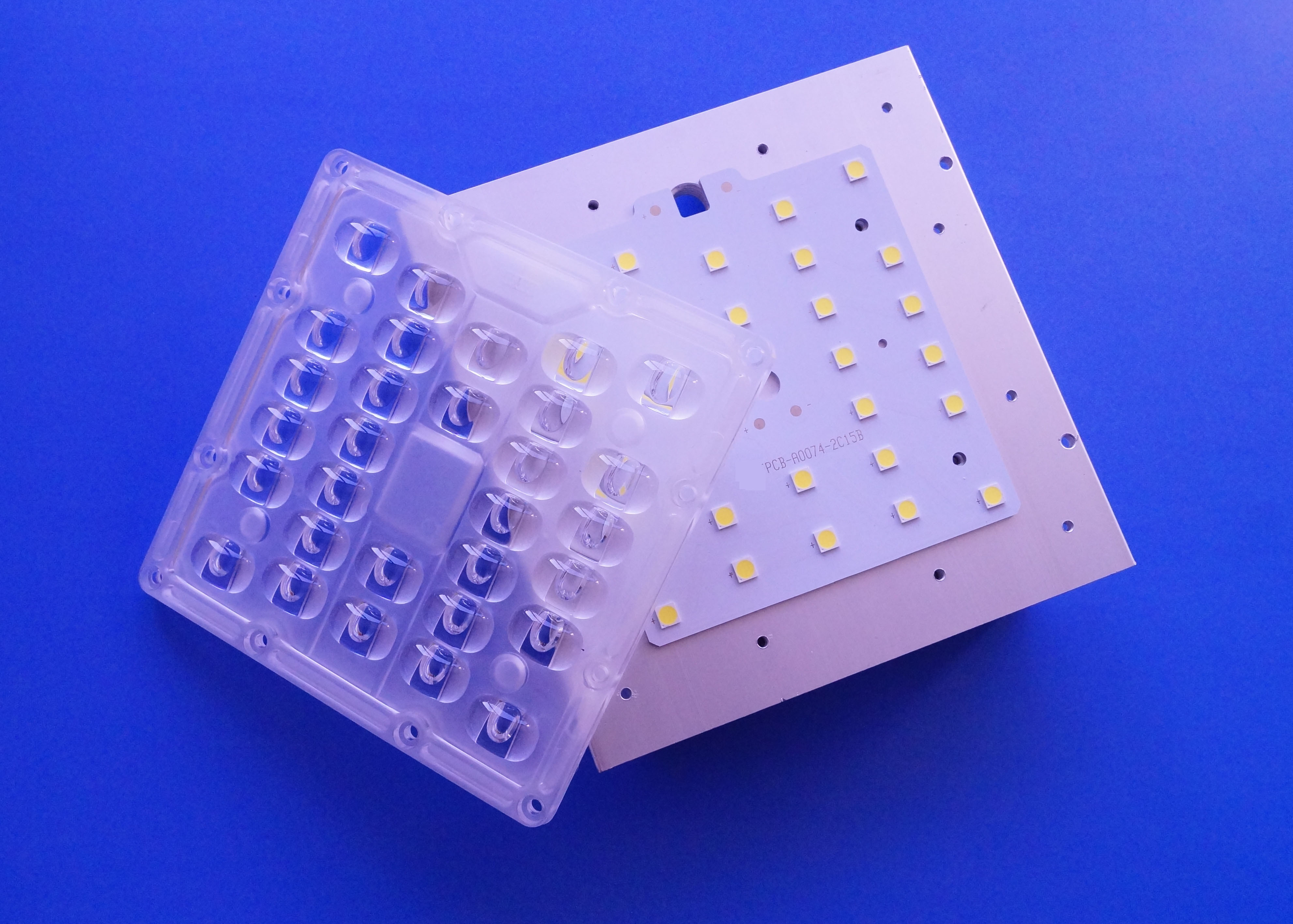

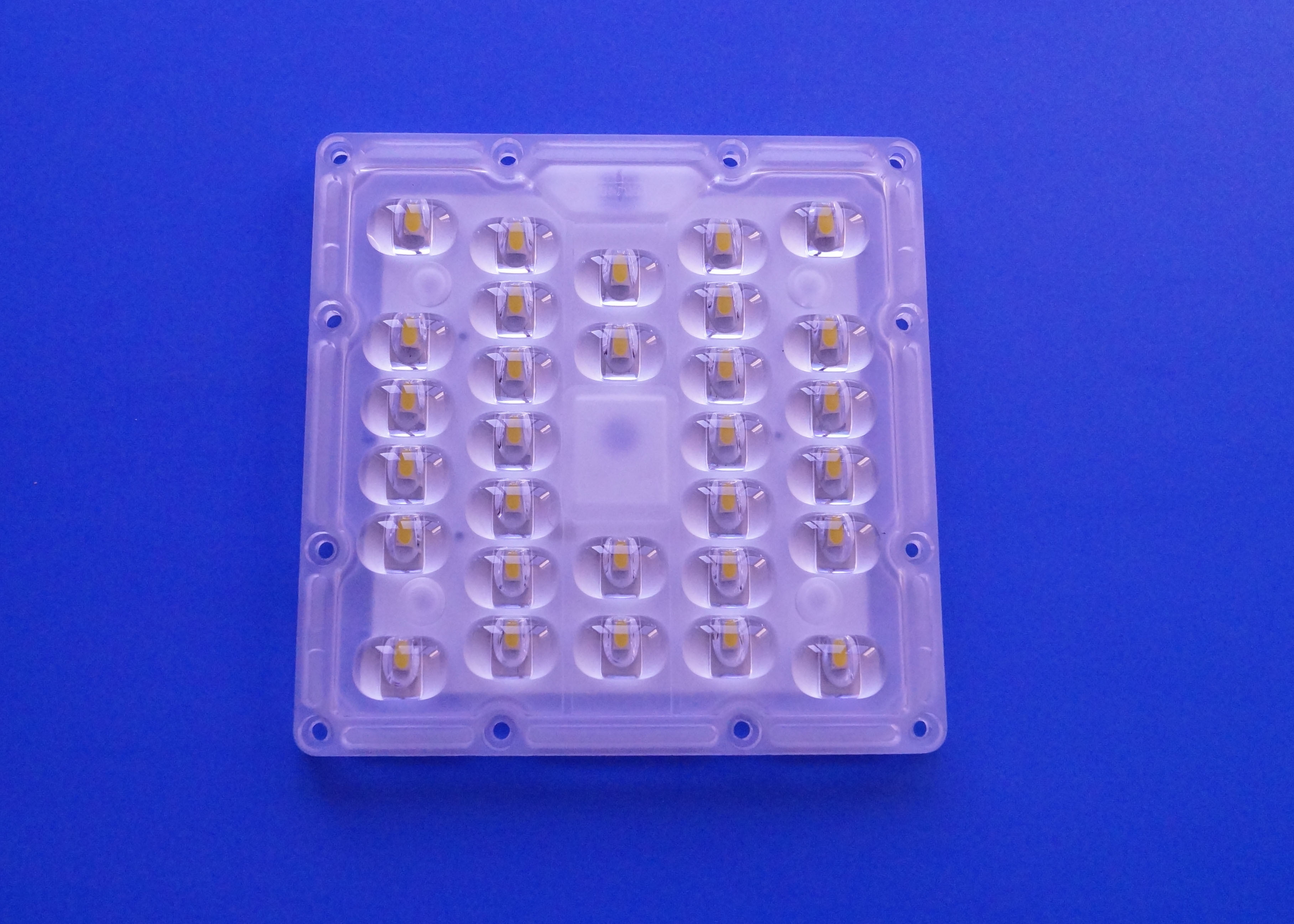

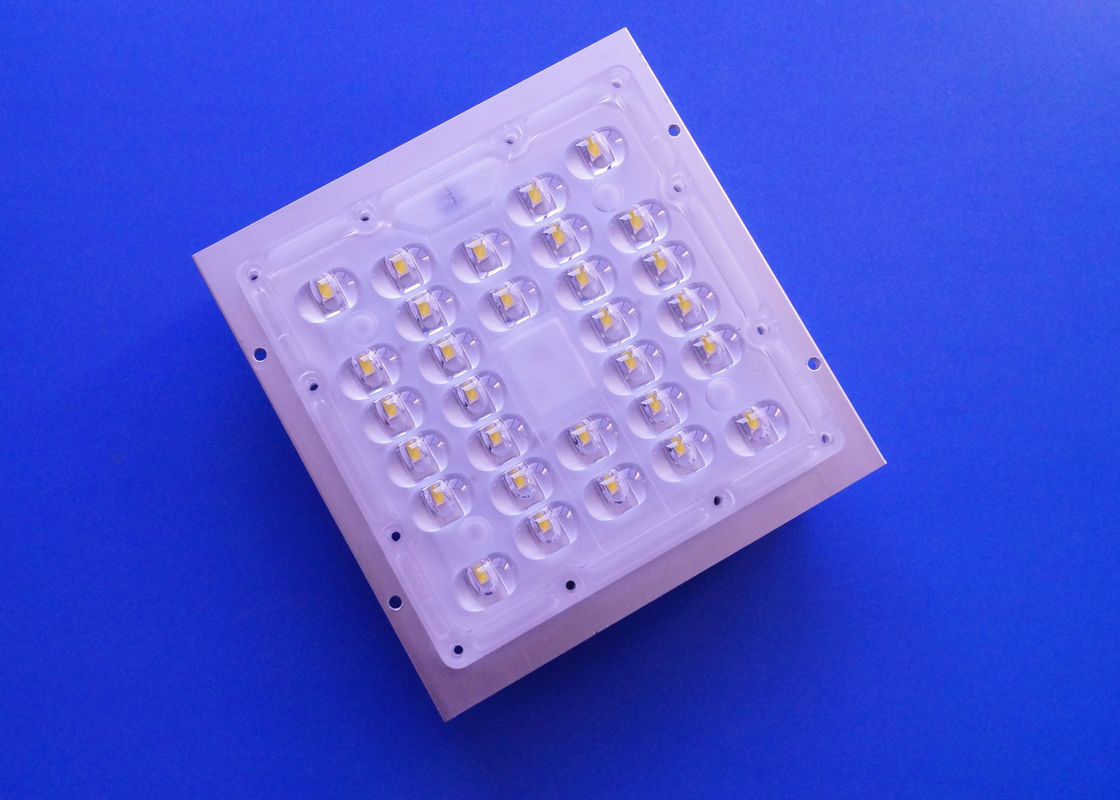

Product Pictures:

Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink 2

Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink 3

LENS drawing:

Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink 4

PCB drawing:

Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink 5

Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink 6

Light distribution:


30 degree	60 degree	90 degree	80x140 degree

Application:

30/60/90 degree for linear/ flood light,

Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink 11

80x140 degree for street light.

Square Shape 130x130mm SMD 5050 Led Light Module With Heat Sink 12
