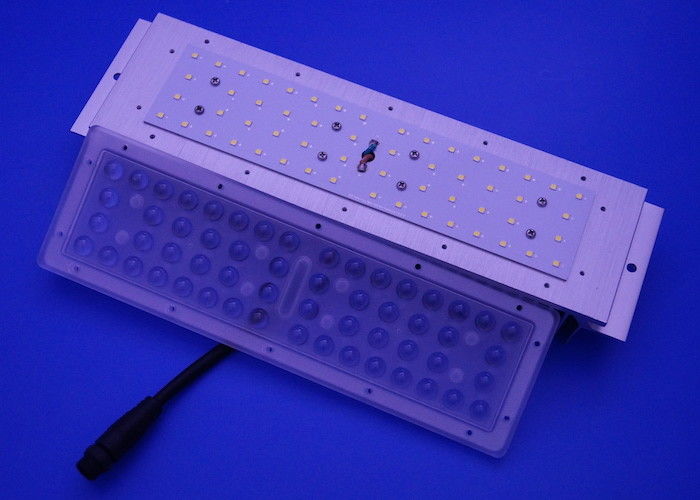

Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square

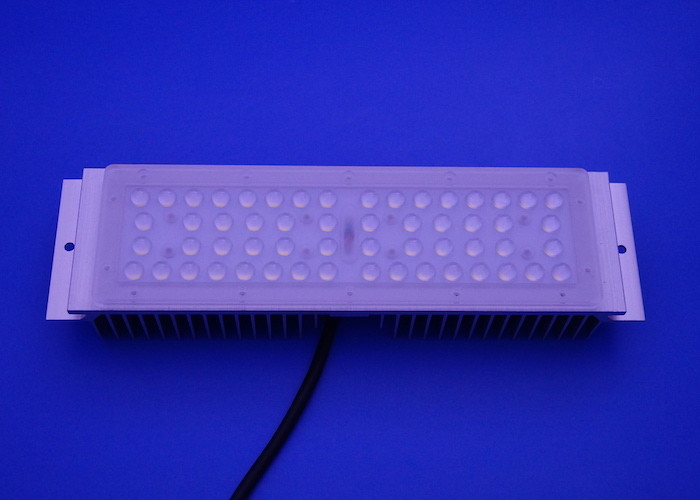

Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square

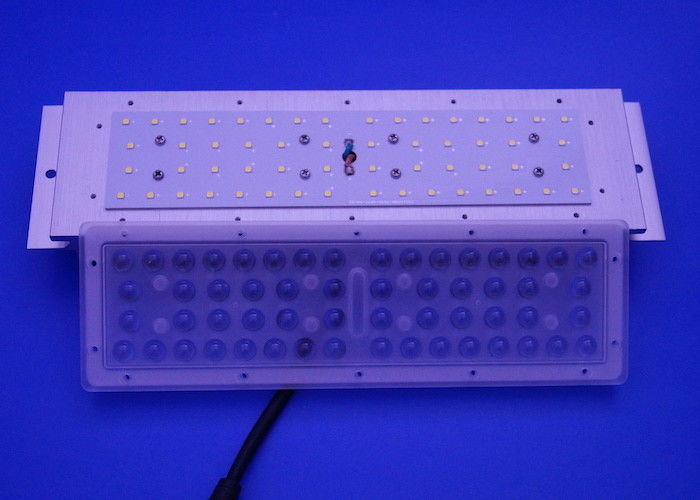

Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square

Large Image :  Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-SL56W-3030-30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/bag 0.2KG/SET
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 10000pcs/months
Detailed Product Description
Product Name: 30W 50W Square Led Lighting Module 3030 SMD 3535 SMD 30 Degree 60 Degree 90 Degree Lens Model No.: SUN-SL56W-3030-30
Beam Angle: 30 Degree PCB Size: 233X55x1.5mm
Circuit: 7 Series 8 Parallel LED CHIP: 1W 3030SMD LED
Material: Optical Grade PC Application: Street Light, High Bay Light, Tunnel Light, Area Light, Square Light And So On
High Light:

3535 SMD LED Lens

,

Small Footprint SMD LED Lens

,

Square Lens Waterproof Led Module

30W 50W Square led lighting module 3030 SMD 3535 SMD 30 Degree 60 Degree 90 Degree lens





Quick Detail:



Model No:SUN-SL56W-3030-30

Material: PC

Beam Angle : 30 degree

Lens size:256.6x78.6x7.1mm

Circuit: 7 series 8 parallel

Led chips: 3030SMD 1W LED 150-160LM/W

Lense array of 56 LEDs

Small footprint, high light output





Features :



  1. This SKD 56W LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 56W,112W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 30/60/90/30X70/60X90/145X70/80X155 degree etc.



Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





Specifications:



1, Product Name

30W 50W Square led lighting module 3030 SMD 3535 SMD 30 Degree 60 Degree 90 Degree lens

2, Model No

SUN-SL56W-3030-30

3, Main parts

Array lens, silicon gasket, PCB board with LED and Heat sink

4, Lens Material

PC

5,Size

256.6x78.6x7.1mm for lens/ 233x55x1.5mm for PCB Board;310.8x41.79x82.00mm For Heat sink.

6, Transmittance

93%

7,LEDS

3030SMD LED 1W

8, Sample

3-4 work day

9, Delivery

5-7 work days for 300 sets

10, Angle

30 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CNF

Sample availability

YES

Delivery time

3-4 working days





Competitive Advantage:



1). Using high quality for 3030SMD LED Series.

2). CE driver, very easy for repair/replacement
3). Higher lumen compared to similar models of others
4). Positive cooling technology
5). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
6). Industry-leading thermal management utilizing technology
7). Top quality with warranty of 2 years warranty
8). LM80 testing reports available



56W LENS Dimensions and Beam Pattern:

Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 0

30 Degree:



Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 1



60 Degree:

Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 2



90 Degree:



Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 3

90x120 Degree:

Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 4



60x90 Degree:



Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 5

30x70 Degree:

Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 6



70x145 Degree:



Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 7

80x155 Degree:



Small Footprint 3030 3535 SMD LED Lens 30 Degree PC Square 8
