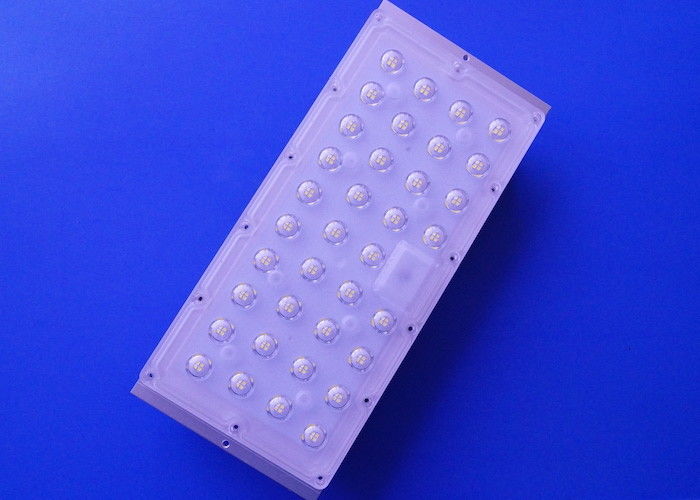

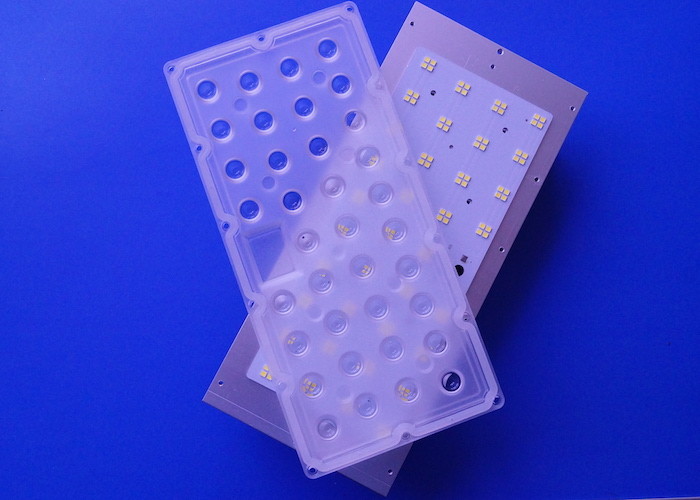

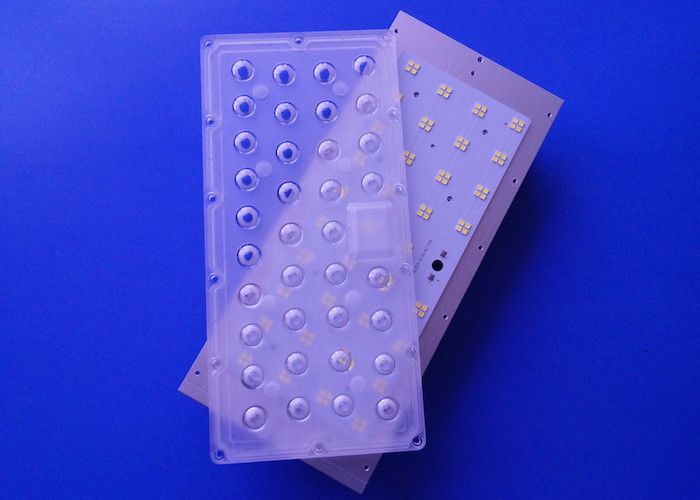

100W High Bay Square Lighting Module 150 Degree 144 Led Lens 91% Tranmittance

New product 100W High bay light Square lighting module 150 degree 144 led lens

Quick Detail:

Model No:SUN-LD253X120-36-150
Material: PC
Beam Angle : 150 degree
Lens size:253X120X10.6mm
PCB size:223X93X1.5mm

Heat sink:273x120x42mm
Circuit: 8 series 18 parallel
Match LED: 3030 SMD LED
Small footprint, high light output


Features :

1. This SKD 36 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 100W,110W  and so on .
2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3. Industry-leading thermal management utilizing technology
4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5. The LED retrofit kits contain no any mercury or lead.
6. Does not produce UV rays that harm people’s eyes.
7. Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree, 150 degree, 117x52 degree, 100x1400 degree, 181x51 degree.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:




Shipping and delivery time:




LENS Dimensions :

Beam pattern:



Rerated of lens:

Application:
