144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting

144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting

144 LED PC Lens

Warehouse Lighting LED PC Lens

Alumimum PCB Board LED Lens Array

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-LD253X120-36-90

Contact Us

Request A Quote
Product Details
Product Name:
36 X 4 Pcs 144 LED 3030SMD LED 100W 90 Degree PC Lens And Alumimum PCB Board For Warehouse Lighting
Model No.:
SUN-LD253X120-36-90
Beam Angle:
90 Degree
LENS Size:
253X120X10.6MM
Material:
Optical Grade PC
LED CHIP:
3030 SMD LED,6V 150mA
Tranmittance:
91%
Application:
High Bay Light/Street Light/Square Lighting/Projection Lam And So On
PCB Size:
223X93X1.5MM
Circuit For PCB Board:
8 Series 18 Parallel
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

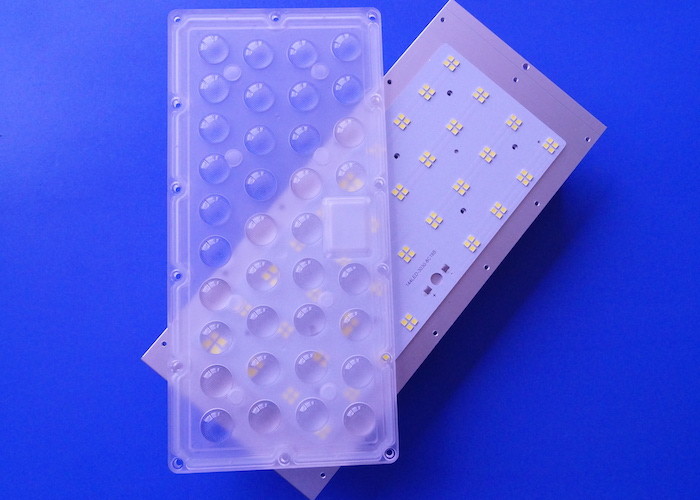

36 X 4 pcs 144 LED 3030SMD LED 100W 90 degree PC lens and Alumimum PCB board for Warehouse lighting









Quick Detail:

Model No:SUN-LD253X120-36-90
Material: PC
Beam Angle : 90 degree
Lens size:253X120X10.6mm
PCB size:223X93X1.5mm

Heat sink:273x120x42mm
Circuit: 8 series 18 parallel
Match LED: 3030 SMD LED
Small footprint, high light output


Features :

  1. This SKD 36 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 100W,110W  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree, 150 degree, 117x52 degree, 100x1400 degree, 181x51 degree.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

36 X 4 pcs 144 LED 3030SMD LED 100W 90 degree PC lens and Alumimum PCB board for Warehouse lighting

2, Model No

SUN-LD253X120-36-90

3, Main parts

36Array lens , silicon gasket+PCB+ 3030SMD LED+heat sink

4, Lens Material

PC

5, Lens size

253X120MM

6, Transmittance

91%

7,LEDS

3030 SMD,6V, 150mA

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

117X52 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days





144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 0



LENS Dimensions :



144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 1


Beam pattern:



144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 2


Rerated of lens:



144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 3



144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 4



144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 5



Application:



144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 6



144 LED PC Lens SMD3030 100W Alumimum PCB Board For Warehouse Lighting 7
