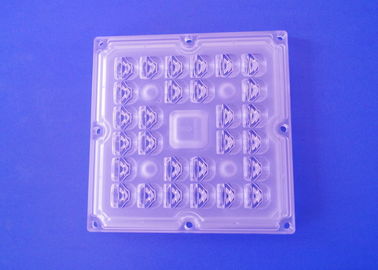

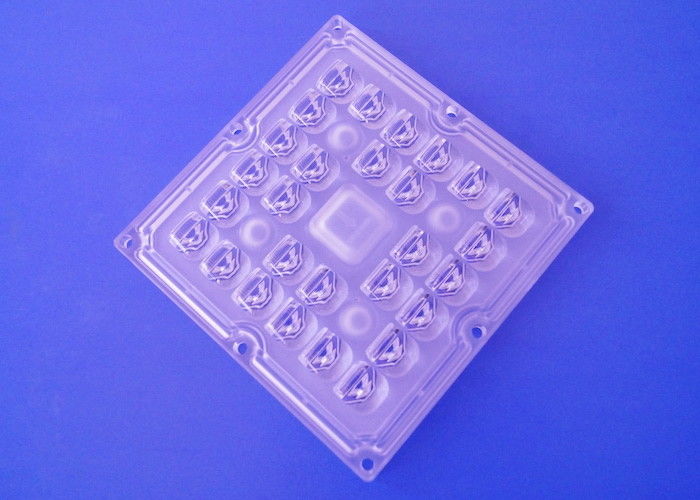

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w

Name: 3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w
Brand: Sunshine Opto-electronics Enterprise Co.,ltd
SKU: SUN-D100-28H1-100X60-TPIV-S
Price: 3.50 USD
Availability: InStock

Brand Name:	Sunshineopto
Model Number:	SUN-D100-28H1-100X60-TPIV-S
MOQ:	1
Delivery Time:	3-4 working days
Payment Terms:	T/T,PAYPAL,Western Union,Money Gram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS,ROHS

Product Name:

3535 SMD Array LED Lens 28 In 1 Square Module Lens For 30w - 50w

Model No.:

SUN-D100-28H1-100X60-TPIV-S

Beam Angle:

100X60 Degree

LENS Size:

100x100x8.5mm

Material:

Optical Grade PC

LED CHIP:

XTE2 XPG3 3535 SMD LED

Tranmittance:

91%

Application:

High Bay Light/Street Light/Square Lighting/Projection Lam And So On

PCB Size:

76x76x1.5mm

Circuit For PCB Board:

14 Series 2 Parallel

Packaging Details:

Cartons

Supply Ability:

5000pcs/months

Highlight:

multi lens array

led light array

Product Description

3535 SMD Array LED lens 28 in 1 square module lens for 30w - 50w

Quick Detail:

Model No:SUN-D100-28H1-100X60-TPIV-S
Material: PC
Beam Angle : 100X60 degree/ TPYE IV -S
Lens size:100X100X8.5mm
PCB size:76X76X1.5mm
Circuit:14 series 2 parallel
Match LED: 3535 SMD LED/ 3030SMD LED
Small footprint, high light output

Features :

This SKD 28 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 28-50W and so on .
It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.
Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree, 150 degree, 117x52 degree, 100x1400 degree, 181x51 degree.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name	3535 SMD Array LED lens 28 in 1 square module lens for 30w - 50w
2, Model No	SUN-D100-28H1-100X60-TPIV-S
3, Main parts	28 Array lens , silicon gasket+PCB+ XTE/XPG 3535 SMD LED
4, Lens Material	PC
5, Lens size	100X100X8.5MM
6, Transmittance	91%
7,LEDS	3535 SMD LED 3V, 1-5W
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	100X60 degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample availability	YES
Delivery time	3-4 working days

LENS Dimensions :

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w 0

Beam pattern:

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w 1

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w 2

Rerated of lens:

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w 3

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w 4

Application:

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w 5
