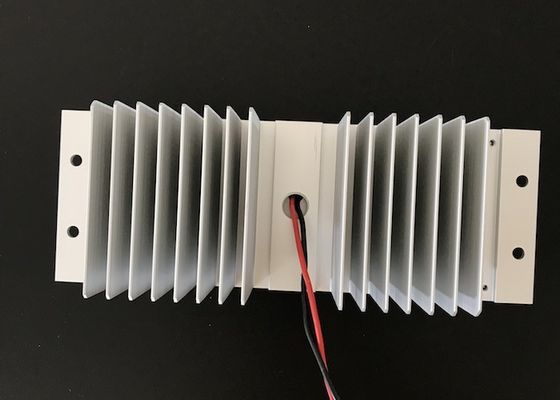

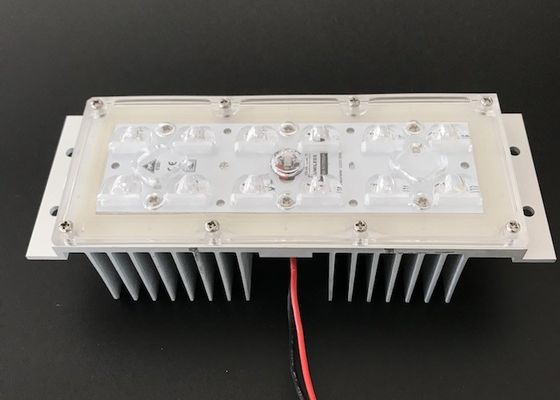

173mm Lens 20W 25W 30W 12Leds SMD5050 LED Light Module
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 173mm Lens Series 20W 25W 30W 12 LED 5050SMD Module With Heatsink 200x72x40mm | Model No. | SUN-LD2X6CR145x70-TPIII-M-V |
|---|---|---|---|
| Beam Angle | 145x70 Degree | LENS Size | 173X71.4X7.51MM |
| PCB Size | 145X47X1.5mm | Circuit | 2 SERIES 6 PARALLEL/12 Led In Parallel |
| LED CHIP | 5050SMD LED 24V 160mA | Material | Optical Grade PC |
| TYPE | Type III-M | CRI | 70/80 |
| Highlight | SMD5050 LED Light Module,173mm Lens LED Light Module,30W 12Leds Light Module |
||
Product Description
173mm lens series 20W 25W 30W 12 LED 5050SMD Module with Heatsink 200x72x40mm
Quick Detail:
Model No:SUN-LD2X6CR145x70-TPIII-M-V
Material: PC
Beam Angle : 145X70 degree
Lens size:173X71.4X7.51mm
Circuit: 2 series 6 parallel / 12 LED in parallel
Led chips:5050SMD LED 24V

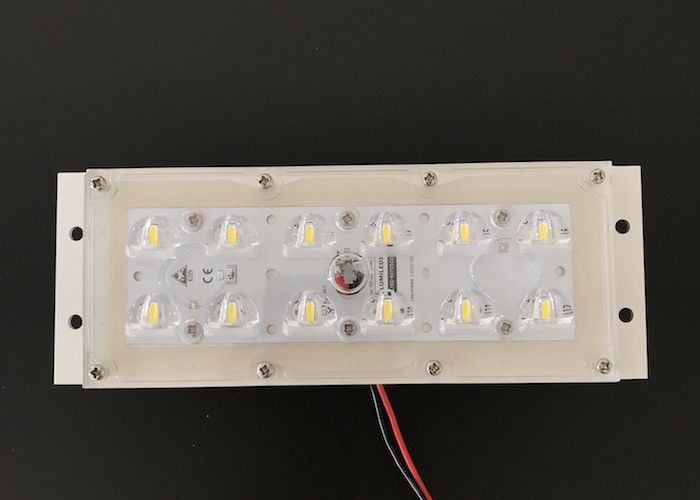

Lense array of 12 LEDs
Small footprint, high light output
Features :
- This SKD 12 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,50W,60W and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like
129X55degree ,60X60 degree ,12 degree ,30X90 degree ,30degree ,90 degree etc.
.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
173mm lens series 20W 25W 30W 12 LED 5050SMD Module with Heatsink 200x72x40mm |
|
2, Model No |
SUN-LD2X6CR145x70-TPIII-M-V |
|
3, Main parts |
12 Array lens , silicon gasket+PCB +heatsink |
|
4, Lens Material |
PC |
|
5, Lens size |
173X71.4X7.51mm |
|
6, Transmittance |
93% |
|
7,LEDS |
5050SMD 1-5W 24V LED |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 300 sets |
|
10, Angle |
145x70 degree, TYPE3-M |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
2x6 LENS Dimensions And Beam pattern:

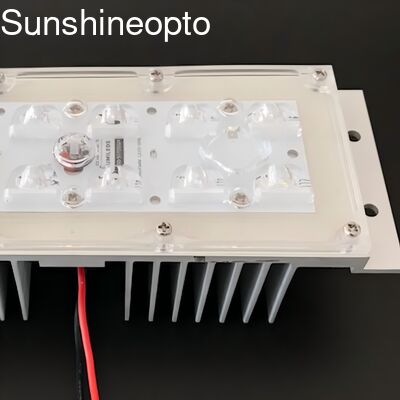

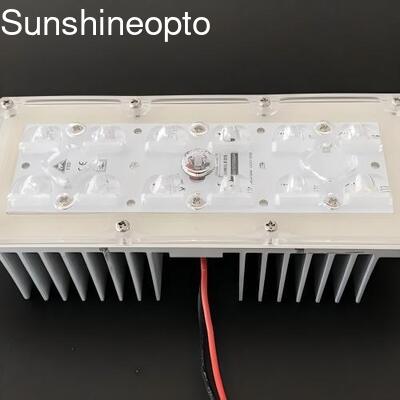

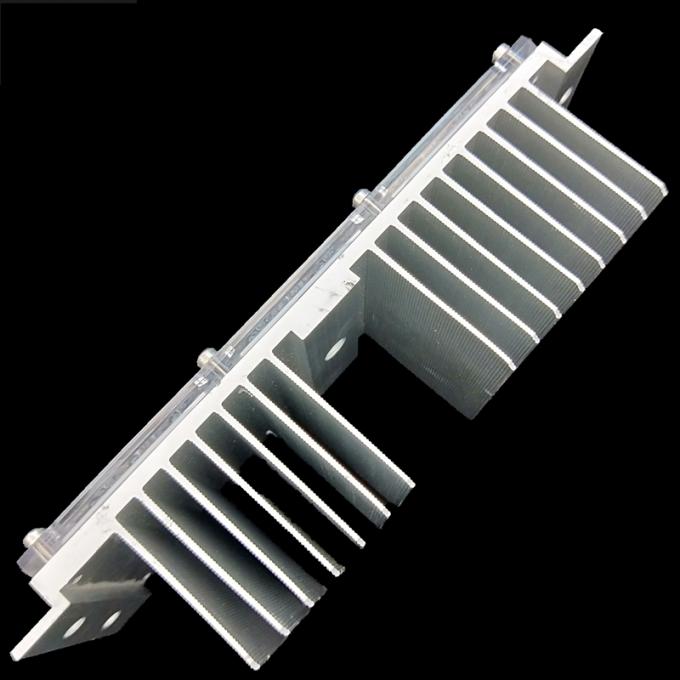

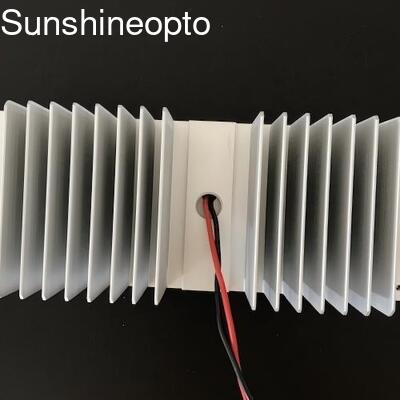

LED module with heat sink:
