84 LED 60 Degree SMD3030 LED Street Light Module 140lm Per Watt Efficiency PC Lens
  • name
  • name
  • name
  • name

84 LED 60 Degree SMD3030 LED Street Light Module 140lm Per Watt Efficiency PC Lens

Brand Name: Sunshineopto
Model Number: SUN-D252-84H1-60-TP
MOQ: 1
Price: negotiate
Packaging Details: cartons
Payment Terms: T/T,PAYPAL,Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS,RoHS,CE
Output Voltage:
42V Output, 6V For Each Led
Lens Size:
252x70x10.6mm
PCB Size:
239x45x1.5mm
Beam Angle:
60 Degree
Circuit:
7 Series 12 Parallel
Other Angle:
15/40/30x70/49x21/136x78 Degree , Vertical 136x78 Degree Lens
Supply Ability:
3000pcs/month
Highlight:

SMD3030 LED Street Light Components

,

140lm/w LED Street Light Components

,

84LED Squares Lighting SKD

Product Description

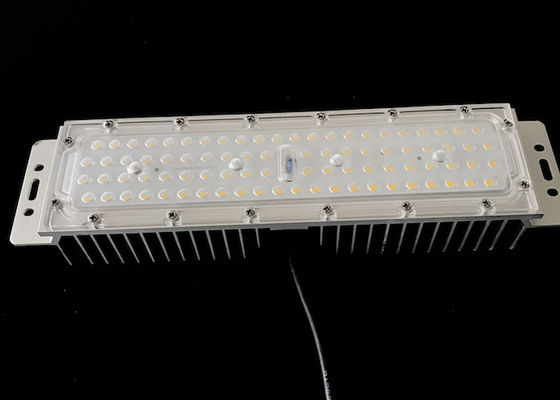

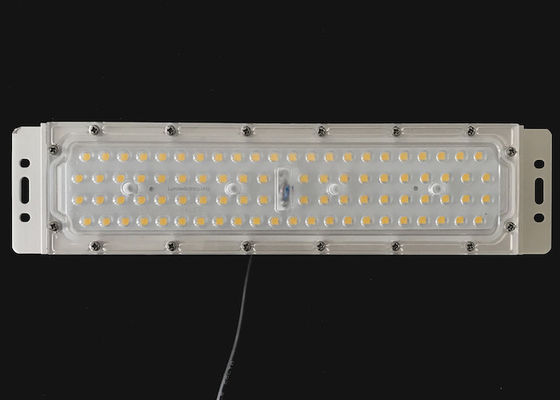

84 LED 60 Degree SMD3030 LED Street Light Module with 140lm/w Efficiency and PC Lens
Product Overview
SUN-D252-84H1-60-TP is a high‑efficiency LED street light module integrating 84 pieces of SMD3030 mid‑power LEDs with a 60 degree professional PC street light lens, achieving around 140 lm/W system efficacy and targeting 50 W street and area lighting luminaires. The module combines aluminum PCB, LEDs and PC lens in one unit, ready to be mounted on a heatsink, which significantly reduces development time for luminaire manufacturers and contractors in both new installations and retrofit projects.
Product Specifications
Model No. SUN-D252-84H1-60-TP
Power 50-70W
Lumen Value 130-140lm/w
PCB Board Size 239x45x1.5mm
Lens Size 252x70mm
Heatsink Size 300x70x40mm 50W Max
Beam Angle 60 degree
Alternative Angles 15/40/90/30x70/49x21/136x78 degree, Vertical 136x78 degree lens
Circuit Configuration 7 series 12 parallel (customizable)
Lens Material PC
LED Chip 1W Ph3030 SMD 6V white color 3000-6500K
Transmittance 93%
Quality Guarantee If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund
Main Markets Europe, South America, North America, Asia
Key Features
  • Optimized for 50-70W power lamps per module
  • Lowest total cost solution for retrofitting Metal Halide or HPS bulbs
  • Industry-leading thermal management technology
  • Operating temperature range: -35°C to +70°C
  • Mercury and lead-free construction
  • Reusable existing housings for significant cost reduction
  • High-quality 3030SMD LED Series components
  • CE certified drivers for easy repair/replacement
  • Higher lumen output compared to similar models
  • Positive cooling technology
  • 90% energy cost reduction vs traditional lamps
  • 90% maintenance cost reduction
  • Industry-leading thermal management
  • 2-year warranty with LM80 testing reports available
Lens Size Drawing
60 Degree Lens Dimensions and Beam Pattern Diagram
Applications
  • Urban and rural road LED street lighting
  • Industrial parks, factory access roads and logistics centers
  • Solar street lights, garden and landscape pathway lights
  • Parking lots, campuses, residential communities and parks
  • Retrofit of traditional HPS/MH street lights to LED

Shipping&Delivery Informations

Shipping Method Delivery Time
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB, EXW, CIF, CNF
Sample Availability Yes
Standard Delivery Time 3-4 working days
