2x6 12 LED 5050SMD 20W 30W Street light module with heatsink 200x72x40mm
Quick Detail:
Model No:SUN-LD2X6CR145x70-TPIII-M-V
Material: PC
Beam Angle : 145X70 degree
Lens size:173X71.4X7.51mm
Heatsink size:200x72x40mm (20-30w)
Circuit: 2 series 6 parallel 48v output / 12 LED in parallel 24v output
Led chips:5050SMD LED 24V white color, 3000-6500k
Lense array of 12 LEDs
Small footprint, high light output
Features :
129X55degree ,60X60 degree ,12 degree ,30X90 degree ,30degree ,90 degree,60 degree, 145x53 degree,150x80 degree,157x57 degree,160x63 degree, 157x81 degree, etc.
.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
1, Product Name |
2x6 12 LED 5050SMD 20W 30W Street light module with heatsink 200x72x40mm |
2, Model No |
SUN-LD2X6CR145x70-TPIII-M-V |
3, Main parts |
12 Array lens , silicon gasket+PCB +heatsink |
4, Lens Material |
PC |
5, Lens size |
173X71.4X7.51mm |
6, Transmittance |
93% |
7,LEDS |
5050SMD 1-5W 24V LED |
8, Sample |
3-4 work day |
9, Delivery |
5-7 work days for 300 sets |
10, Angle |
145x70 degree, TYPE3-M |
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
12, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
DHL/UPS/TNT/FEDEX |
4-5 working days |
EMS |
10-15 working days |
HK Post Air Mail Register |
15-18 working days |
Trade Terms |
FOB|EXW|CIF|CFR |
Sample availability |
YES |
Delivery time |
3-4 working days |
2x6 LENS Dimensions And Beam pattern:

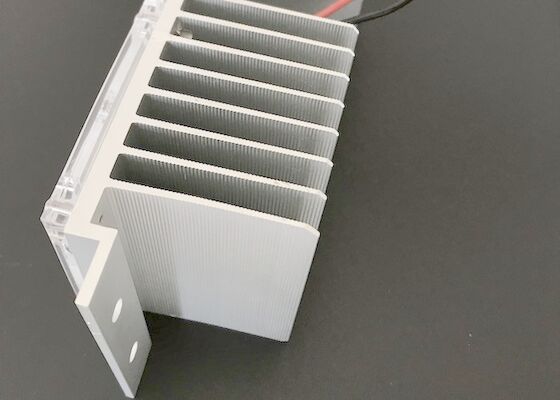

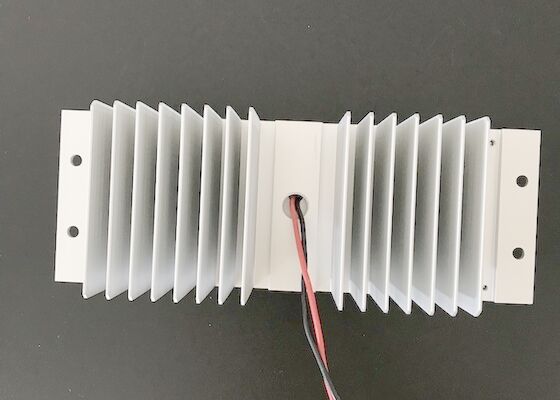

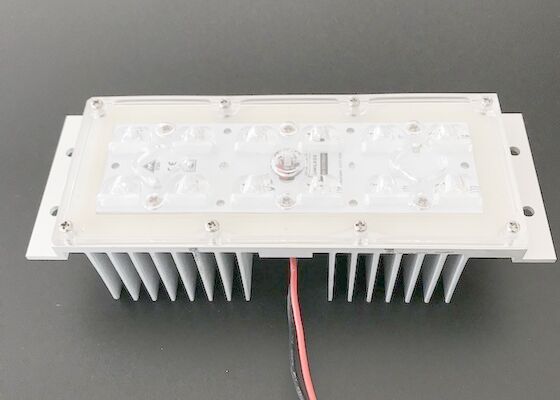

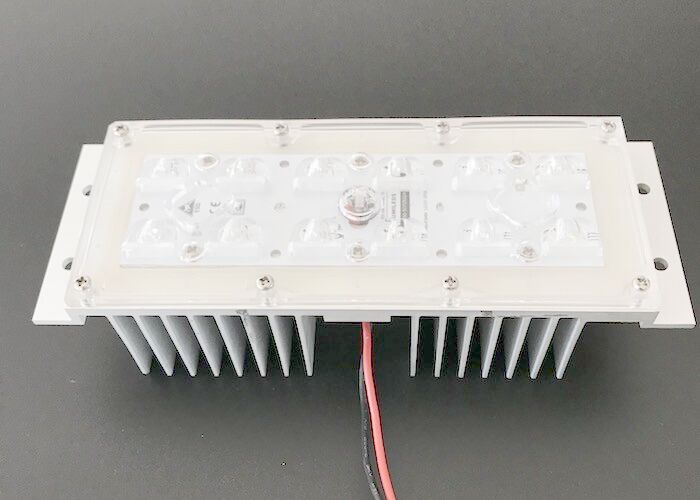

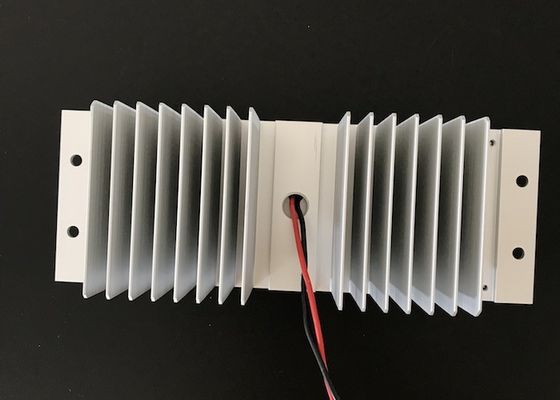

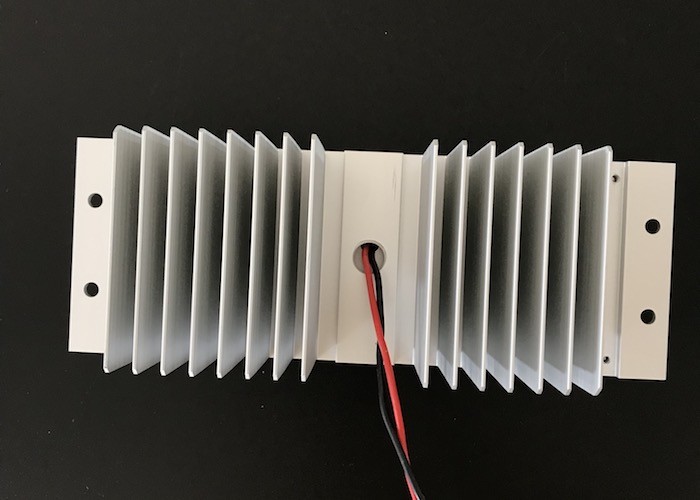

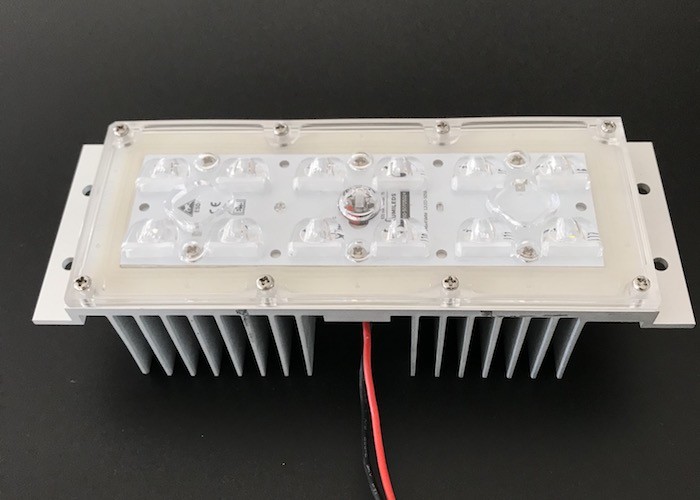

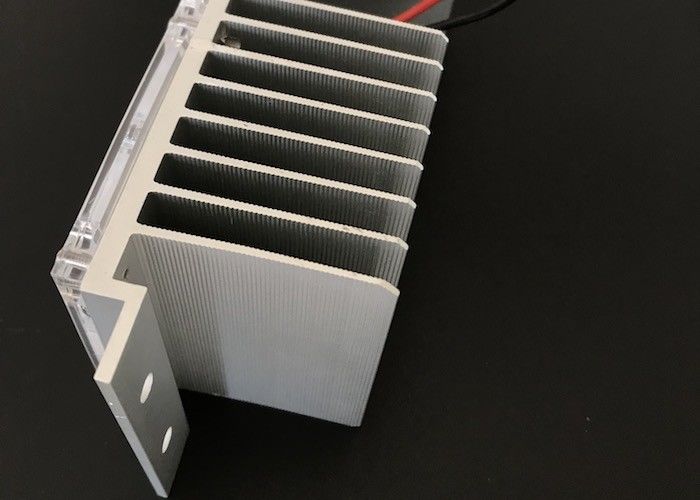

LED module with heat sink:
