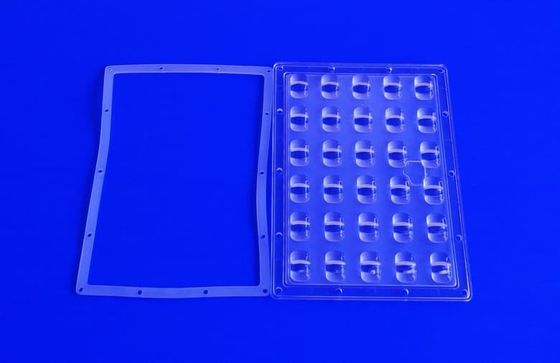

30W Lens Led Street Light Module with led constant current driver

30W Lens Led Street Light Module with led constant current driver

led lighting module

street light led retrofit

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

ROHS

Model Number:

SUN-LD5X6

Contact Us

Request A Quote
Product Details
Product Name:
30W Lens Led Street Light Module , PMMA Lens For Road Lamp
Lens Material:
PMMA Optical
Beam Angle:
90x126degree
Lens Size:
171x125x8.13mm
Match Led:
XPE|XPG|XPC,OSRAM
Aplication:
Street Light , Road Lamp
Payment & Shipping Terms
Minimum Order Quantity
30
Packaging Details
20pcs lens /parcel 32x18x12cm/2.5kgs
Delivery Time
5-6 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

30W Lens Led Street Light Module , PMMA Lens For Road Lamp





Features:



1.This SKD 30W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W,120W,180W and so on.



2.It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.



3.Industry-leading thermal management utilizing technology.



4.Operating temperature range: from 35 Celsius degree to 70 Celsius degree.



5.The LED retrofit kits contain no any mercury or lead.



6.Directional light means no light pollution, dark sky compliance.





Specifications:



Product Name

30W Lens Led Street Light Module , PMMA Lens

Model No

SUN-LD5X6

Main Parts

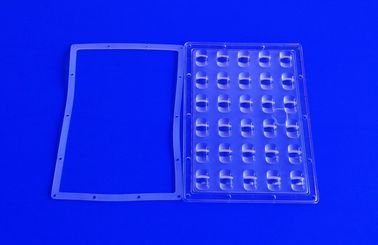

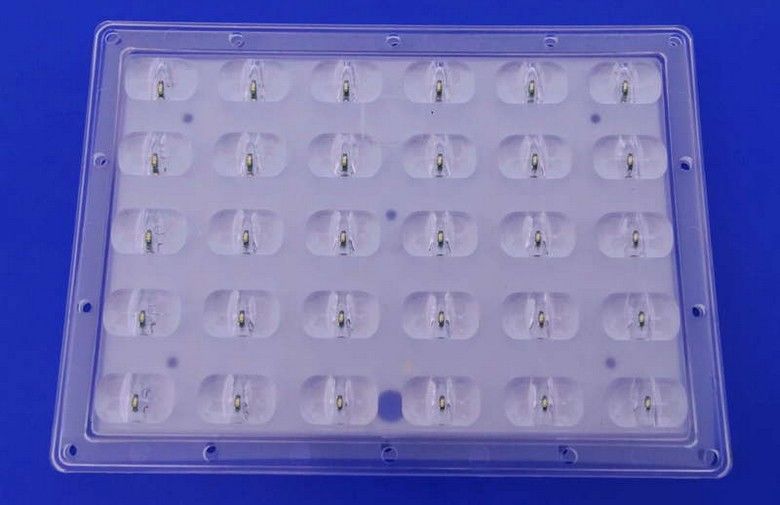

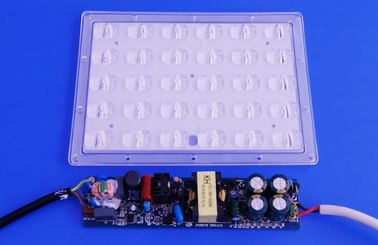

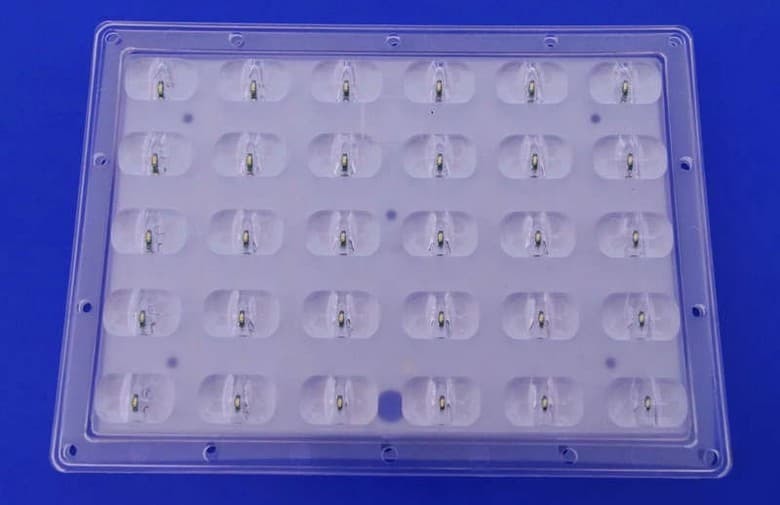

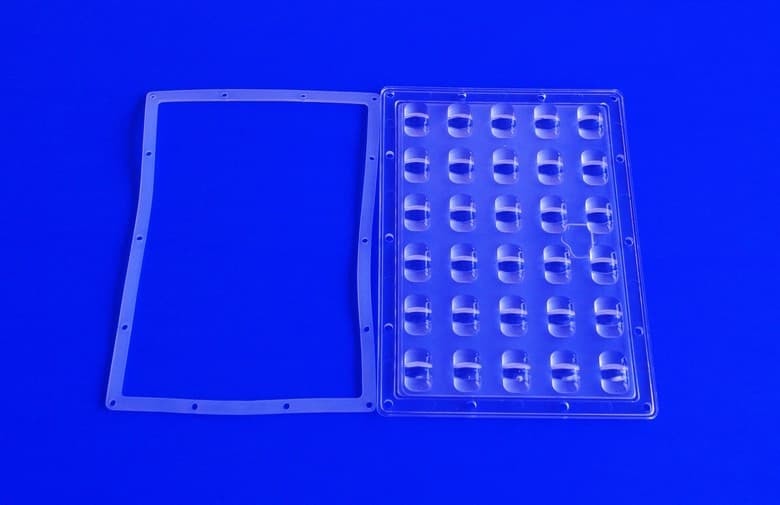

30W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver

Lens Material

PMMA Optical

Led Chips XPE|XPG|XPC,OSRAM Match

MOQ

30pcs

Lens Size

171X125X8.13mm

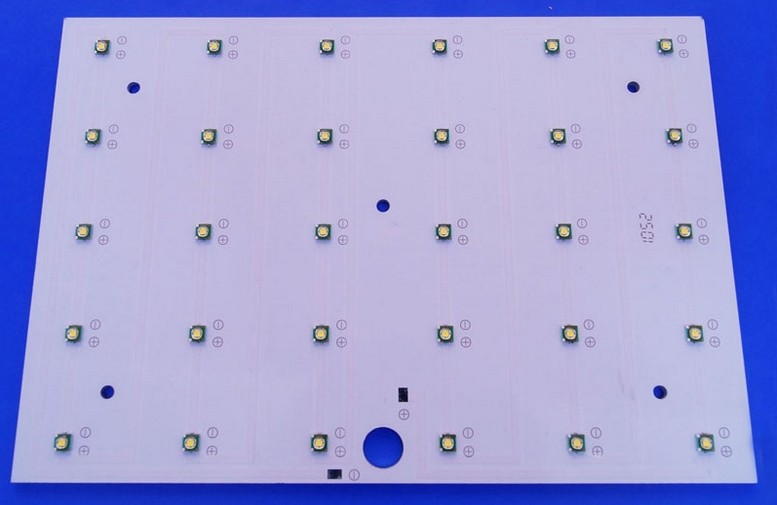

PCB Size

150x104mm

Lens Size 171x125x8.13mm
Beam Angle 90x126degree

PCB Circuit

30 in series

Certificate

ROHS

Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

Main market

All over the world

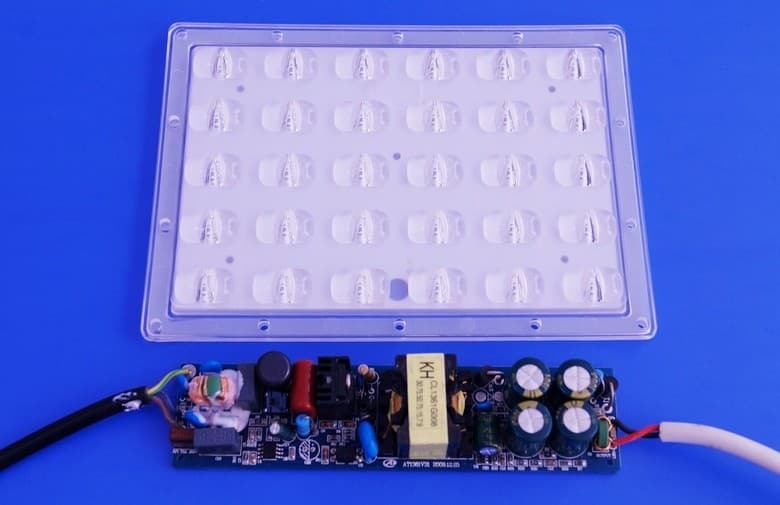

Parameters for AT1361 LED Constant Current driver:



- Suitable for AC100V~240V Input voltage



- Output power should be less than 36W



- Input and output is isolated



- Power factor is > 0.9



- ROHS standard



- Easy to adjust the output of constant current for led lights



- Have bared PCB , Plastic box and aluminum enclosure waterproof for choice



Model NO AT1361-36X1W AT1361-7X4W
Rated Input voltage 110VAC/220VAC
Input voltage scale 100~240VAC ,47~63Hz
Power factor >0.9 >0.9
Efficiency >88% >84%
Rated Input power <42W <44W
Loading Input power <2.5W <2.5W
Short-circuit Input power <6W <6W
AC Current  <220 mA <220 mA
Cold start surge current <15A <15A
Leakage current <2mA <2mA
Constant current output scale 320±20mA 72~115V 1280±50mA,21~25V
Loading voltage <128V <32V
Ripple ,noise 1V 1V
Linear adjust 2% 2%
Load regulation 2% 2%
Time for starting <1.3S <1.3S
Opposite for wires Normal working
Low or high Input voltage

Low voltage ,no output or twinkle ;high voltage will damage the

power supply

Short-circuit or open-circuit  output It’ll discharge sound ‘blah’ when short-circuit or open-circuit
Overheat IC has protection for overheat
Working temp & humidity -20℃-60℃,20-95%RH
Storing temp ,humidity -25℃-80℃,20-95%RH
ROHS YES
MTBF >25000 HOURS
Dimension ,weight

PCB:142mm*34.5 mm*24mm ;110g

Metal case waterproof 180*37*29mm 3 30g

Input wires stranded cable black /PVC 0.50mm2/length 150mm; L N G/W ground wire
Output wires stranded cables white/0.50mm2/length 150mm Black LED -  ; RED /LED + Ground wire





Shipping and delivery time:



DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB|EXW|CIF|CFR
Sample Availability YES
Delivery Time 3-4 working days





Competitive Advantage:



1. Using high quality USA XPE/XPG chips.


2. Very easy for repair/replacement.


3. Various choice : AC 100-240V Input voltage Waterproof or non-waterproof.



4. Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance.



5. Industry-leading thermal management utilizing technology.



6. Top quality with warranty of 2 years warranty.



7. LM80 testing reports available.



8. All models are simply installed by E26/E39/E40 mounting brackets.





Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement.





Buyer Reading:



1. Please confirm receipt of products if the items you received , and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution.



2. We only guarantee Delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the tracking number for the delivered goods in the next workday. you can check the tracking number which we send to you. For the express delivery you also can call to the local branch of the express company in your company.





FAQ:



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks.



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
     Secondly We quote according to your requirements or our suggestions.
     Thirdly customer confirms the samples and places deposit for formal order.
     Fourthly We arrange the production.



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
     Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
