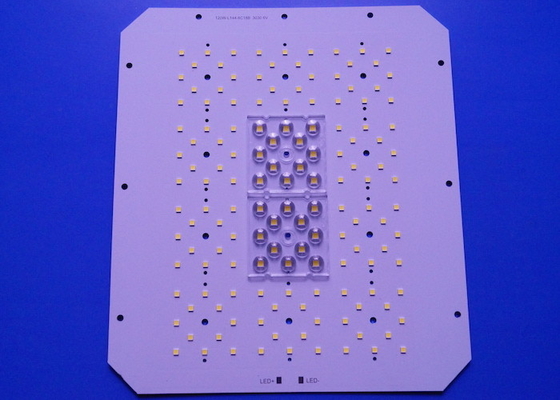

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS

120W LED PCB board

8S18P LED PCB board

Custom smd led pcb board

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-LD120W-144

Contact Us

Request A Quote
Product Details
Product Name:
Custom Made 120W 144 LED 3030 SMD 8S18P 48V PCB Board With 5050SMD LED LENS
Model No.:
SUN-LD120W-144
Beam Angle:
15/30/60/90/60X60/90X90/143X50/156X68/150X75 Degree
LENS Size:
50x50mm
Material:
Optical Grade PC
LED CHIP:
PH Smd3030 Led 6v 1w
Circuit Of PCB:
8 Series 18 Parallel, 48v Output
PCB Size:
216x245x1.5mm
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

Custom made 120W 144 LED 3030 SMD 8S18P 48V PCB board with 5050SMD LED LENS

Quick Detail:


PCB Board:


PCB SIZE:216x245x1.5mm
Layer:1
Board thickness:1.5mm
Solder mask: white
Thermal Conductivity:1w/m.k
Test way:100% test
LED CHIP: 3030 SMD LED 6V
Material: Aluminium

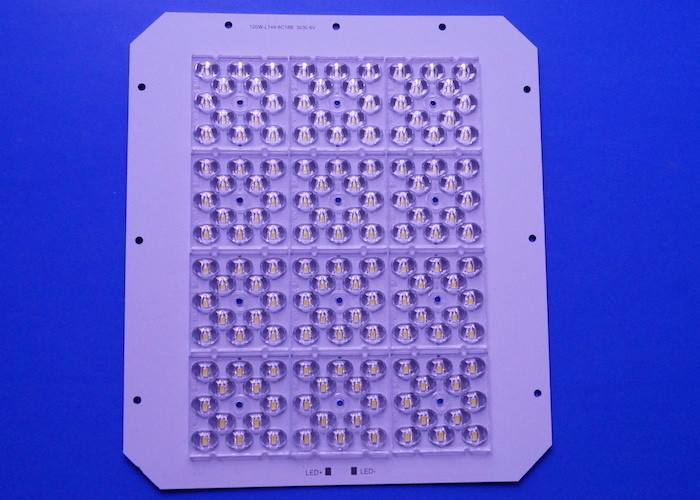

Dense array of 144 led lens/Small footprint, high light output

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 0

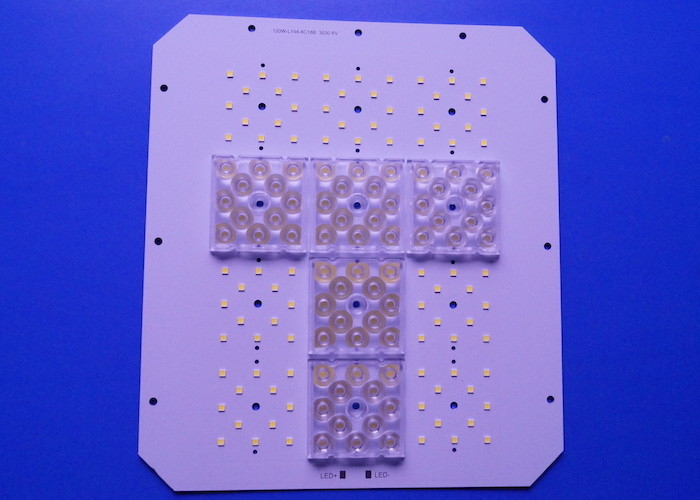

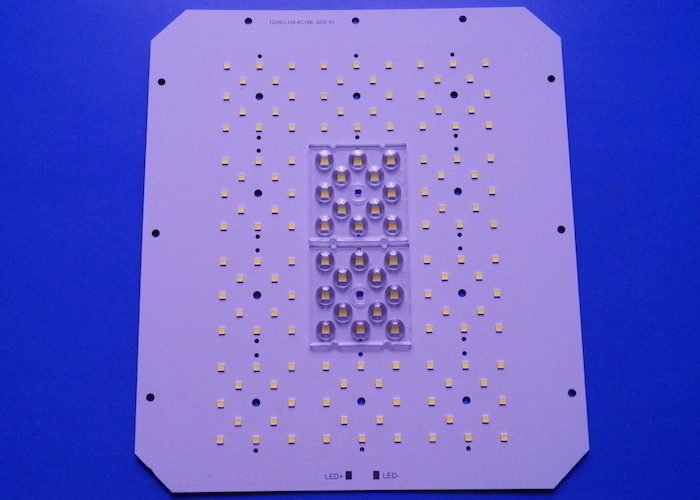

LED LENS Details:

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 1
Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 2




Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

Custom made 120W 144 LED 3030 SMD 8S18P 48V PCB board with 5050SMD LED LENS

2, Model No

 SUN-LD120W-144

3, Main parts

 PCB board with led + lens

4, Lens Material

PC

5, Lens size

50X50MM

6, Transmittance

91%

7,LEDS

3030SMD LED

8, Sample

5-7 work day

9, Delivery

7-10  work days for 10000 sets

10, Angle

15/30/60/90/60X60/90X90/143X50/156X68/150X75 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia


Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



LENS Dimensions :


Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 3


PCB SIZE:



Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 4


Related for 144 LED module:

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 5

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 6

Custom 120W 144 LED PCB Board 3030 SMD 8S18P 48V With 5050SMD LED LENS 7

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
