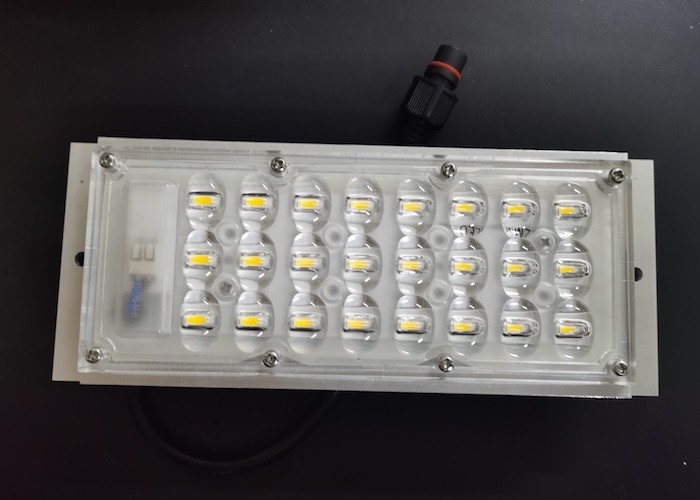

173x71mm 24 LED 5050 SMD Module LED Street Light Components With Optic Lens
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 173x71mm 24 LED 5050 SMD Module Street Light Components 30w 40w 50w With Optic Lens | Model No. | SUN-LD24H1-163X85-TPII-M |
|---|---|---|---|
| Beam Angle | 163X85 Degree TYPE II-M | LENS Size | 173X71.4MM |

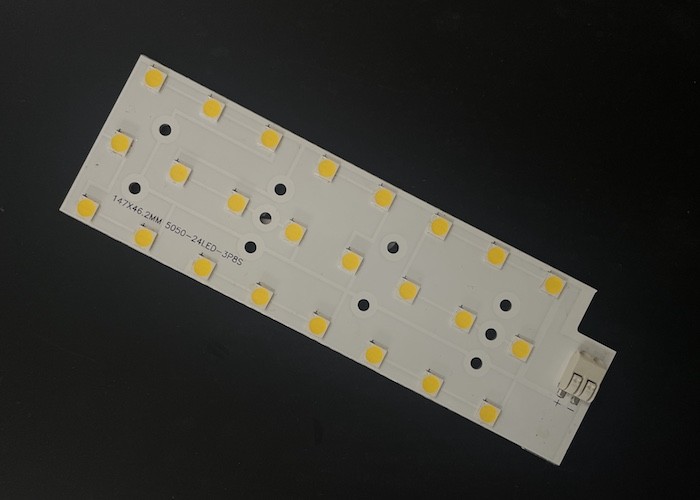

| PCB Size | 145X47X1.5mm | Circuit | 8 SERIES 3 PARALLEL |
| LED CHIP | 5050SMD LED 6V 48V OUTPUT | Material | Optical Grade PC |
| Highlight | 24 LED 5050 SMD Module,5050 SMD Module With Optic Lens,SMD Module LED Street Light Components |
||
Product Description
173x71mm 24 LED 5050 SMD Module street light components 30w 40w 50w with optic lens
Quick Detail:
| Model No. | SUN-LD24H1-163X85-TPII-M |
| Power (watt) | 30-50w |
| Angle viewing | 163X85 degree |
| Lens size | 173x71.4mm |
| PCB size | 145X47X1.5mm |
| Circuit for 5050smd led | 8 series 3 parallel |
| LED CHIP | PH 5050 , 6V White color 3000-6500k 1-5w/pc |
| Output voltage | 48v |
| Lumen value | 130-160lm/w for pcb board |
| Lense array of 12 leds | Small footprint, high light output |
Features :
- This SKD 24 LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
173x71mm 24 LED 5050 SMD Module street light components 30w 40w 50w with optic lens |
|
2, Model No |
SUN-LD24H1-163X85-TPII-M |
|
3, Main parts |

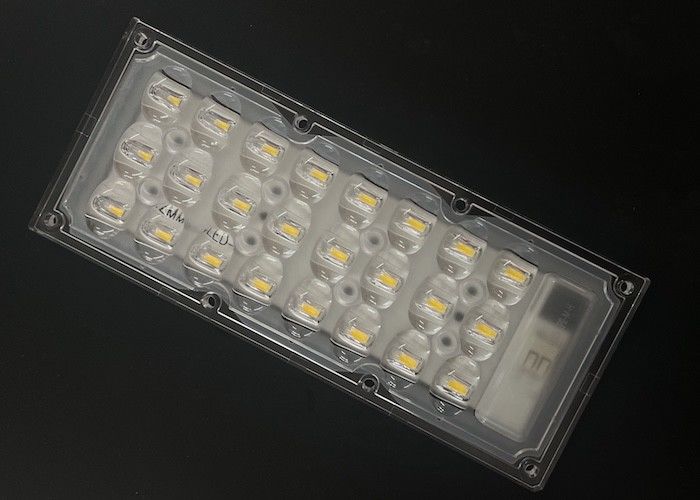

24 Array lens , silicon gasket+PCB board with led |
|
4, Lens Material |
PC |
|
5, Lens size |
173X71.4mm |
|
6, Transmittance |
93% |
|
7,LEDS |
5050SMD 1-5W 6V LED |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 300 sets |
|
10, Angle |
143x70 degree, TYPEII-S |
| 11.Other angle | 60 DEGREE / 90 DEGREE/ 163X85 DEGREE |
|
12, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
13, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
3x8 LENS Dimensions And Beam pattern:
Related LED lens 60 degree & 90 degree :
