150W 180W 200W 232PCS 3030 SMD LED Module 58X4 TYPE3-M Street Light Lens
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 150W 180W 200W 232PCS LED 3030 MODULE 58X4 SMD LED TYPE3-M Street Light LENS | Model No. | SUN-LD58X4-3030-TPIII-M-115X150 |
|---|---|---|---|
| Beam Angle | 115x150 Degree | LENS Size | 279x150MM |
| Material | Optical Grade PC | LED CHIP | 3030 SMD LED |
| Tranmittance | 91% | 4x3030 | 58 Points |
| Highlight | 3030 SMD LED Module,58 x 4 Street Light Lens,TYPE3-M Street Light Lens |
||
Product Description

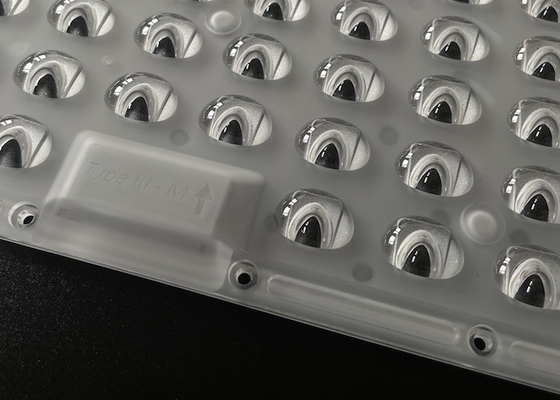

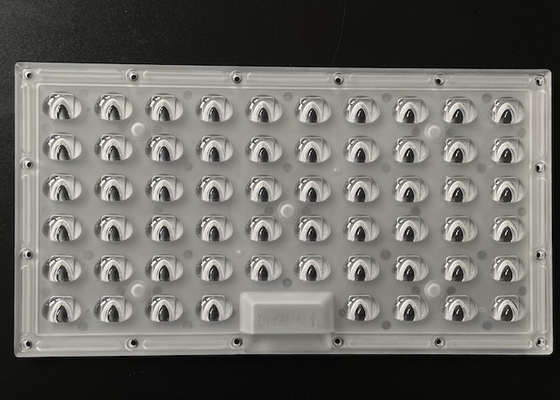

150W 180W 200W 232PCS LED 3030 MODULE 58X4 SMD LED TYPE3-M Street light LENS
Quick Detail:
Model No: SUN-LD58X4-3030-TPIII-M-115X150
Material: PC
Beam Angle : 115x150 degree
Lens size:279x150mm
Match LED: 3030SMD LED 6V WHITE COLOR
CRI:CRI80 OR CRI70

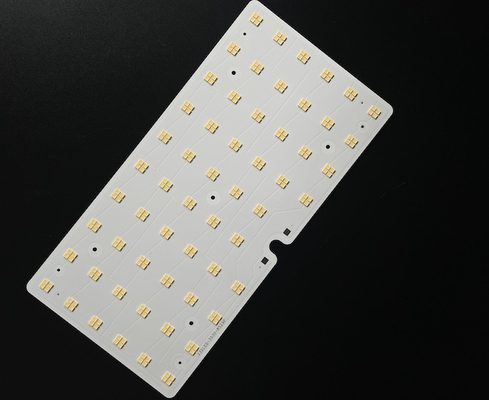

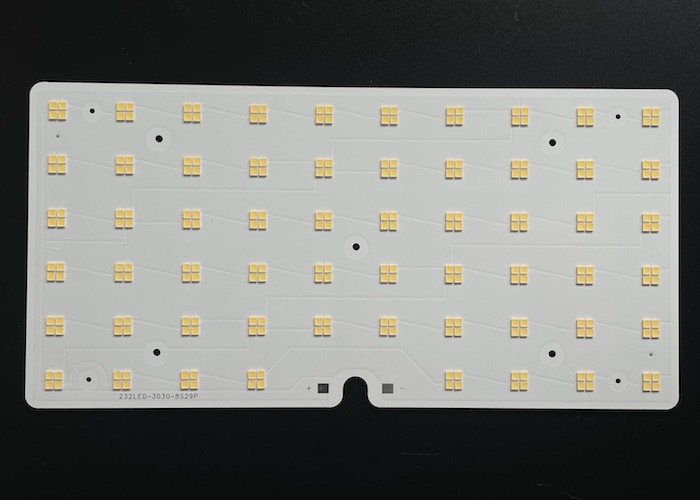

PCB board:256x127x1.5mm, 2.0w/m*k
Circuit:8 series 29 parallel, DC48V OUTPUT
Small footprint, high light output
Features :
- This SKD 58 LED Array lens with PCB Module is best design power lamps like 24W/30W/40W/50W for per module.It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 60/90 degree, 80X150 degree, 90x120 degree, 60x90 degree, 30 degree and so on.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
1, Product Name | 150W 180W 200W 232PCS LED 3030 MODULE 58X4 SMD LED TYPE3-M Street light LENS |
2, Model No | SUN-LD58X4-3030-TPIII-M-115X150 |
3, Main parts | Array lens , silicon gasket+ PCB board with led |
4, Lens Material | PC |
5, Lens size | 279x150mm |
6, Transmittance | 91% |
7,LEDS | 3030 SMD LED |
8, Sample | 3-4 work day |
9, Delivery | 5-7 work days for 10000 sets |
10, Angle | 115X150 degree |
11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
12, Main market | Europe, South America,North America, Asia |
Shipping and delivery time:
DHL/UPS/TNT/FEDEX | 4-5 working days |
EMS | 10-15 working days |
HK Post Air Mail Register | 15-18 working days |
Trade Terms | FOB|EXW|CIF|CFR |
Sample availability | YES |
Delivery time | 3-4 working days |
LENS Dimensions :
Beam pattern
Related produce:
Any request or question , please freely contact me by :
Yuan Hu
EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783
Mobile: +86-18665803783
QQ:1831466204
Wechat:Helen1404
