Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
SGS,ROHS
Model Number:
SUN-D5050-4H1-150X75-TPII-S-B

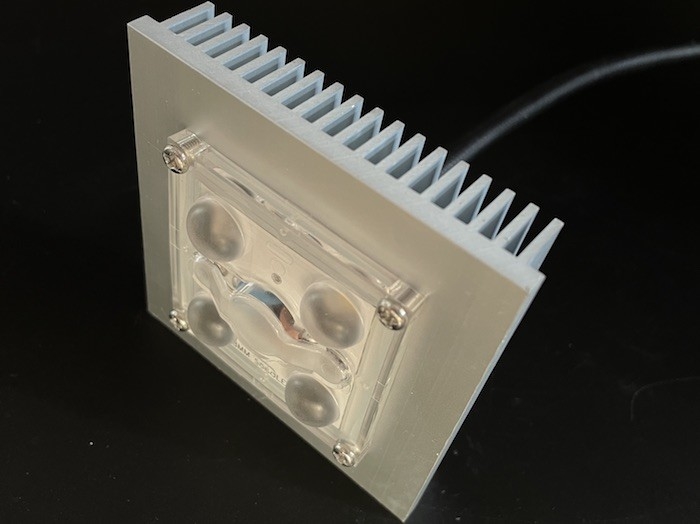

Outdoor Lighting 4-in-1 SMD Module 10W-15W 5050 with 150x75 Degree Lens Waterproof Design
Quick Detail:
Model No: SUN-D5050-4H1-150X75-TPII-S-B
Material: PC
Beam Angle :150X75 degree
Lens size:50X50mm
Match LED: 5050SMD LED 24V WHITE COLOR
CRI:CRI80 OR CRI70
PCB board:38X38x1.5mm, 2.0w/m*k
Heatsink:75x75x15mm
Circuit:4 LED in parallel, DC24V OUTPUT
Small footprint, high light output
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
1, Product Name | Outdoor Lighting 4-in-1 SMD Module 10W-15W 5050 with 150x75 Degree Lens Waterproof Design |
2, Model No | SUN-D5050-4H1-150X75-TPII-S-B |

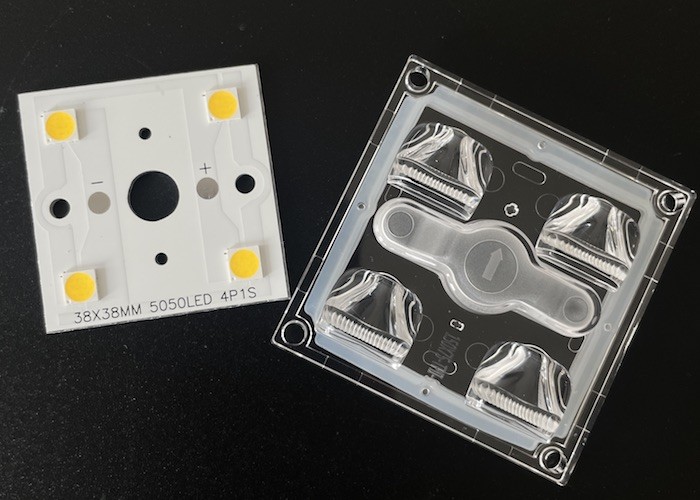

3, Main parts | Array lens , silicon gasket+ PCB board with led+heatsink |
4, Lens Material | PC |
5, Lens size | 50x50mm |
6, Transmittance | 91% |
7,LEDS | 5050 SMD LED |
8, Sample | 3-4 work day |
9, Delivery | 5-7 work days for 10000 sets |
10, Angle | 150x75 degree/TYPEII-S |
11, Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
12, Main market | Europe, South America,North America, Asia |
Shipping and delivery time:
DHL/UPS/TNT/FEDEX | 4-5 working days |
EMS | 10-15 working days |
HK Post Air Mail Register | 15-18 working days |
Trade Terms | FOB|EXW|CIF|CFR |
Sample availability | YES |
Delivery time | 3-4 working days |
LENS Dimensions :
Beam pattern:

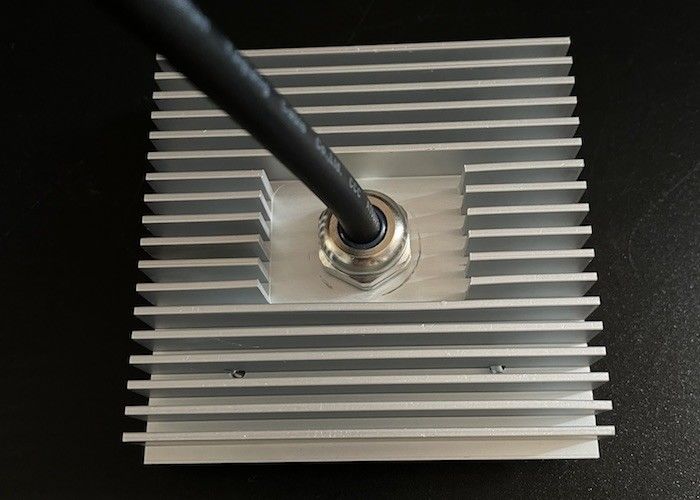

Heatsink:
