SMD 3030 LED Street Light Retrofit Kits with 160lm/W Efficiency and 80x150 Degree Beam Angle
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SMD 3030 80x150 Degree Solar Led Street Light Retrofit Kits 160lm/W 12V 50W | Model No. | SUN-SL72-3030-80x150 |
|---|---|---|---|
| Angle | 80x150 Degree | Lens Dimension | 250x74x6.15mm |
| Lens Material | Optical Grade PC | LED CHIP | 3030 SMD LED, 150-160lm/w 150mA,6v |
| Tranmittance | 91% | Accessory | Gasket And Lens+PCB+ 3030 SMD LED+Heat Sink |
| PCB Size | 226x57.9x1.5mm | PCB Circuit | 2 Series 36 Parallel |
| Highlight | SMD3030 LED Street Light Retrofit Kits,50W LED Street Light Retrofit Kits |
||
Product Description

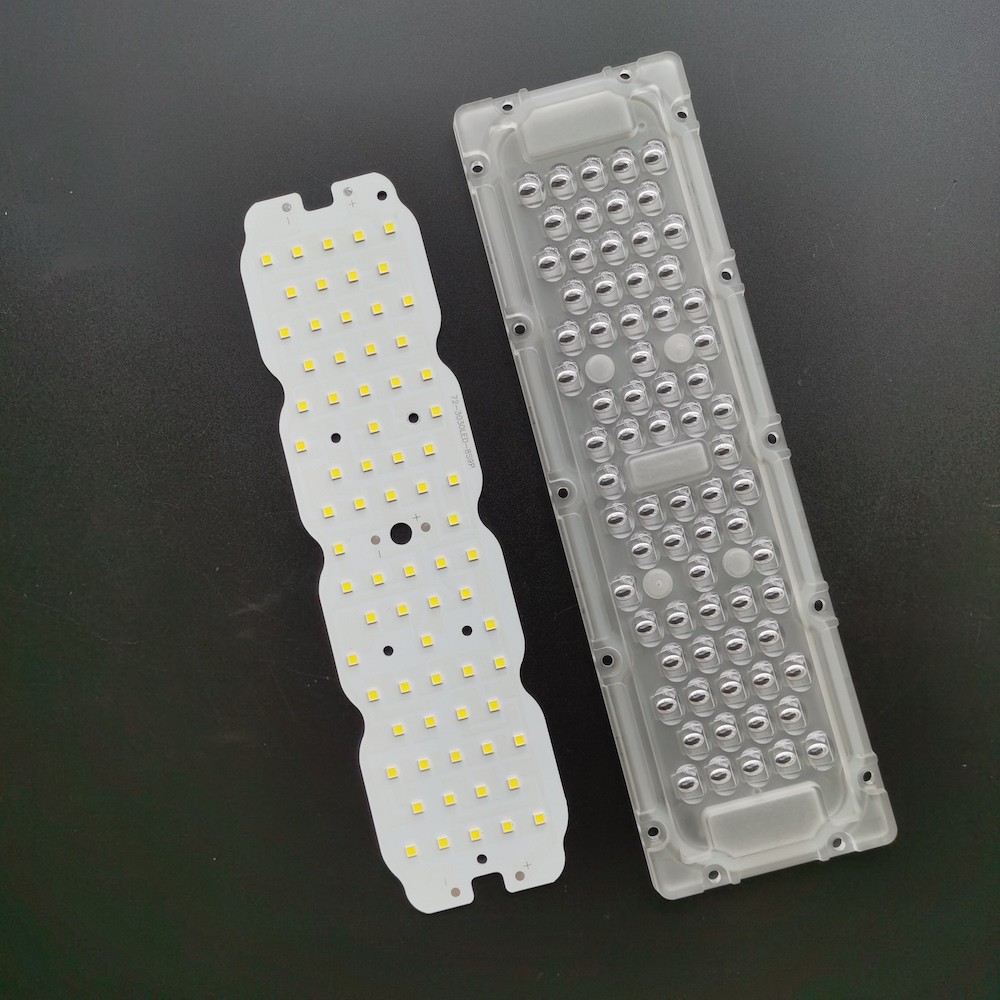

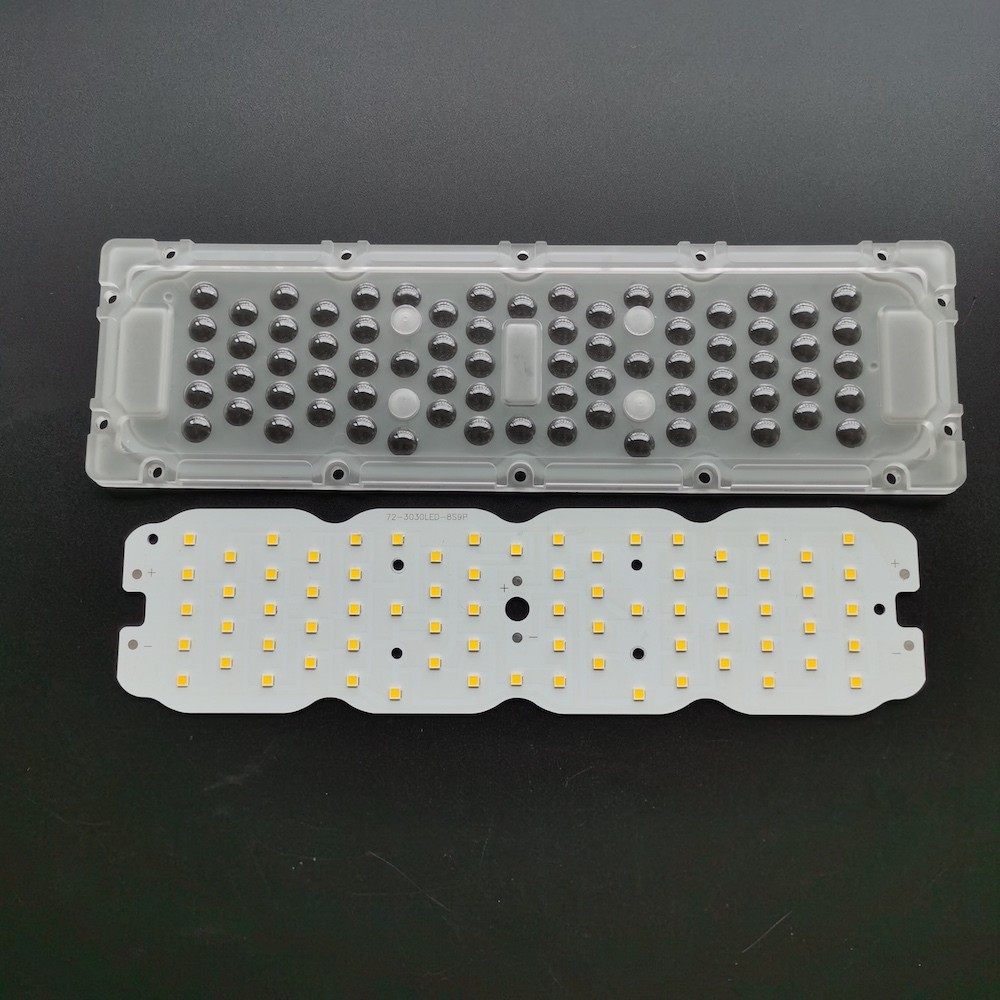

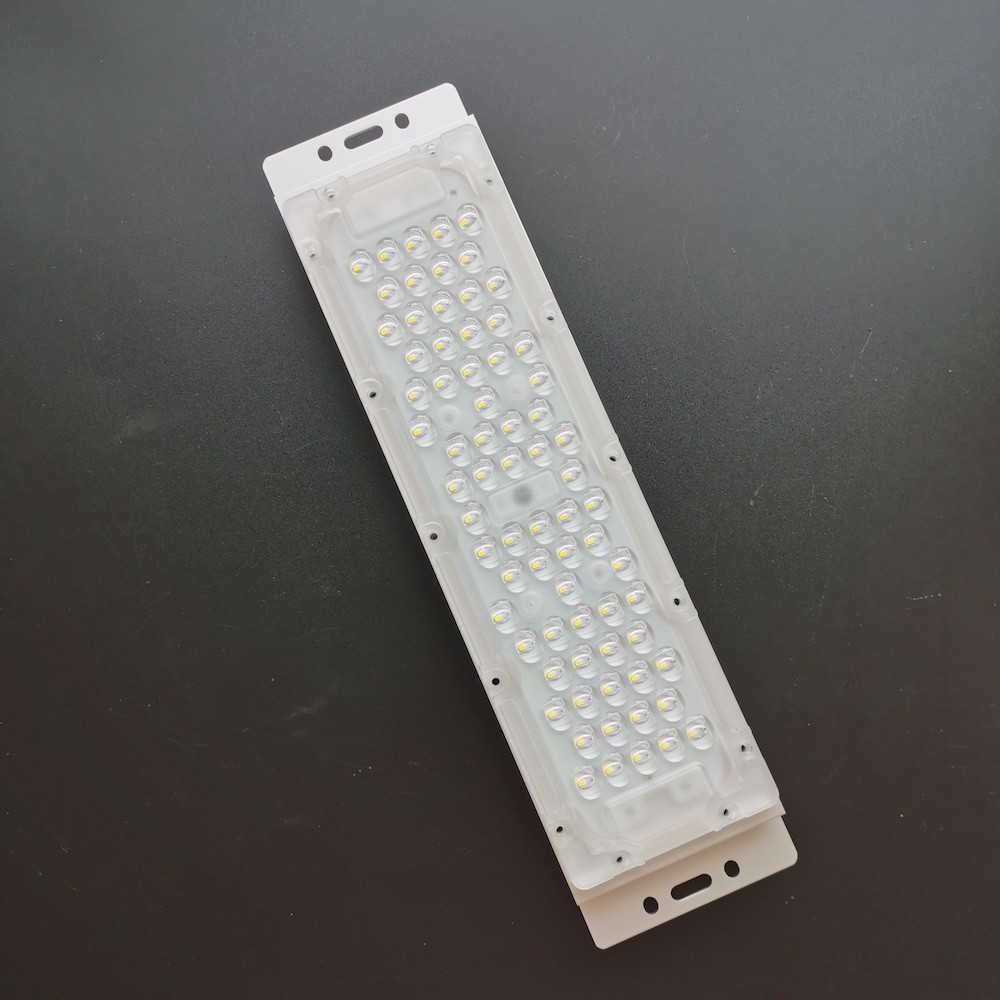

SMD 3030 LED With 80x150 Degree Solar LED Street Light Retrofit Kits
High-efficiency 50W solar LED street light retrofit kit featuring SMD 3030 LEDs with 160lm/W efficacy and 12V operation.
Product Features
- Compact design compatible with various lamp housings
- High-quality PH3030 LEDs ensure long operational life
- Customizable lens and board designs available
- Optimized 72 LED array lens with PCB module for 50W power lamps
- Cost-effective retrofit solution for Metal Halide or HPS bulb replacement
Specifications
| Product Name | SMD 3030 80x150 Degree Solar LED Street Light Retrofit Kits 160lm/W 12V 50W |
| Model No | SUN-SL72-3030-80x150 |

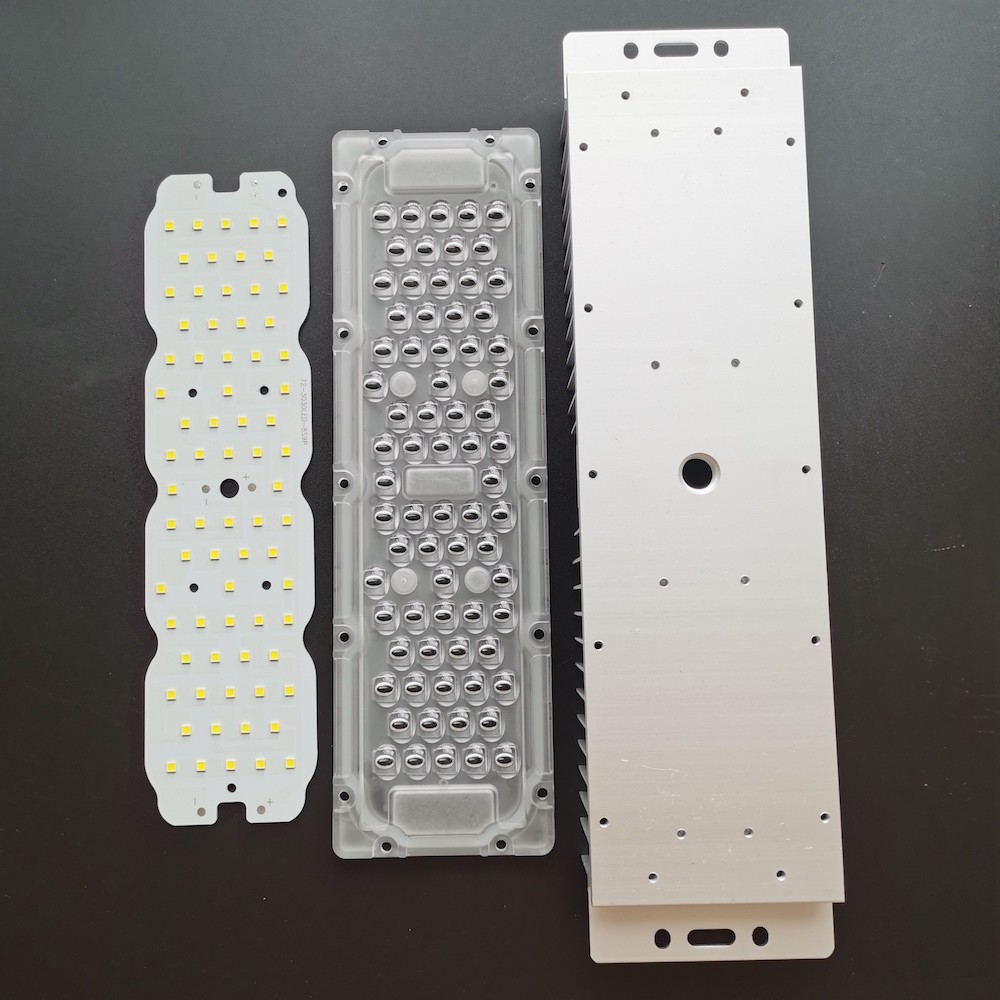

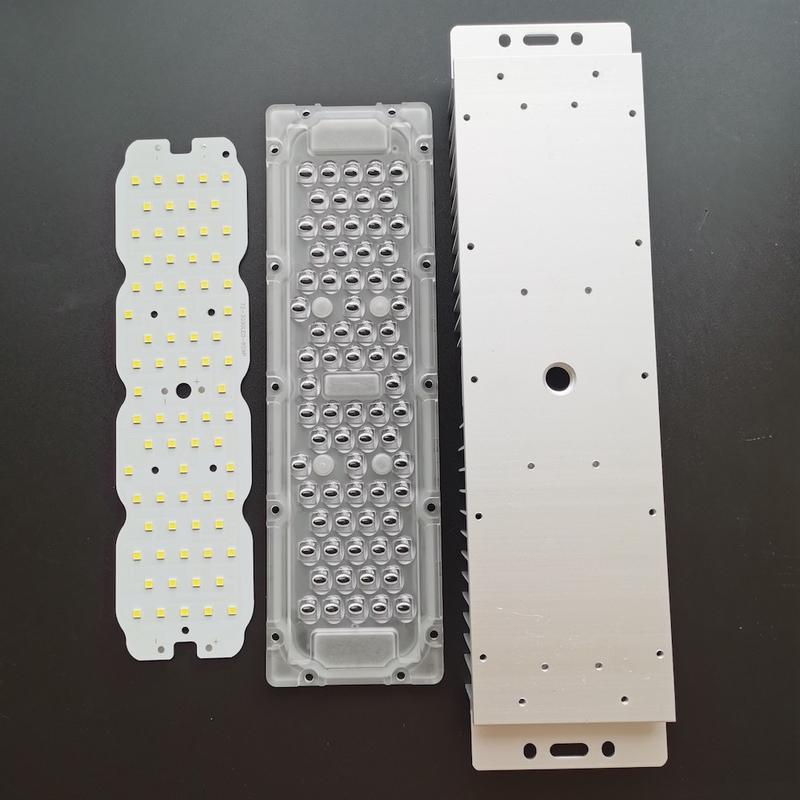

| Main Parts | Array lens, silicon gasket, PCB, LED, heat sink |
| Lens Material | PC |
| Lens Size | 250×74mm |
| Transmittance | 91% |
| LEDs | 3030 SMD LED, 140-150lm 150mA, 6V |
| Beam Angle | 80×150 degree / 60 degree / 90 degree |
| Quality Guarantee | Replacement or refund for defective items |
| Main Markets | Europe, South America, North America, Asia |
Related SMD 3030 LED Modules
| Model No. | Power (W) | Angle (Degree) | Lens Size (mm) | PCB Size (mm) | Circuit |
|---|---|---|---|---|---|
| SUN-LD3x12-3030-90x90 | 30 | 90×90 | 250×74 | 228×53×1.5 | 6S6P |
| SUN-LD3x12-3030-60x140 | 30 | 60×140 | 120×110 | 89×89×1.5 | 6S6P |
| SUN-LD4X12-3030-60X60 | 40 | 60×60 | 250×74 | 228×53×1.5 | 6S8P |
| SUN-SL56W-3030-30/60/90 | 50 | 30/60/90 | 256.6×78.6 | 233×55×1.5 | 7S8P |
| SUN-SL64W-3030-30/60/90 | 50 | 30/60/90 | 236×70 | 219.1×53.54×1.5 | 8S8P |
| SUN-SL72-3030-60/90 | 50 | 60/90 | 250×74 | 226×57.9×1.5 | 8S9P |
Lens Dimensions
Gasket and PCB Size
Array Lens Series
Applications
Ideal for street lighting, highway LED lamps, tunnel lamps, square lamps, road lamps, city lighting, parking spot lamps, track lighting fixtures, scenic areas, retail lighting, and other applications requiring high luminous flux.
