Newest 30w LED pcb assembly Led Light Retrofit Kits

Quick Detail:

Model No:SUN-LD250X74ED

Material: PC

Beam Angle :87X134 degree

Lens size:250X74mm

Circuit: 10 series 3 parallel

Led chips:45mil Bridgelux chip 150-160lm/w

Lense array of 30 LEDs

Small footprint, high light output

Features :

1. This SKD 3x10 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,60W,90W and so on .
2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3. Industry-leading thermal management utilizing technology
4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5. The LED retrofit kits contain no any mercury or lead.
6. Does not produce UV rays that harm people’s eyes.
7. Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like 87x134 degree ,78x132 degree ,90 degree ,90x90 degree ,120 degree ,70x140 degree etc.

.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

Shipping and delivery time:

Competitive Advantage:

1). Using high quality for Edison,P4

2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available
10). All models are simply installed by E26/E39/E40 mounting brackets.

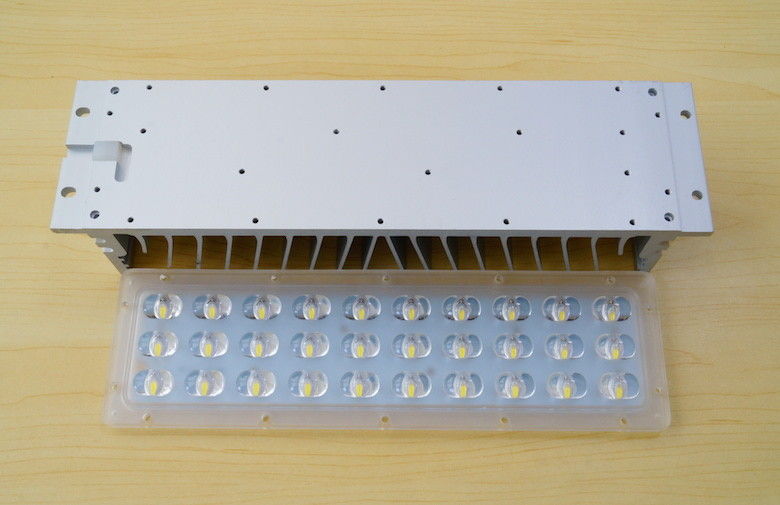

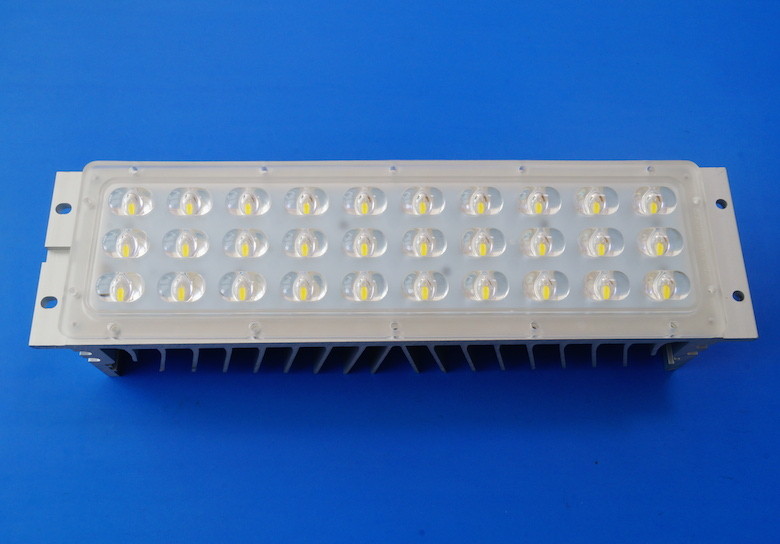

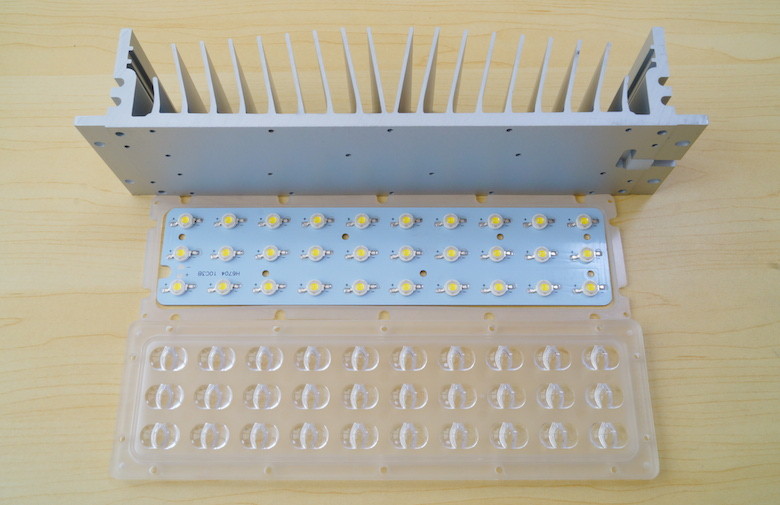

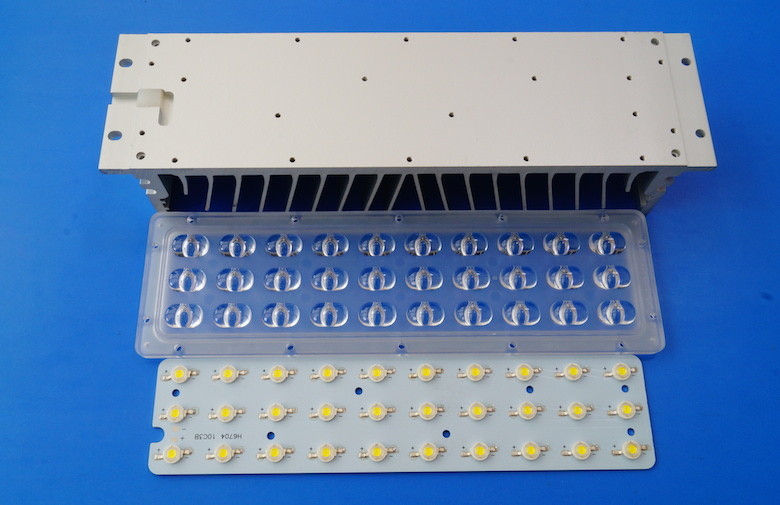

Product Picture:

10x3 LENS SIZE:

Related Led Lens:
