Product Details:
Payment & Shipping Terms:
|
| Product Name:: | Led Light Accessory , 56W Led Street Light Module For Road Lamp | Material:: | PC |
|---|---|---|---|
| Beam Angle:: | 30 , 60 , 90 , 30*70 , 60*90 , 145*70 , 155*80 Degree | Lens Size:: | 256.6*78.6*7.1mm |
| PCB Size:: | 233*55*1.5mm | Accessory:: | AL PCB+ Silicone Gasket |
| PCB Circuit:: | 7 Series 8 Parallel | Tranmittance:: | 90% |
| High Light: | led light replacements,led lighting module |
||
Led Light Accessory , 56W Led Street Light Module For Road Lamp
Quick Detail:
Model No:SUN-SL56W-145x70
Material: PC
Beam Angle : 30 , 60 , 90 , 30*70 , 60*90 , 145*70 , 155*80 degree
Lens size:256.6*78.6*7.1mm
PCB size: 233*55*1.5mm
Circuit: 7 series 8 parallel
Led chips:SMD 3030 Leds
Lense array of 56 LEDs
Features :
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications :
|
1, Product Name |
Led Light Accessory , 56W Led Street Light Module For Road Lamp |
|
2, Model No |
SUN-SL56W-145x70 |
|
3, Main parts |
56W Array lens , silicon gasket , aluminium PCB with LEDs |
|
4, Lens Material |
PC |
|
5, Lens size |
256.6*78.6*7.1mm |
|
6, Transmittance |
90% |
|
7,LEDS |
SMD 3030 Leds |
|
8, Angle |
30 , 60 , 90 , 30*70 , 60*90 , 145*70 , 155*80 degree |
|
9, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
10, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
Competitive Advantage:
Advantages of SKD 56w LED module :
1). Using high quality for Edison,P4
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). LM80 testing reports available

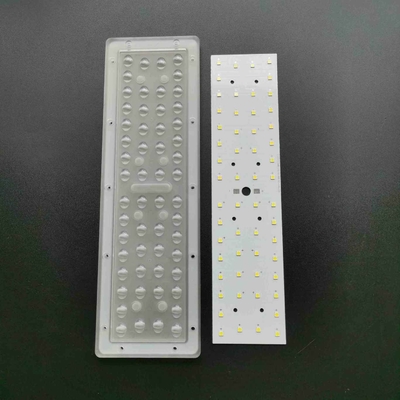

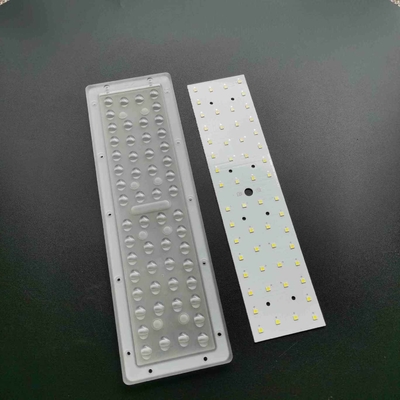

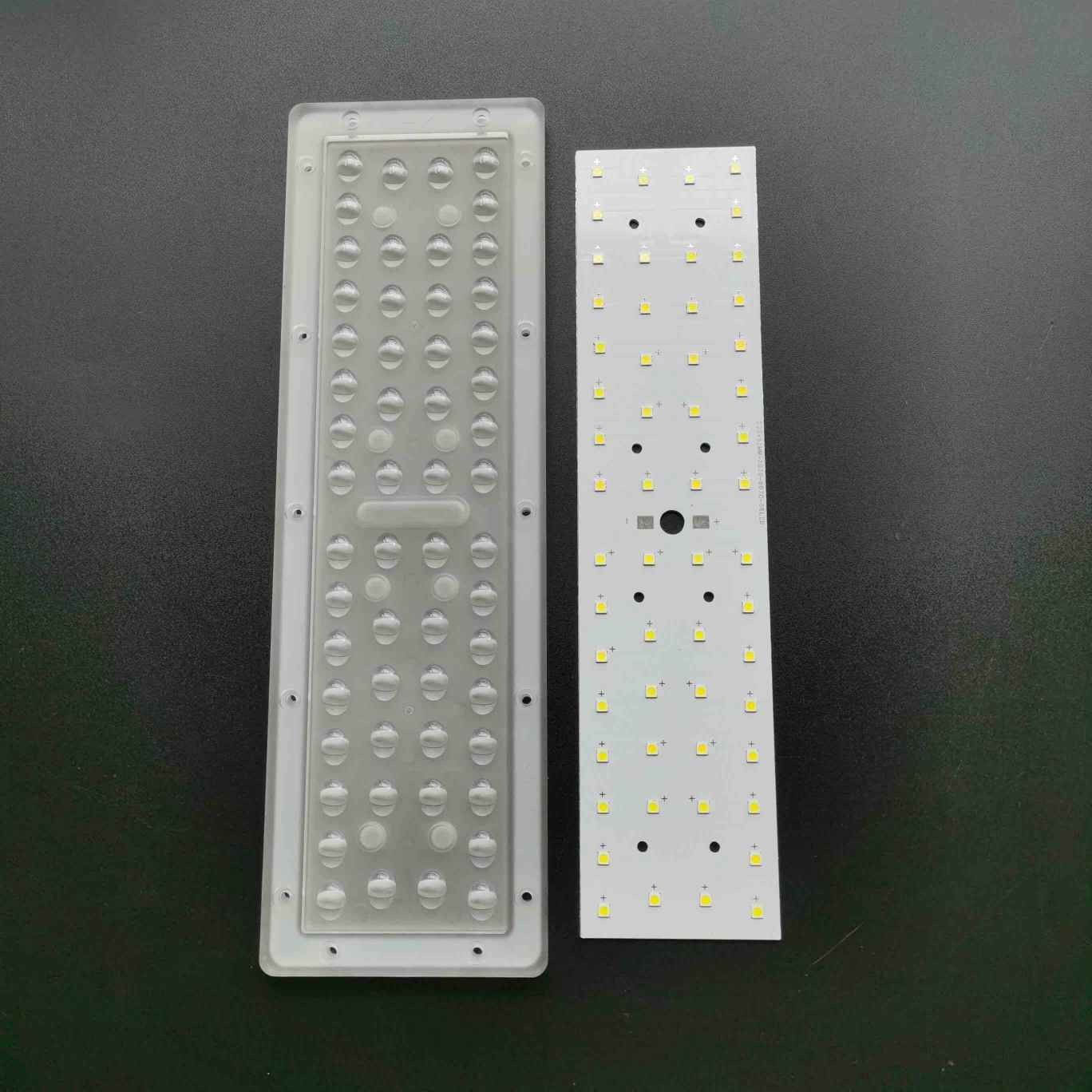

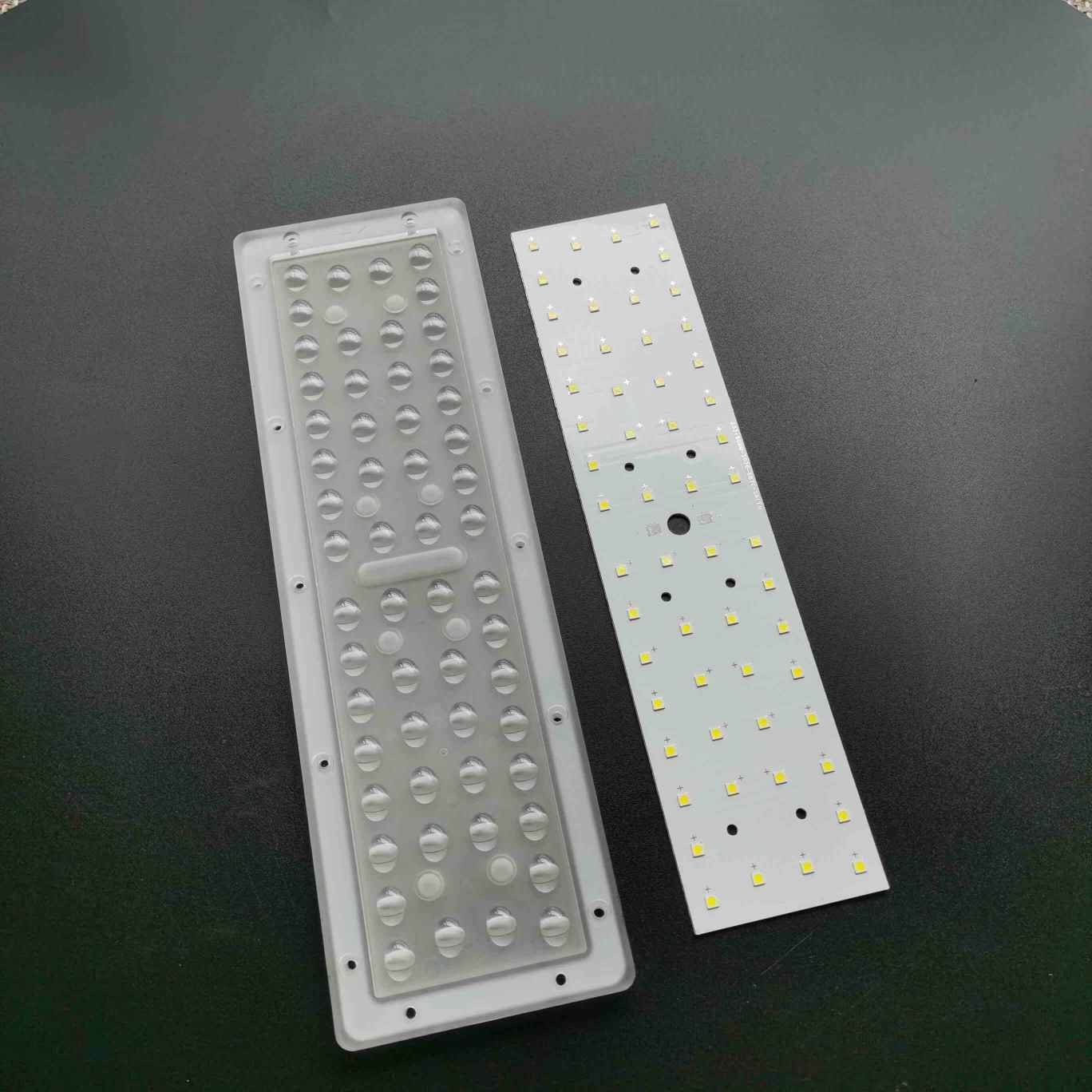

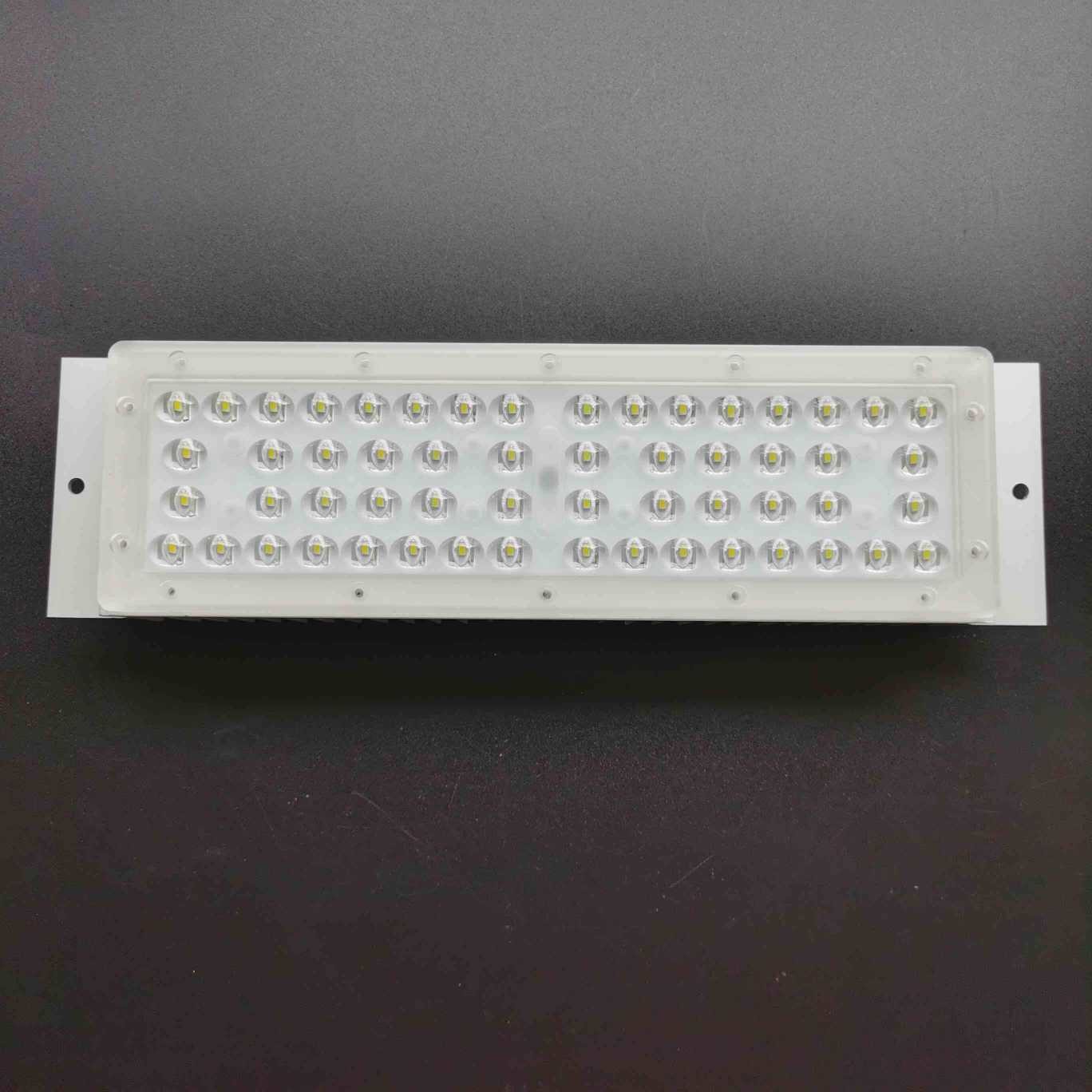

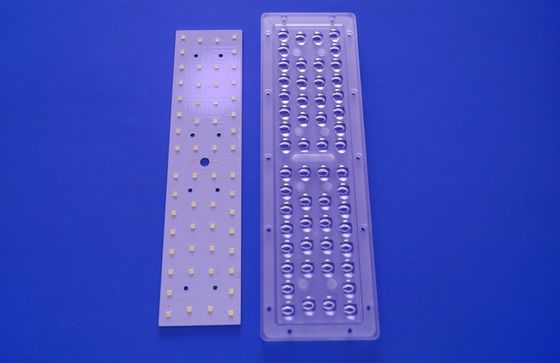

Product Picture:

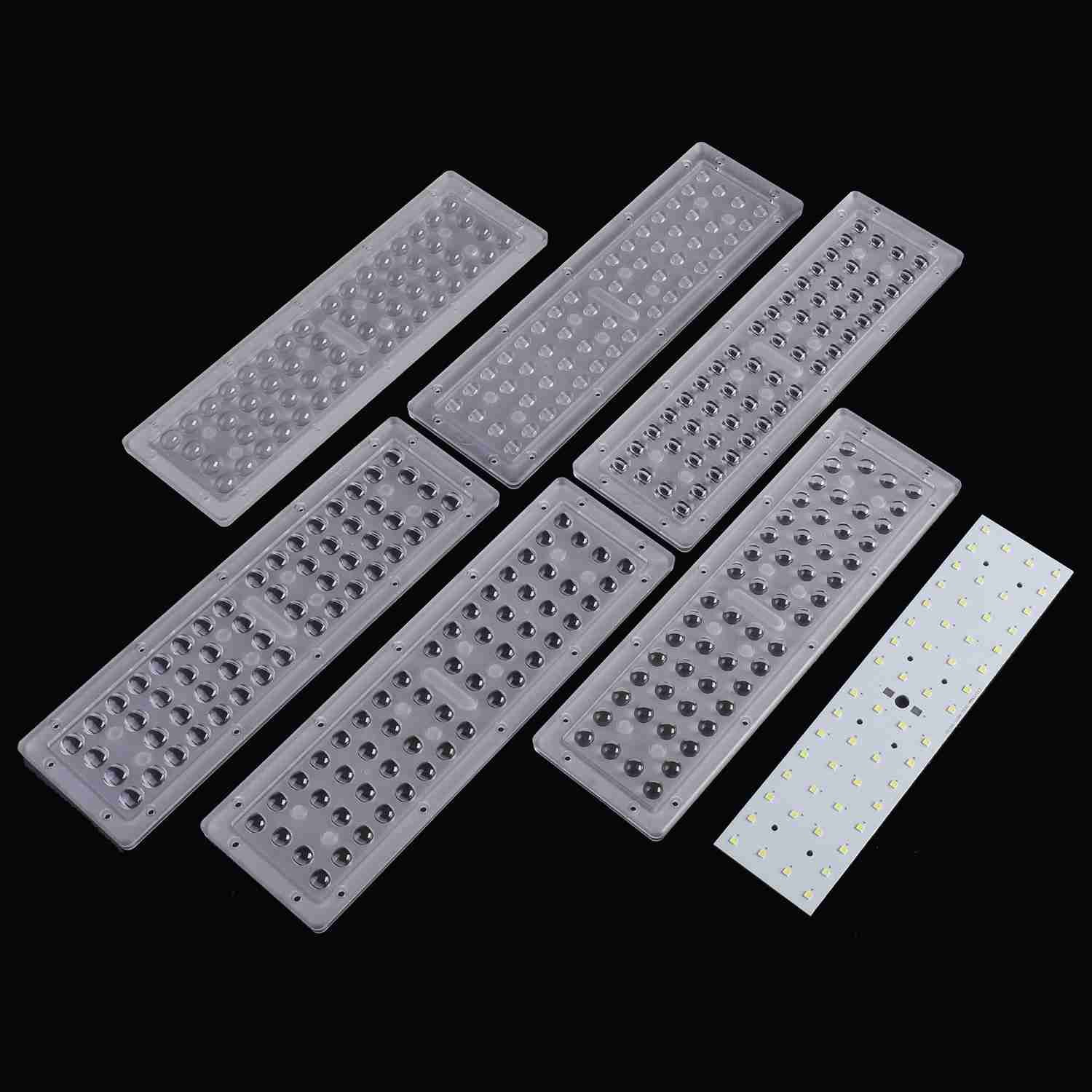

56W Led Street Light Module Series Products :
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*H) |
| SUN-L56W30 | 30° | 256.6x78.6x7.1mm | 233x55x1.5mm |
| SUN-L56W60 | 60° | 256.6x78.6x7.1mm | 233x55x1.5mm |
| SUN-L56W90 | 90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
| SUN-L56W30x70 | 30x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
| SUN-L56W60x90 | 60x90° | 256.6x78.6x7.1mm | 233x55x1.5mm |
| SUN-L56W145x70 | 145x70° | 256.6x78.6x7.1mm | 233x55x1.5mm |
| SUN-L56W155x80 | 155x80°, Asymmetric 35° | 256.6x78.6x7.1mm | 233x55x1.5mm |
