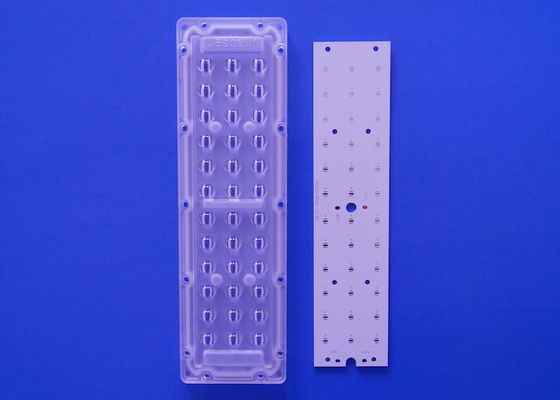

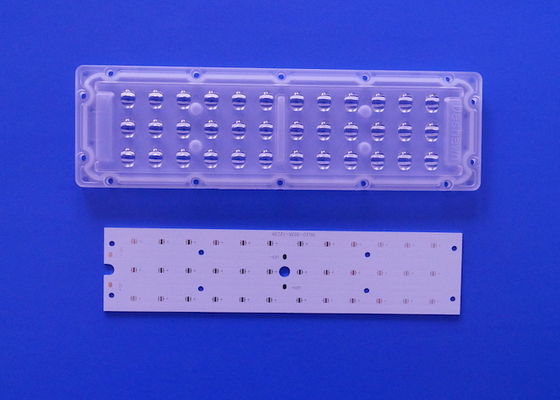

3X12 36 LED 3030 3535 SMD Street Light Lens with 65x150 Degree Beam Angle Optical Grade PC Vertical Light Distribution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3X12 36 LED 3030 3535 SMD Asymmetrical PC Street Light Lens Vertical | Model No. | SUN-LD3x12-3535-65x150 |
|---|---|---|---|
| Beam Angle | 65x150 Degree | LENS Size | 250x74 |
| Material | Optical Grade PC | LED CHIP | 3030 3535 SMD LED |
| Tranmittance | 91% | Application | High Bay Light/Street Light |
| Other Angle | 140X75/90x90 Degree | Circuit For PCB Board | 12 Series 3 Parallel |
| Power | 30watt | Installation | Vertical |
| Highlight | Led light lens,street light lens |
||
Product Description
3X12 Street Light Vertical LED Lens
30Watt 3X12 36 LED 3030 3535 SMD Asymmetrical PC Street Light Lens with Vertical Light Distribution
Product Features
- Compact LED street light module compatible with various lamp housings
- Utilizes high-quality CR3535 LEDs for extended operational lifespan
- Competitive pricing for CR3535 LED components
- Custom lens and board design services available to meet specific requirements
Applications
Ideal for street lighting, highway LED lamps, tunnel lighting, square lighting, road illumination, city lighting projects, parking spot lighting, track lighting fixtures, scenic area lighting, retail lighting, and other applications requiring high luminous flux output.
Specifications
| Product Name | 3X12 36 LED 3030 3535 SMD Asymmetrical PC Street Light Lens Vertical |
| Model No | SUN-LD3x12-3535-65x150 |
| Main Components | 36 Array lens, silicon gasket, PCB, CR3535 LED |
| Lens Material | PC (Polycarbonate) |
| Lens Size | 250 x 70mm |
| Transmittance | 91% |
| LEDs | XPE/XPG/XPE 3535 LED |
| Sample Lead Time | 3-4 work days |
| Delivery Time | 5-7 work days for 10,000 sets |
| Beam Angle | 65 x 150 degrees |
| Quality Guarantee | Replacement or refund provided for defective items upon receiving photographic evidence |
| Main Markets | Europe, South America, North America, Asia |
Related Products
| Model No. | Power (W) | Angle (degree) | Lens Size (mm) | PCB Size (mm) | Circuit |
|---|---|---|---|---|---|
| SUN-LD3X12-3030-45X150 | 25-30W | 45 x 150 | 272 x 70 x 7.43 | - | - |
| SUN-LD3x12-3030-140x70 | 25-30W | 140 x 70 | 250 x 70 | - | - |
| SUN-LD3x12-3030-90x90 | 25-30W | 90 x 90 | 250 x 70 | - | - |
| SUN-LD6X6-3030-60X140 | 25-30W | 60 x 140 | 120 x 110 | 89 x 89 x 1.5 | 6S6P |
Lens Dimensions
This 36-lens configuration with 250x74mm dimensions is also available in horizontal light distribution and 90x90 degree beam angle options.
