New Design 28W SMD 5050 Led Street Light Components For Road Lamp

New Design 28W SMD 5050 Led Street Light Components For Road Lamp

led street light replacement

led light components parts

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

ROHS

Model Number:

SUN-LD2880150P

Contact Us

Request A Quote
Product Details
Lens Beam Angle:
80x150degree
Product Name:
30W SMD 3535 Led Street Light Components With No Glare For Road Lamp
Lens Size:
236x70x6.6mm
Led Chip:
SMD 5050 Leds
PCB Size:
215.8x43.8mm
Driver Model:
AT1361-36X1
Lens Material:
Optical PC
Heat Sink:
300x70mm
Payment & Shipping Terms
Minimum Order Quantity
30
Price
Need to negotiate
Packaging Details
20pcs lens /parcel 32x18x12cm/2.5kgs
Delivery Time
5-6 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description

New Design 28W SMD 5050 Led Street Light Components For Road Lamp





Features:



1, This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 56W,84W,112W and so on.


2, It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


3, Operating temperature range: from 35 Celsius degree to 70 Celsius degree.



4, Industry-leading thermal management utilizing technology.


5, Does not produce UV rays that harm people’s eyes.


6, Directional light means no light pollution, dark sky compliance.





Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement.





Specifications:



Product Name

New Design 28W SMD 5050 Led Street Light Components For Road Lamp

Model No

SUN-LD2880150P

Lens Material

Optical grade PC

MOQ

30pcs

Lens Size

236X70X6.6mm

PCB Size

215.8x43.8mm

PCB Circuit

14 series 2 parallel

Certificate

ROHS

Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

Main market

All over the world





Shipping and delivery time:

DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB|EXW|CIF|CFR
Sample availability YES, 3 days
Delivery time 5-6 working days





Parameters for AT1361 LED Constant Current driver:



- Suitable for AC100V~240V Input voltage

- Output power should be less than 36W

- Input and output is isolated

- Power factor is > 0.9

- ROHS standard

- Easy to adjust the output of constant current for led lights

- Have bared PCB , Plastic box and aluminum enclosure waterproof for choice



Model NO

AT1361-36X1W

AT1361-7X4W

Rated Input voltage

110VAC/220VAC



Input voltage scale

100~240VAC ,47~63Hz



Power factor

>0.9

>0.9

Efficiency

>88%

>84%

Rated input power

<42W

<44W

Loading input power

<2.5W

<2.5W

Short-circuit input power

<6W

<6W

AC Current

<220 mA

<220 mA

Cold start surge current

<15A

<15A

Leakage current

<2mA

<2mA

Constant current output scale

320±20mA 72~115V

1280±50mA,21~25V

Loading voltage

<128V

<32V

Ripple ,noise

1V

1V

Linear adjust

2%

2%

Load regulation

2%

2%

Time for starting

<1.3S

<1.3S

Opposite for wires

Normal working

Low or high  input voltage

Low voltage ,no output or twinkle ;high voltage will damage the power  supply

Short-circuit or open-circuit  output

It’ll discharge sound ‘blah’ when short-circuit or open-circuit

Overheat

IC has protection for overheat

Working temp & humidity

-20℃-60℃,20-95%RH

Storing temp ,humidity

-25℃-80℃,20-95%RH

MTBF

>25000 HOURS

Dimension ,weight

PCB:142mm*34.5 mm*24mm ;110g

Metal case waterproof 180*37*29mm 3 30g

Input wires

stranded cable black /PVC 0.50mm2/length 150mm; L N G/W ground wire

Output wires

stranded cables white/0.50mm2/length 150mm Black LED -  ; RED /LED + Ground wire





Advantages of New Design 28W SMD 5050 Led Street Light Components For Road Lamp​:



1, Using high quality Taiwan led chips.


2, CE driver, very easy for repair/replacement.


3, Various choice : AC 100-240V Input voltage Waterproof or non-waterproof.


4, Higher lumen compared to similar models of others.


5, Positive cooling technology.


6, Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance.


7, Industry-leading thermal management utilizing technology.


8, Top quality with warranty of 2 years warranty.


9, LM80 testing reports available.


10, All models are simply installed by E26/E39/E40 mounting brackets.

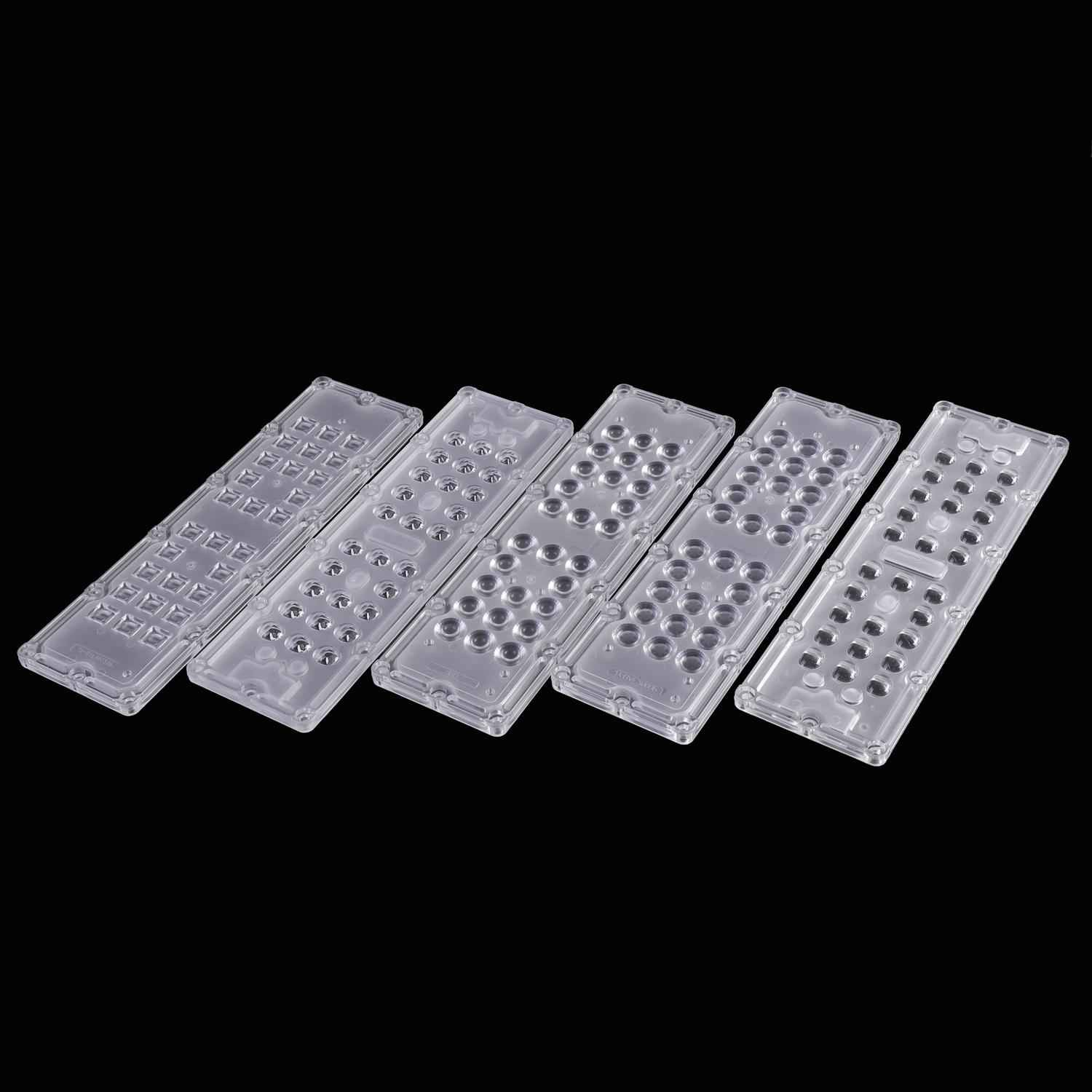

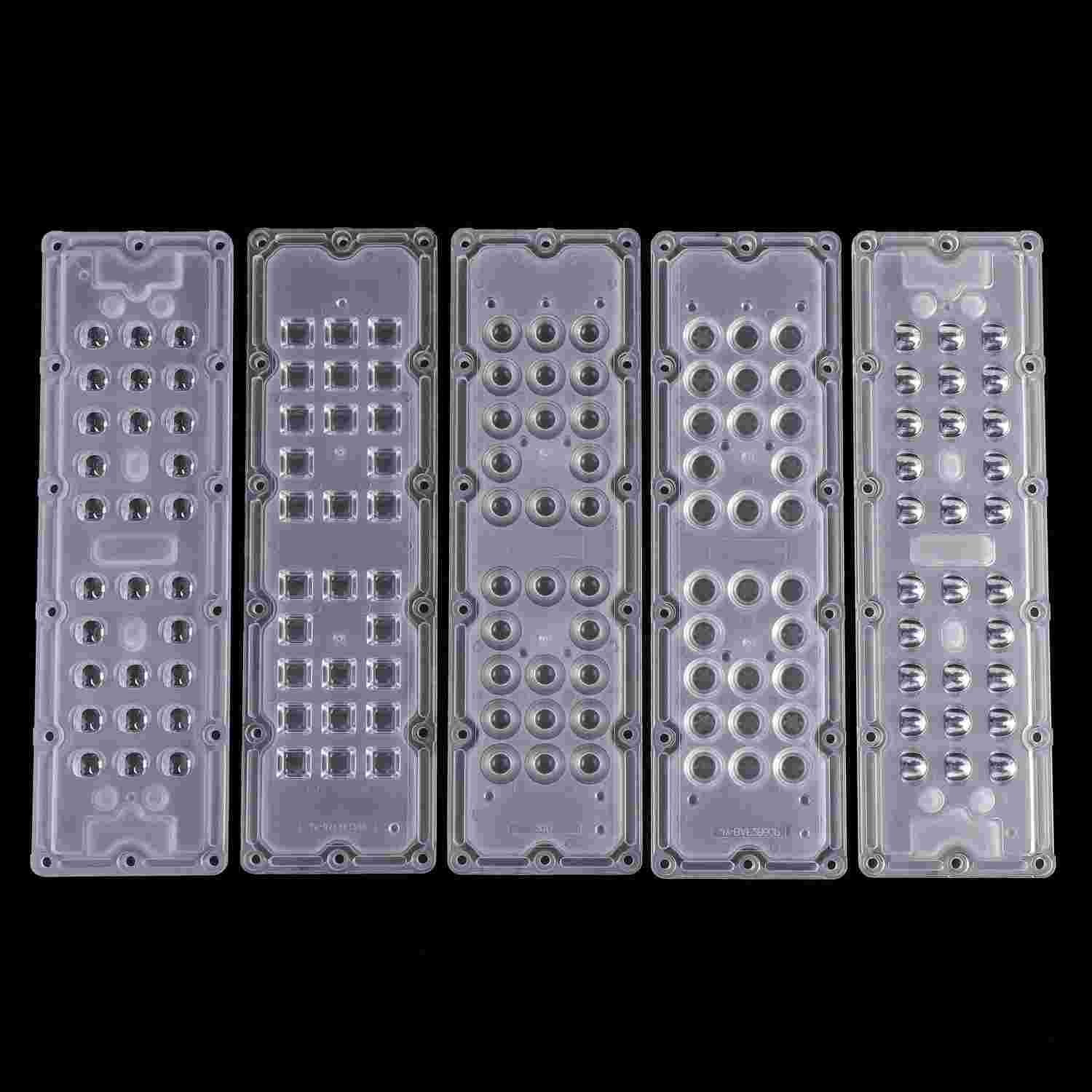

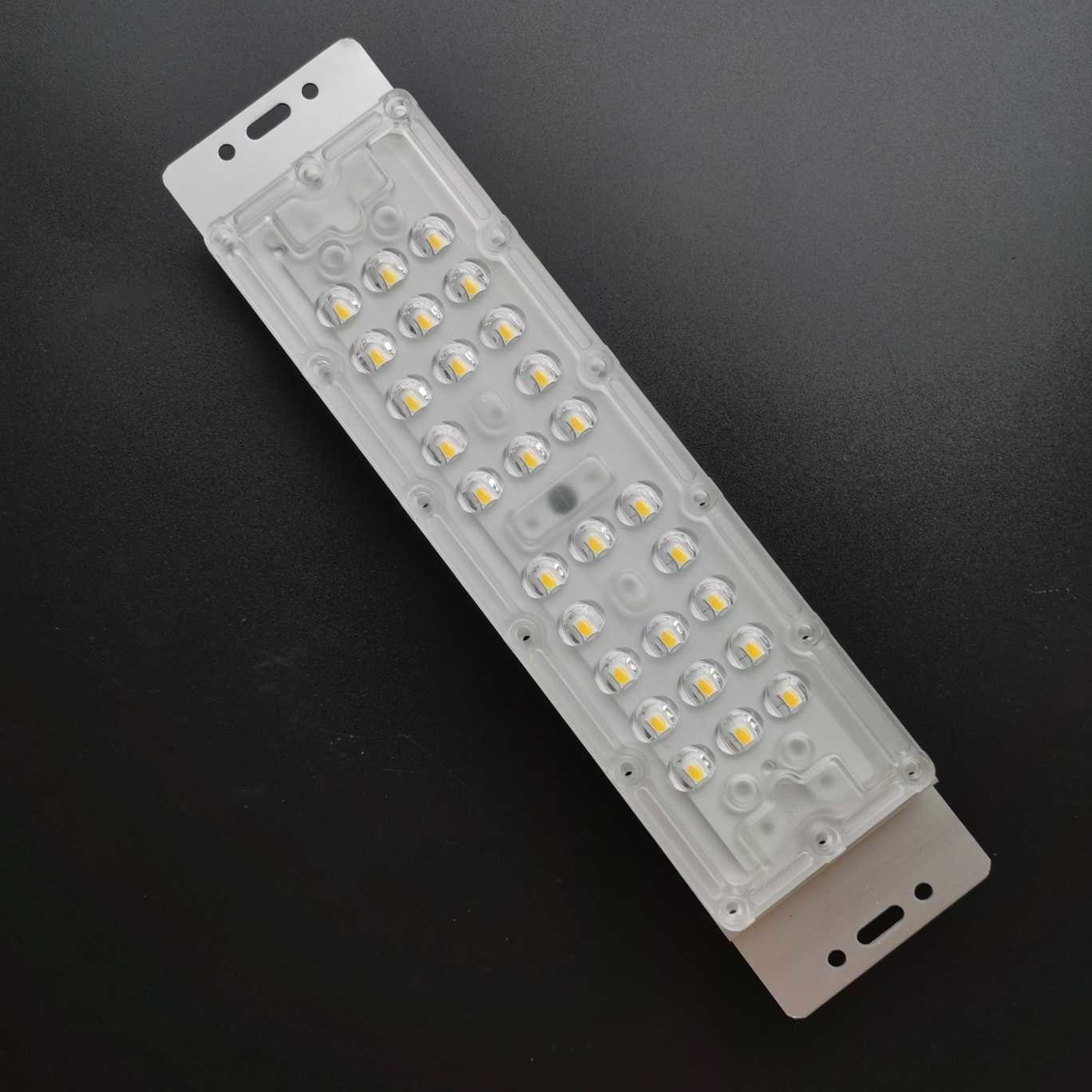

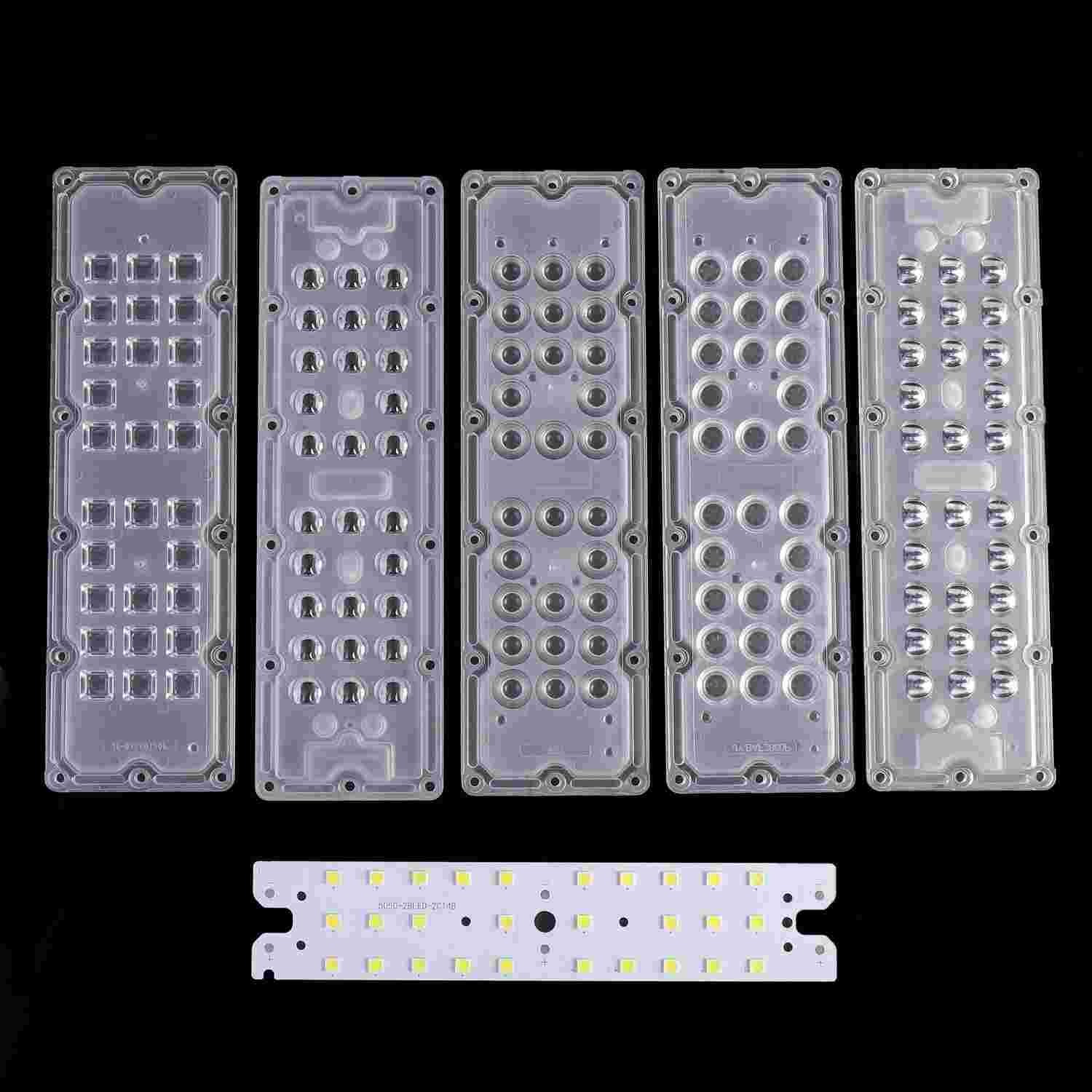

The Pictures of New Design 28W SMD 5050 Led Street Light Components For Road Lamp:



New Design 28W SMD 5050 Led Street Light Components For Road Lamp 0

New Design 28W SMD 5050 Led Street Light Components For Road Lamp 1
