50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W

Good quality LED Street Light Components for sales
Good quality LED Street Light Components for sales
Believe that our cooperation will be longer and larger @_@

—— Stanly

I'm really impressed with your services.Really appreciate it. Many Thanks !

—— Mr Luis

Thank you my friend and I look forward to doing a lot of business with you for many years because you always take care of me my friend !

—— Mr Rahim

You and your teams are so professional! We are happy with your products.

—— Nicolas Boetsch

I received the goods ,the goods properly described ,good packaging .I'm very satisfied .Thanks you very much .

—— Nguyen

Very professional ! I'm very glad to cooperate with you ,Ms Marshe !

—— Mr Rafael

I'm Online Chat Now

50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W

China 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W supplier
50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W supplier 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W supplier 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W supplier 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W supplier 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W supplier

Large Image :  50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-J64-3030-80x150

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Cartons
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Detailed Product Description
Product Name: 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W Model No.: SUN-J64-3030-80x150
Beam Angle: 80x150 Degree LENS Size: 130x130x6.9mm
Material: Optical Grade PC LED CHIP: 3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance: 91% Application: High Bay Light/Street Light
PCB Size: 115.59x115.59x1.5mm Circuit For PCB Board: 8 Series 8 Parallel

90
50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W

Quick Detail:

Model No:SUN-J64-3030-80x150
Material: PC
Beam Angle : 80x150 degree
Lens size:130x130mm
PCB size:115.59x115.59x1.5mm
Circuit: 8 series 8 parallel
Match LED: 3030SMD LED
Small footprint, high light output


Features :

  1. This SKD 64 LED Array lens with PCB Module is best design power lamps like 50-55w/100-110w  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 90 degree,120 degree  and TYPE4 .


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W

2, Model No

SUN-J64-3030-80x150

3, Main parts

64  Array lens , silicon gasket+PCB+LED

4, Lens Material

PC

5, Lens size

130x130mm

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

120 degree/ TYPE4

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days

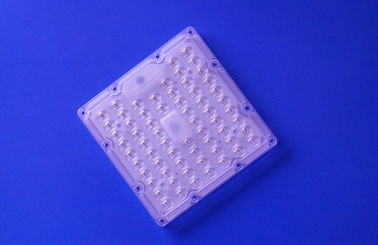

LENS Dimensions :
 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W

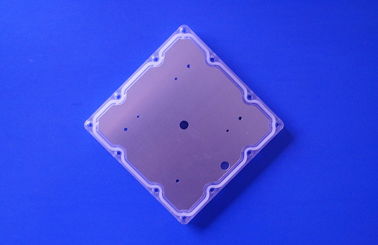

 Dimensions for silicon gasket:
50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W
Beam pattern:



80x150 Degree:
 50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W


90 Degree:



50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W

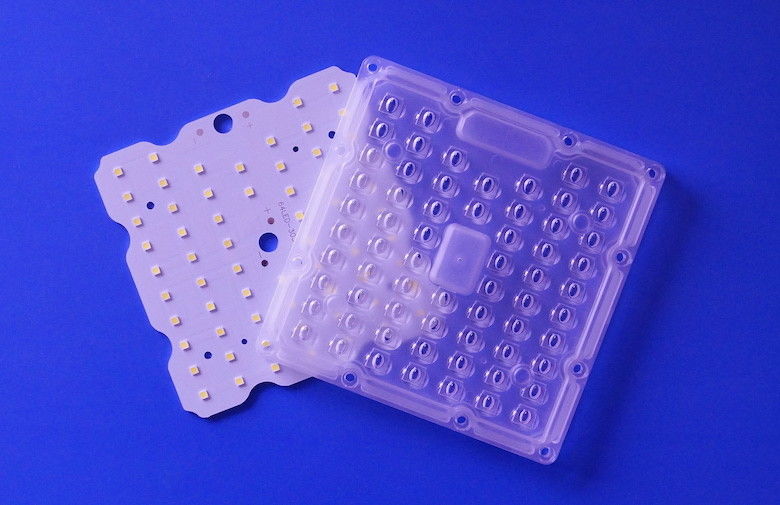

PCB board size:

50W Square LED Urban Lights Parts 80X150 Degree Lens With PH3030 SMD LED 160LM/W
