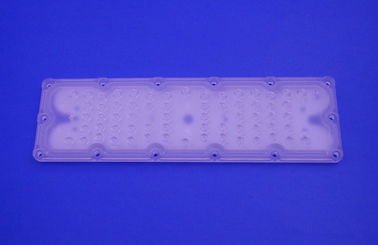

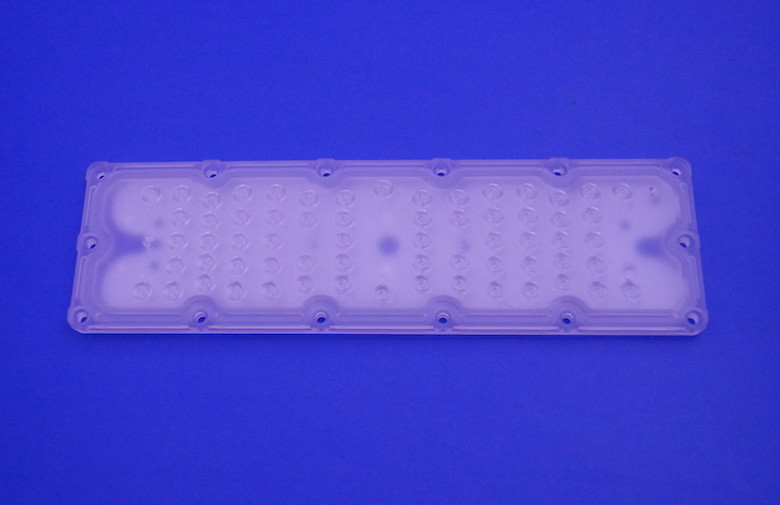

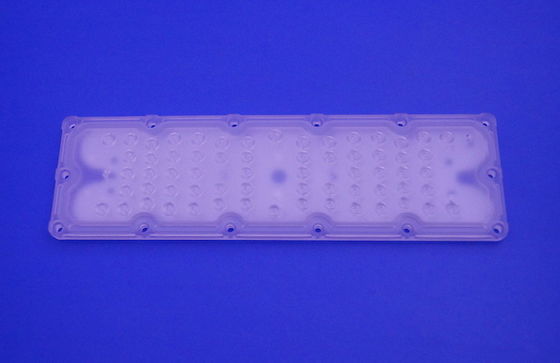

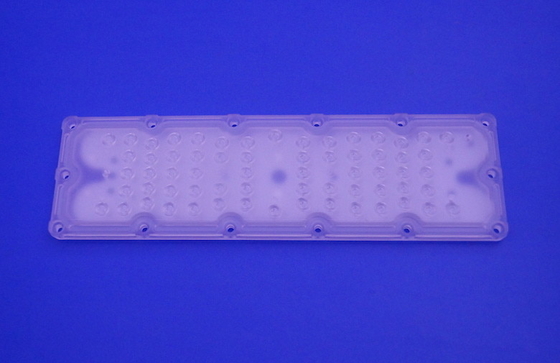

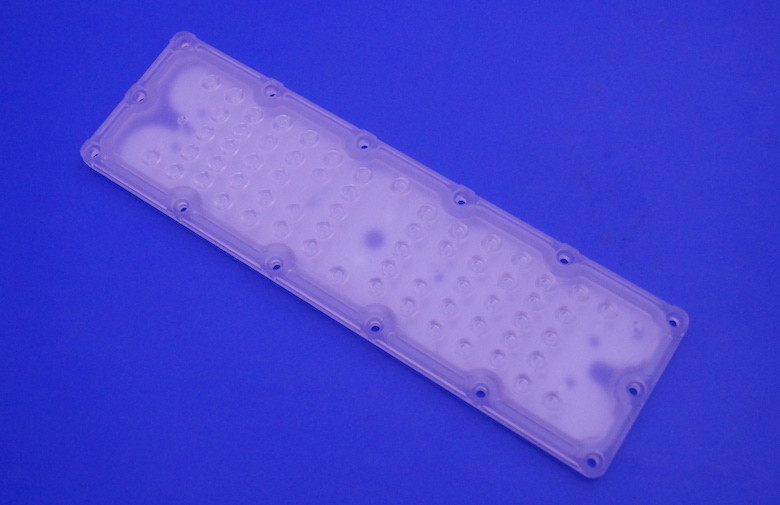

30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly

30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly

led street light replacement

led light components parts

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-SL64W-3030-30

Contact Us

Request A Quote
Product Details
Product Name:
30 Degree 64 In One LED Optical Array Lens With PCB Boards Horizontal Assembly
Model No.:
SUN-SL64W-3030-30
Beam Angle:
30 Degree
LENS Size:
236x70x6.9mm
Material:
Optical Grade PC
LED CHIP:
3030 SMD LED , 150mA, 6V, 140-150LM/W
Tranmittance:
91%
Application:
High Bay Light/Street Light
PCB Size:
219.1x53.54x1.5mm
Circuit For PCB Board:
8 Series 8 Parallel
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Cartons
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
5000pcs/months
Product Description


30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly


Quick Detail:

Model No:SUN-SL64W-3030-30
Material: PC
Beam Angle : 30 Degree
Lens size:236x70x6.9mm
PCB size:219.1x53.54x1.5mm
Circuit: 8 series 8 parallel
Match LED: 5050 SMD LED
Small footprint, high light output


Features :

  1. This SKD 64 LED Array lens with PCB Module is best choice to design power lamps like 40w 50w  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120 degree and Vertrial 80x150 degree.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly

2, Model No

SUN-SL64W-3030-30

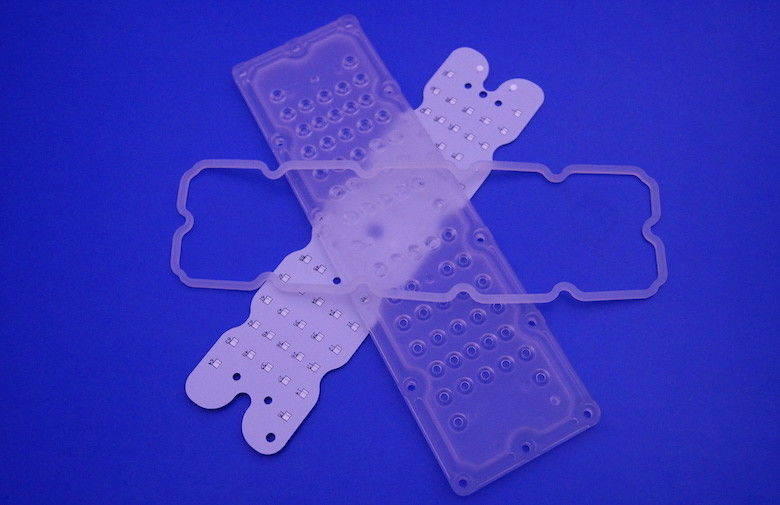

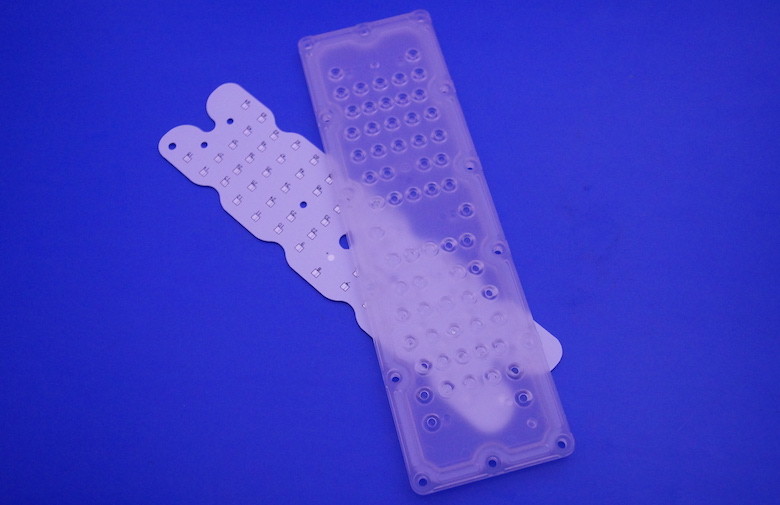

3, Main parts

64 Array lens , silicon gasket+PCB+ 3030 SMD LED

4, Lens Material

PC

5, Lens size

236x70MM

6, Transmittance

91%

7,LEDS

Orginal package 3030SMD LED, 140-150LM/W, 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

30 Degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



LENS Dimensions :

30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 0

PCB board size:30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 1

Beam pattern:

30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 2
 30 Degree :
 30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 3
 60 Degree:
30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 4
90 Degree:


 30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 5

90x150 Degree:

30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 6

80x150 Degree:

30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 7


 30 Degree 64 in One LED Optical Array Lens With PCB Boards Horizontal Assembly 8
