90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W

90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W

led street light fixtures

led light components parts

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

SGS,ROHS

Model Number:

SUN-SL56W-3030-90x120

Contact Us

Request A Quote
Product Details
Product Name:
90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W
Model No.:
SUN-SL56W-3030-90x120
Beam Angle:
90x120 Degree
LENS Size:
256.6X78.6X7.1mm
PCB Size:
233X55x1.5mm
Circuit:
7 Series 8 Parallel
LED CHIP:
1W 3030SMD LED,140-150lm/w , 150mA, 6V
Material:
Optical Grade PC
Tranmittance:
93%
Application:
Street Light/ High Bay Light
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
1pc/bag 0.18KG/SET
Delivery Time
3-4 working days
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
10000pcs/months
Product Description

90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W

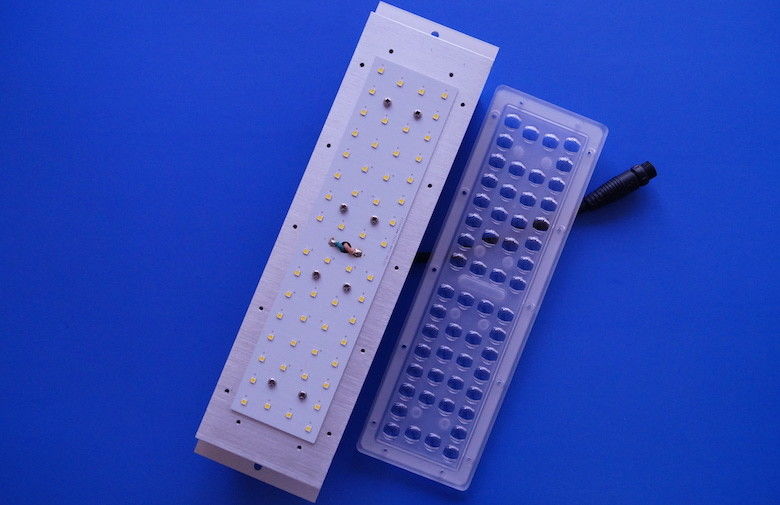

90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W 0



Quick Detail:



Model No:SUN-SL56W-3030-90x120

Material: PC

Beam Angle : 90x120 degree

Lens size:256.6x78.6x7.1mm

Circuit: 7 series 8 parallel

Led chips: 3030SMD 1W LED

Lense array of 56 LEDs

Small footprint, high light output





Features :



  1. This SKD 56W LED Array lens with PCB Module is best design power lamps like 56W,112W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 30/60/90/30X70/60X90/145X70/80X155 degree etc.



Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





Specifications:



1, Product Name

90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W

2, Model No

SUN-SL56W-3030-90x120

3, Main parts

Array lens, silicon gasket, PCB board with LED

4, Lens Material

PC

5,Size

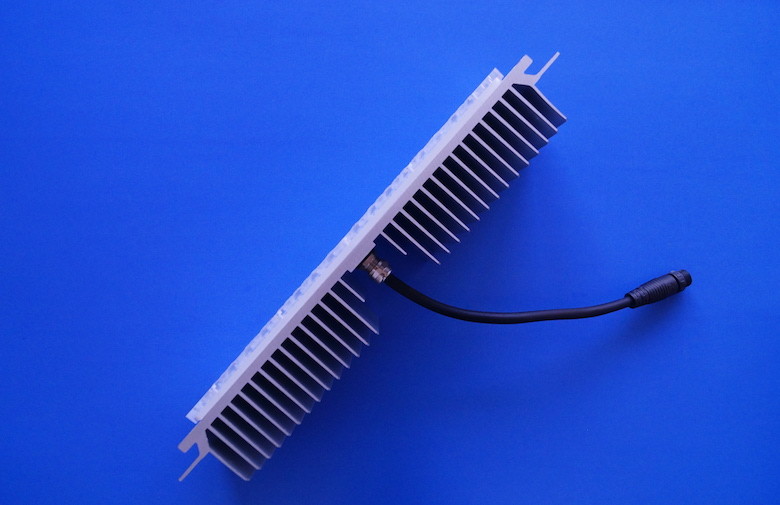

256.6x78.6x7.1mm for lens/ 233x55x1.5mm for PCB Board;310.8x41.79x82.00mm For Heat sink.

6, Transmittance

93%

7,LEDS

3030SMD LED 1W

8, Sample

3-4 work day

9, Delivery

5-7 work days for 300 sets

10, Angle

90 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CNF

Sample availability

YES

Delivery time

3-4 working days





Competitive Advantage:



1). Using high quality for 3030SMD LED Series.

2). CE driver, very easy for repair/replacement
3). Higher lumen compared to similar models of others
4). Positive cooling technology
5). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
6). Industry-leading thermal management utilizing technology
7). Top quality with warranty of 2 years warranty
8). LM80 testing reports available



56W LENS Dimensions and Beam Pattern:

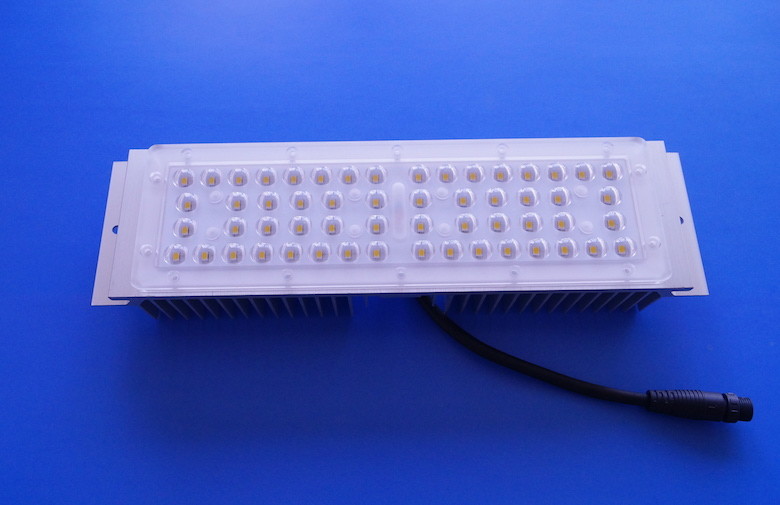

90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W 1





Beam angle:

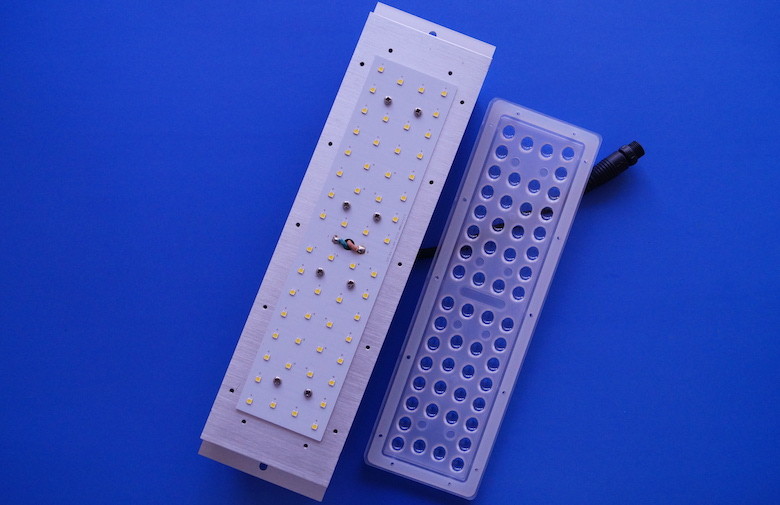

90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W 2

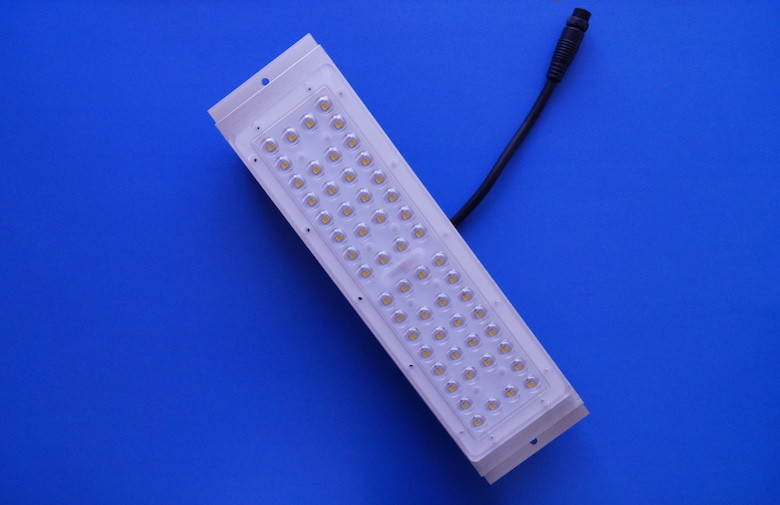

90X120 Degree SMD LED Module 50W Street Lights Heat Sink 160LM/W 3
