160lm/w 72 SMD 3030 LED Module Lighting PCB Module 50W Outdoor Lighting Parts

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-SL72-3030-80X150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Cartons
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Contact Now

Detail Information

Product Name: 160lm/w 72 SMD 3030 LED Module Lighting 50W Outdoor Lighting Parts Model No.: SUN-SL72-3030-80X150
Beam Angle: 80x150 Degree LENS Size: 250x74x6.15mm
Material: Optical Grade PC LED CHIP: 3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance: 91% Application: High Bay Light/Street Light
Kit: Gasket And Lens+PCB+ 3030SMD LED+Heat Sink PCB Size: 226x57.9x1.5mm
Circuit: 8 Series 9 Parallel Heat Sink Size: 300x70x40mm
Other Angle: 60 Degree 90 Degree

Product Description

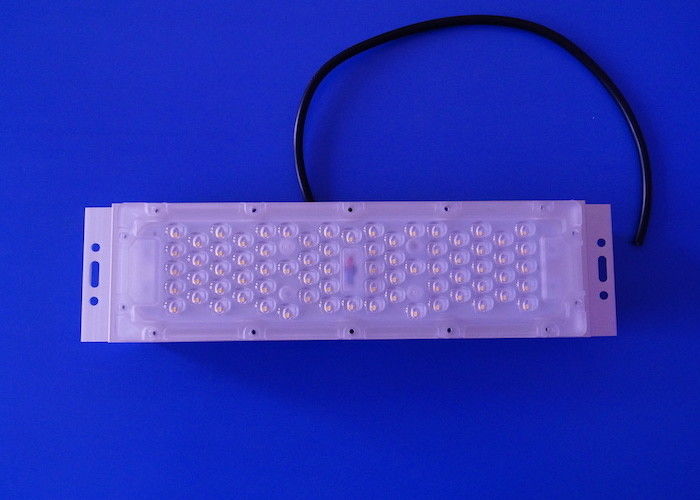

  160lm/w 72 SMD 3030 LED Module lighting 50W Outdoor Lighting Parts



160lm/w 72 SMD 3030 LED Module Lighting PCB Module 50W Outdoor Lighting Parts


Product Feature:



1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use Ph3030 leds ,High quality leds guarantee long life .
3. We have a competitive price for Ph3030 leds .
4. We can according your require to design new Lens & Board.
5. This SKD 72 LED Array lens with PCB Module is best design power lamps like 50W for per module.

6. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:


1, Product Name

160lm/w 72 SMD 3030 LED Module lighting 50W Outdoor Lighting Parts

2, Model No

SUN-SL72-3030-80X150

3, Main parts

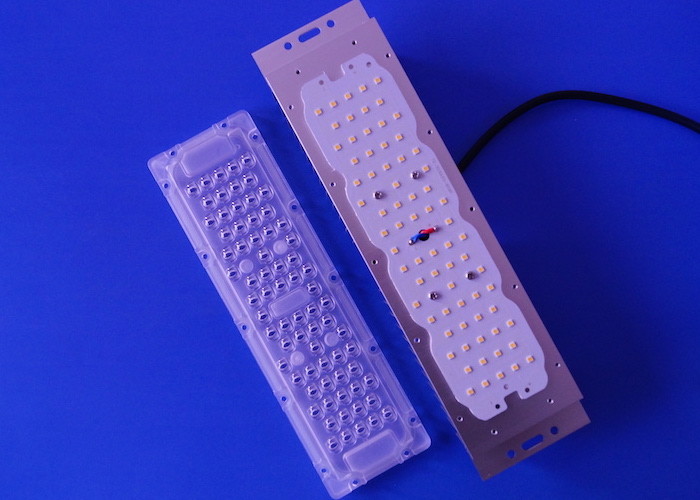

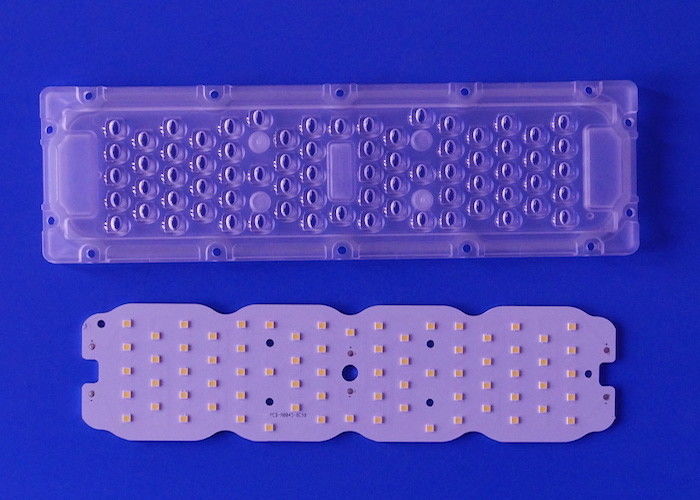

 Array lens , silicon gasket+PCB+LED+HEAT SINK

4, Lens Material

PC

5, Lens size

250X74MM

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

80x150 degree /60 degree/90 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Model No. Power(W) Angle(Degree) Lens size(mm) PCB size(mm) Circuit

SUN-LD3x12-3030-90x90

30 90x90 250x74



228x53x1.5



6S6P

SUN-LD3x12-3030-60x140

30 60x140 120x110

89x89x1.5

6S6P

SUN-LD4X12-3030-60X60

40 60x60 250x74



228x53x1.5



6S8P

SUN-SL56W-3030-30/60/90

50 30/60/90

256.6x78.6



233x55x1.5



7S8P

SUN-SL64W-3030-30/60/90

50 30/60/90 236x70

219.1x53.54x1.5

8S8P

SUN-SL72-3030-60/90



50 60/90 250x74

226x57.9x1.5

8S9P



160lm/w 72 SMD 3030 LED Module Lighting PCB Module 50W Outdoor Lighting Parts

Array lens series:
160lm/w 72 SMD 3030 LED Module Lighting PCB Module 50W Outdoor Lighting Parts
