3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material

China 3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material supplier
3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material supplier 3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material supplier 3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material supplier 3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material supplier 3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material supplier

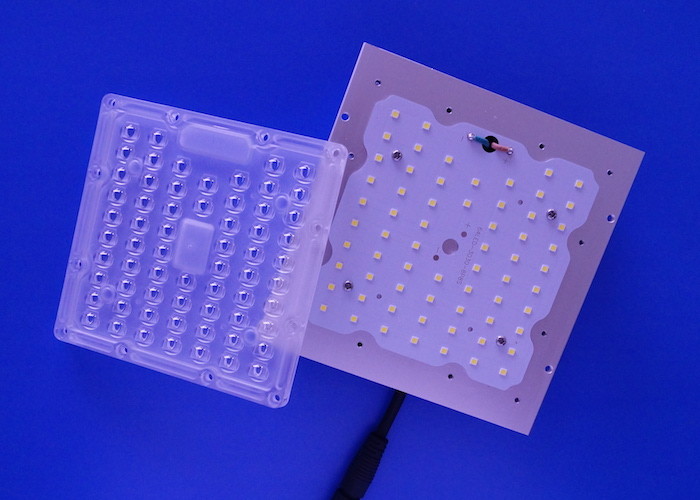

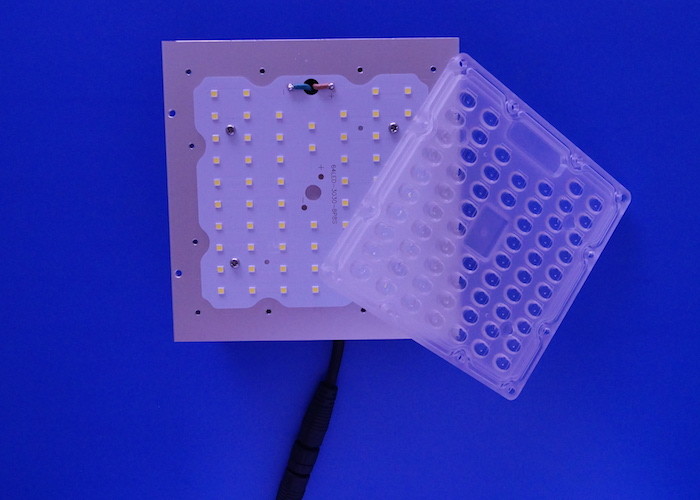

Large Image :  3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-J64-3030-80x150

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Cartons
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Contact Now
Detailed Product Description
Product Name: 30W 40W 50W SMD Street Light Led Module 64 LED 3030SMD 1W 80x150 Degree Model No.: SUN-J64-3030-80x150
Beam Angle: 80x150 Degree LENS Size: 130x130x6.9mm
Material: Optical Grade PC LED CHIP: 3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance: 91% Application: Street Lamps, Projecting Lights, Tunnel Lights, Square Lighting, Road Light, High Bay Light
PCB Size: 115.59x115.59x1.5mm Circuit For PCB Board: 8 Series 8 Parallel

30W 40W 50W SMD Street light led module 64 LED 3030SMD 1W 80x150 Degree



Quick Detail:

Model No:SUN-J64-3030-80x150
Material: PC
Beam Angle : 80x150 degree
Lens size:130x130mm
PCB size:115.59x115.59x1.5mm
Circuit: 8 series 8 parallel
Match LED: 3030SMD LED
Small footprint, high light output


3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material

Features :

  1. This SKD 64 LED Array lens with PCB Module is best design power lamps like 50-55w/100-110w  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 60x60 degree,90x90degree, 80x150 degree, 60x140 degree and so on.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

30W 40W 50W SMD Street light led module 64 LED 3030SMD 1W 80x150 Degree

2, Model No

SUN-J64-3030-80x150

3, Main parts

64  Array lens , silicon gasket+PCB+LED+heat sink

4, Lens Material

PC

5, Lens size

130x130mm

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

80x150 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days

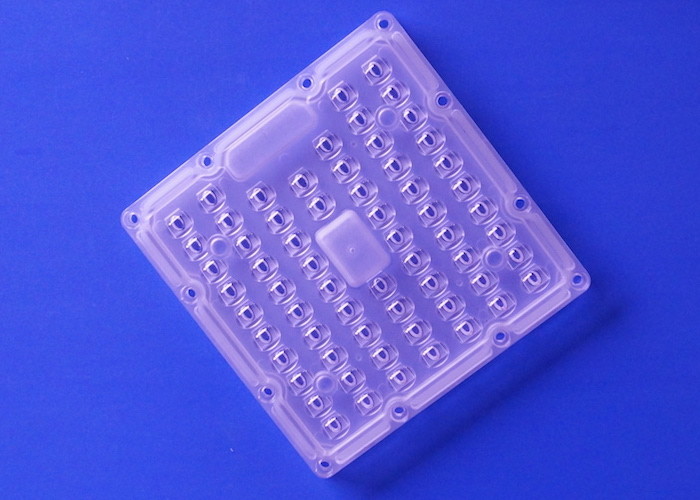

LENS Dimensions :

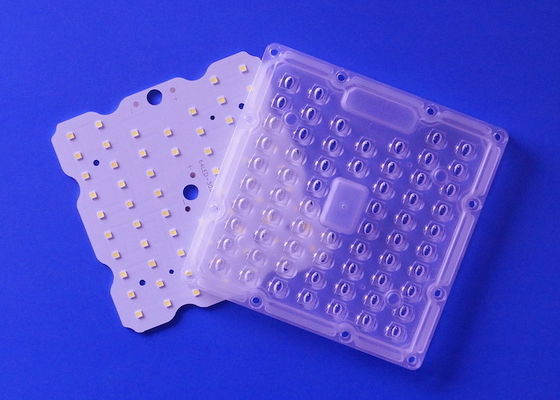

 3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material
 Dimensions for silicon gasket:
3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material
Beam pattern:


80x150 Degree:



3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material

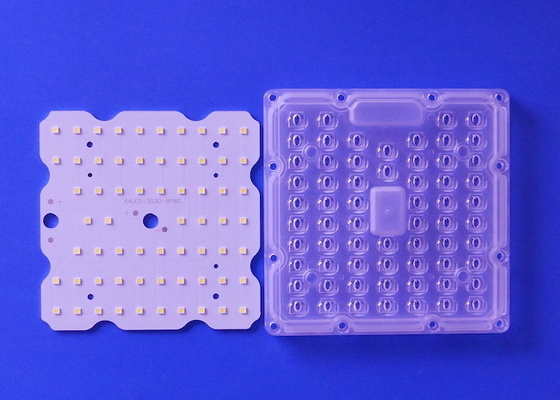

PCB board size:

3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material
 3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material



3030 SMD LED PCB Module , Led Light Fittings 64 LED 3030SMD 1W Optical Grade PC Material
