16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M

China 16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M supplier
16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M supplier 16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M supplier 16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M supplier

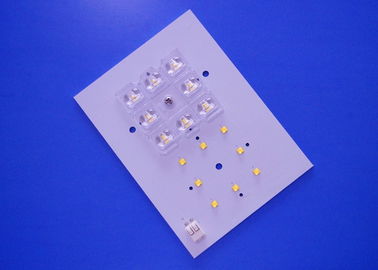

Large Image :  16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: 16 LED module

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Cartons
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Contact Now
Detailed Product Description
Product Name: New Design 16 LED Custom Made PCB Board With 8 LED LENS TYPEII-M Model No.: 16 LED Module
Beam Angle: 147x72 Degree TPII-M LENS Size: 50x50mm
Material: Optical Grade PC LED CHIP: XTE2 XPG3
Tranmittance: 91% Application: High Bay Light/Street Light/Public Light/ Tunnel Light
Circuit Of PCB: 4 Series 4 Parallel

New design 16 LED custom made PCB board with 8 LED LENS TYPEII-M

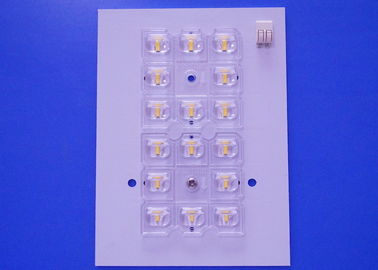

16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M

Quick Details:
PCB Board:
PCB SIZE:128X95X2.0mm

Layer:1
Board thickness:2mm
Solder mask: white
Thermal Conductivity:1w/m.k
Test way:100% test
LED CHIP: XTE/XPG3/3535 SMD
Material: Aluminium
Dense array of 18 led lens/Small footprint, high light output


LED LENS Details:

Beam angle:147x72 degree TPII M

It can be customize according your require.

XP-G3 LED:

XP-G3 S4:164-179LM/W
XP-G3 S3:156-170LM/W



Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:


1, Product Name

New design 16 LED custom made PCB board with 8 LED LENS TYPEII-M

2, Model No

 16 LED MODULE

3, Main parts

 16 led board with XTE2 LED/XPG3 LED+LENS

4, Lens Material

PC

5, Lens size

50X50MM

6, Transmittance

91%

7,LEDS

XTE/XPG3 3535 LED

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

TYPE2-M 147x72 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia


Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



LENS Dimensions :
 16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M
Beam pattern:

16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M


Related for 16 LED module:

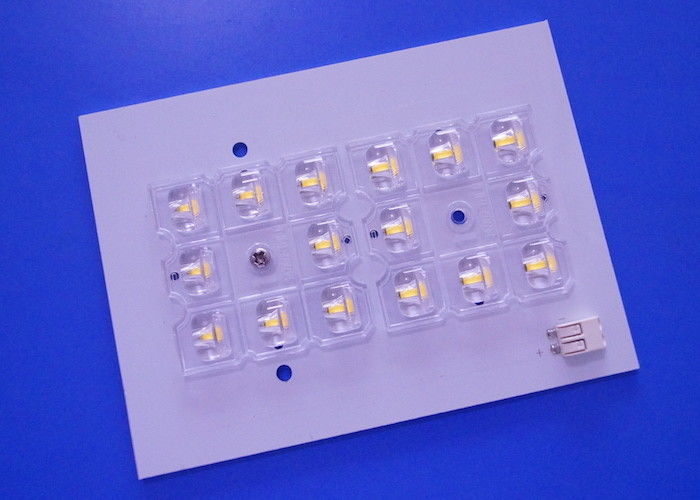

16 LED Street Light Module PCB Board White Solder Mask With 8 LED Lens Typeii-M

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
