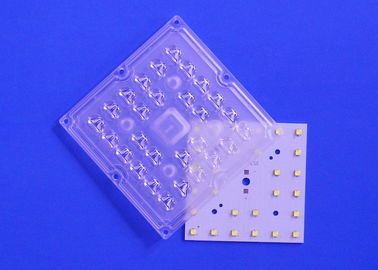

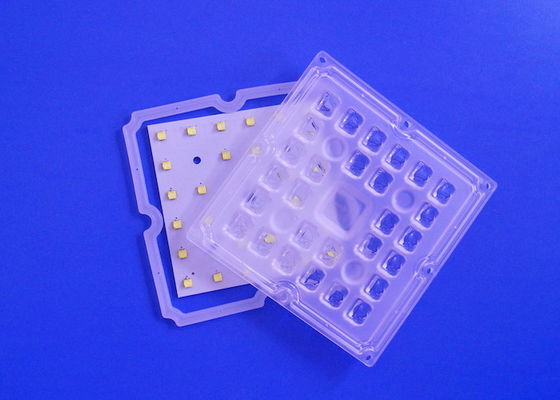

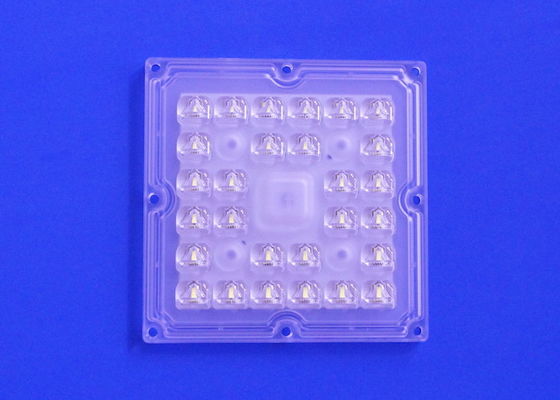

Optical Square Waterproof Led Module 28W 30W 50W 28 LED XTE2 XPG3
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 28W 30W 50W 28 LED XTE2 XPG3 3535 1-5W LED Square Module 100x100mm | Model No. | SUN-D100-28H1-155X70-TPIII-M |
|---|---|---|---|
| Beam Angle | 155x70 Degree | LENS Size | 100x100x8.5mm |
| Material | Optical Grade PC | LED CHIP | XTE2 XPG3 3535 SMD LED |
| Tranmittance | 91% | Application | High Bay Light/Street Light/Square Lighting/Projection Lam And So On |
| PCB Size | 76x76x1.5mm | Circuit For PCB Board | 14 Series 2 Parallel |
| Highlight | Optical Square Waterproof Led Module,XTE2 Waterproof Led Module,28W Street Light Lens Board |
||
Product Description
28W 30W 50W 28 LED XTE2 XPG3 3535 1-5W LED square module 100x100mm
Quick Detail:
Model No:SUN-D100-28H1-155X70-TPIII-M
Material: PC
Beam Angle : 155X70 degree/ TPYE III -M
Lens size:100X100X8.5mm
PCB size:76X76X1.5mm
Circuit:14 series 2 parallel
Match LED: 3535 SMD LED/ 3030SMD LED
Small footprint, high light output
Features :
- This SKD 28 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 28-50W and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree, 150 degree, 117x52 degree, 100x1400 degree, 181x51 degree.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
28W 30W 50W 28 LED XTE2 XPG3 3535 1-5W LED square module 100x100mm |
|
2, Model No |
SUN-D100-28H1-155X70-TPIII-M |
|
3, Main parts |
28 Array lens , silicon gasket+PCB+ XTE/XPG 3535 SMD LED |
|
4, Lens Material |
PC |
|
5, Lens size |
100X100X8.5MM |
|
6, Transmittance |
91% |
|
7,LEDS |
3535 SMD LED 3V, 1-5W |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 10000 sets |
|
10, Angle |
155X70 degree |
|
11, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
12, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
LENS Dimensions :
Beam pattern:
Rerated of lens:
Application:
