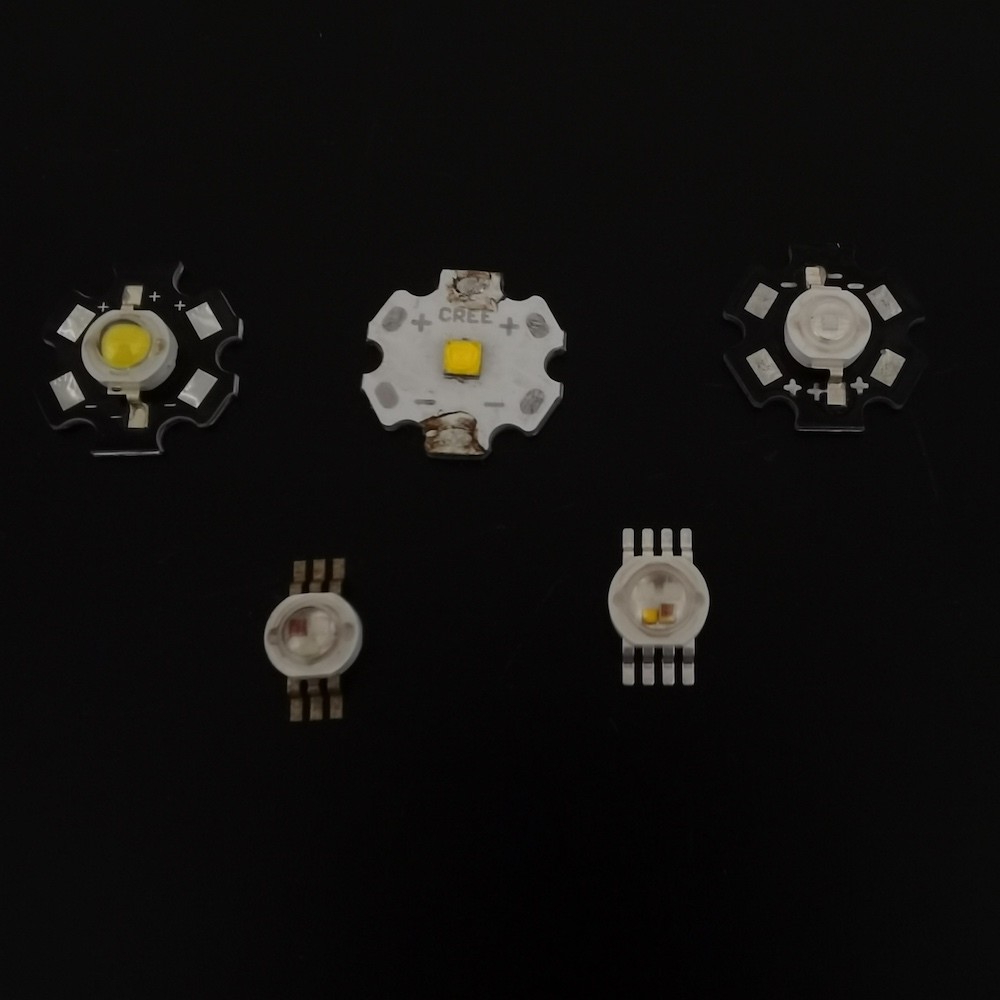

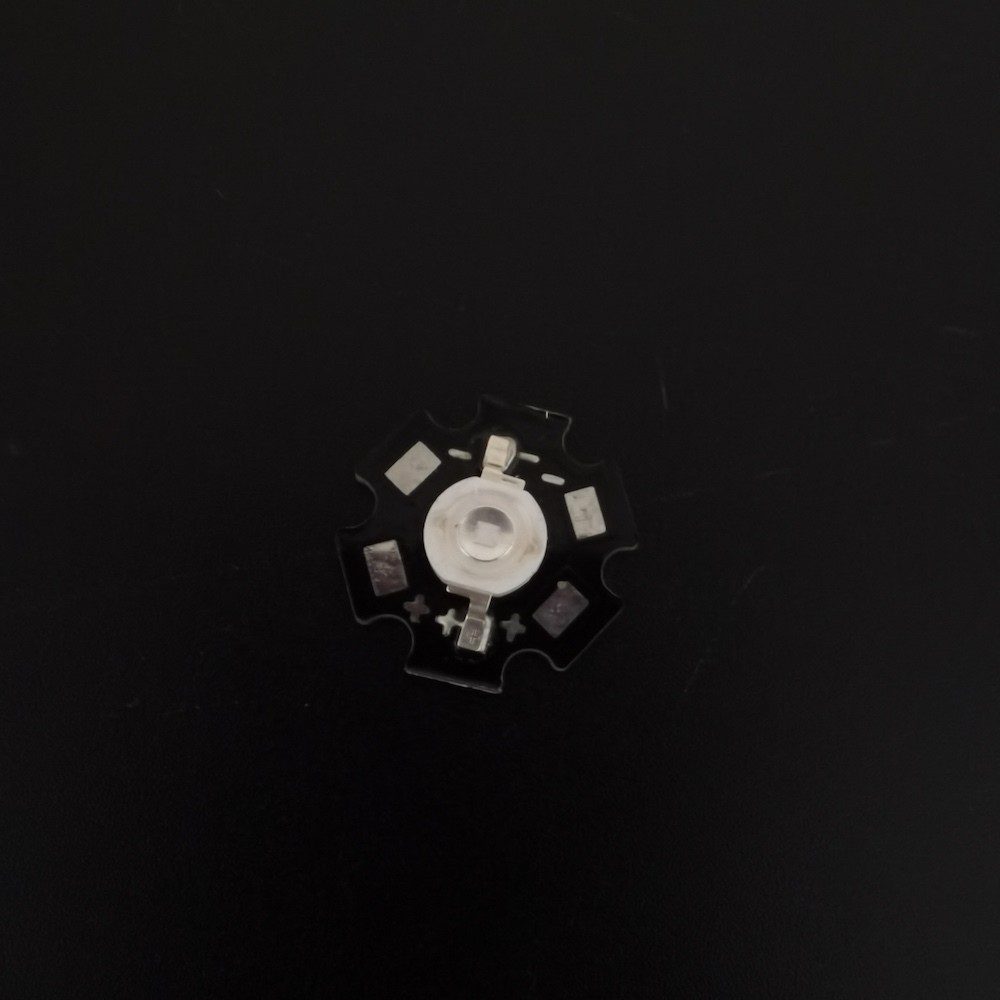

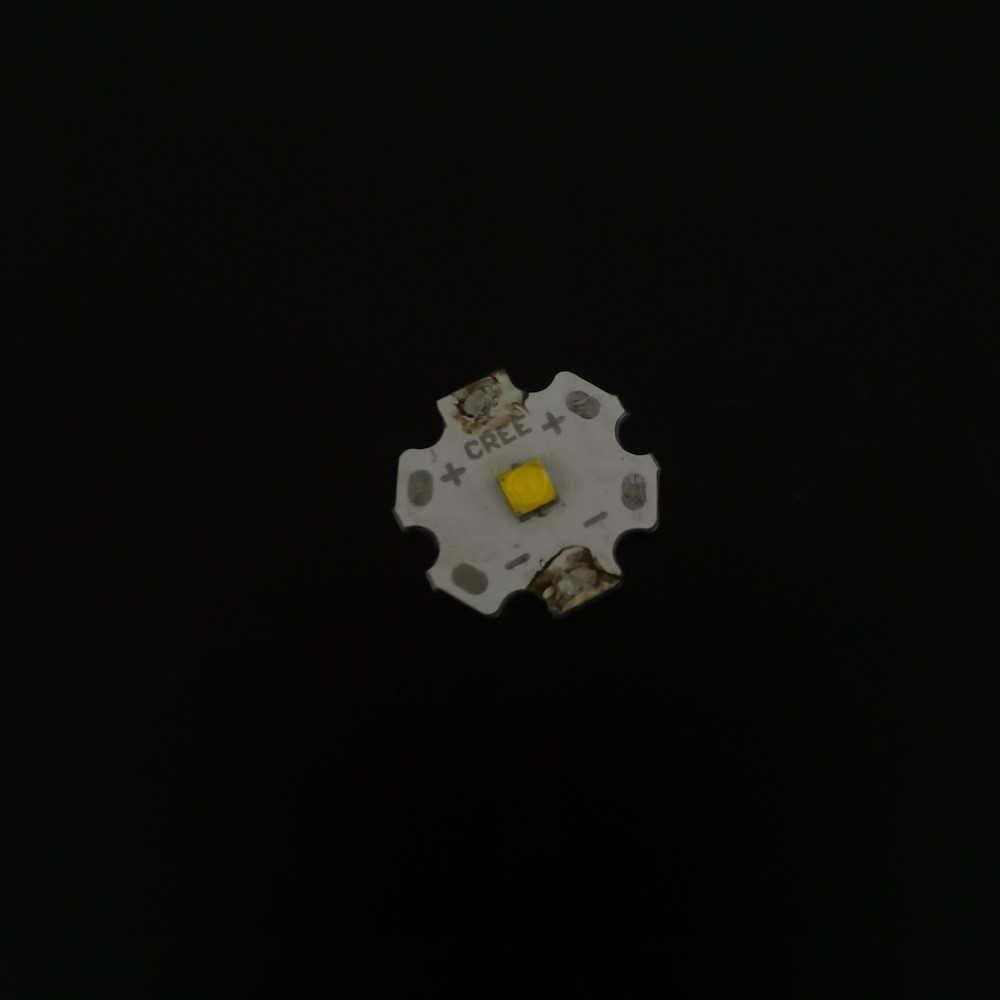

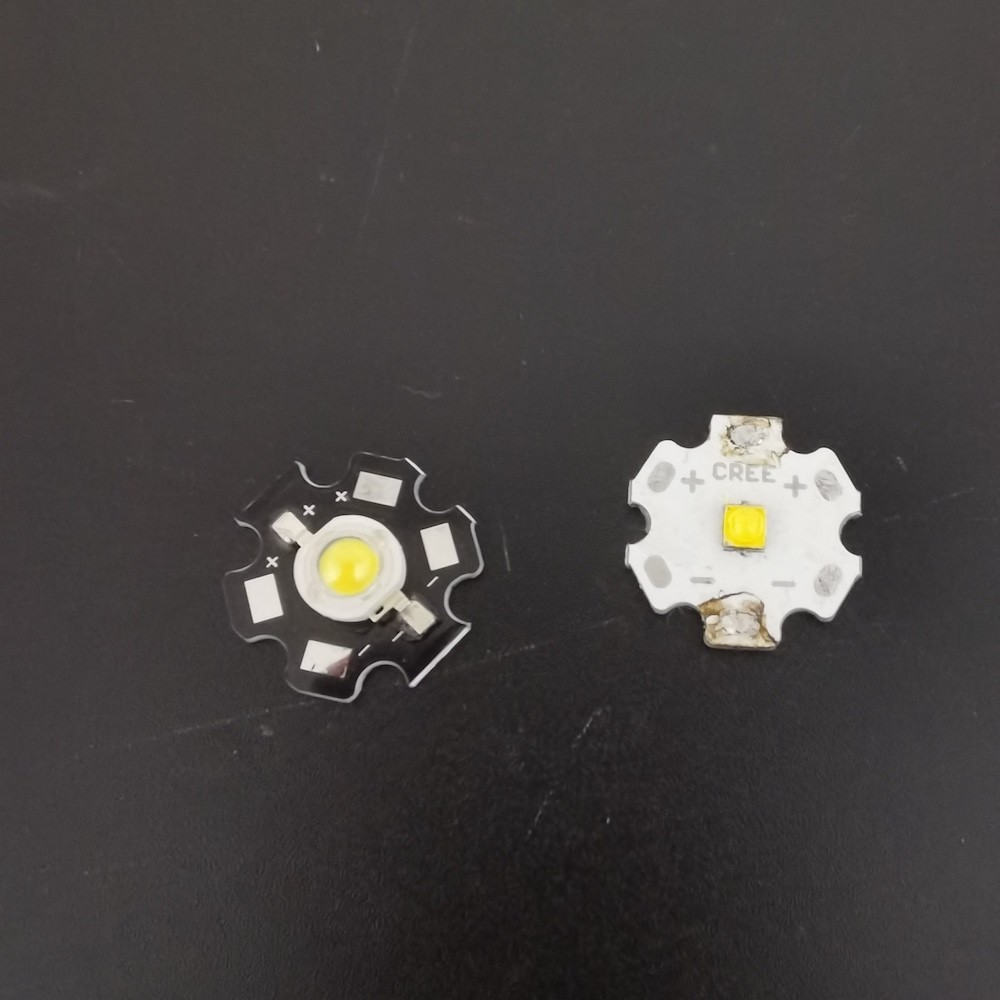

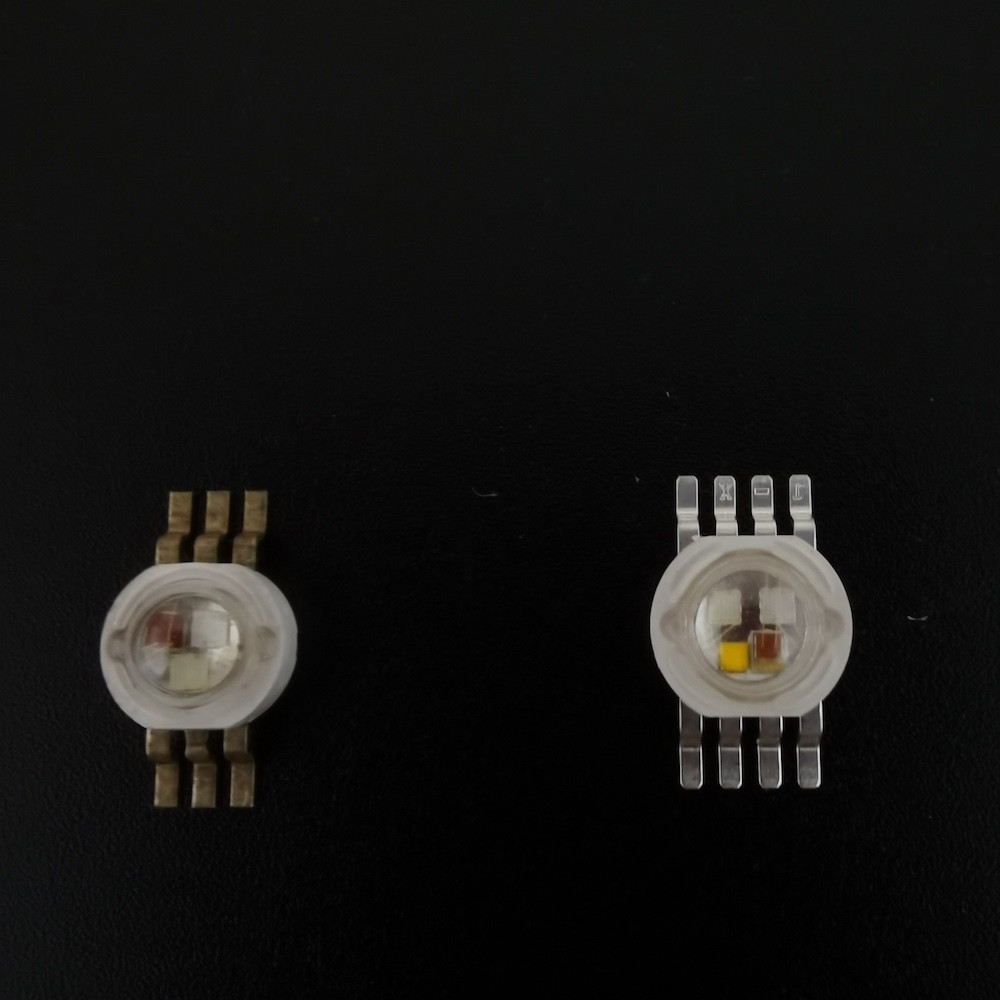

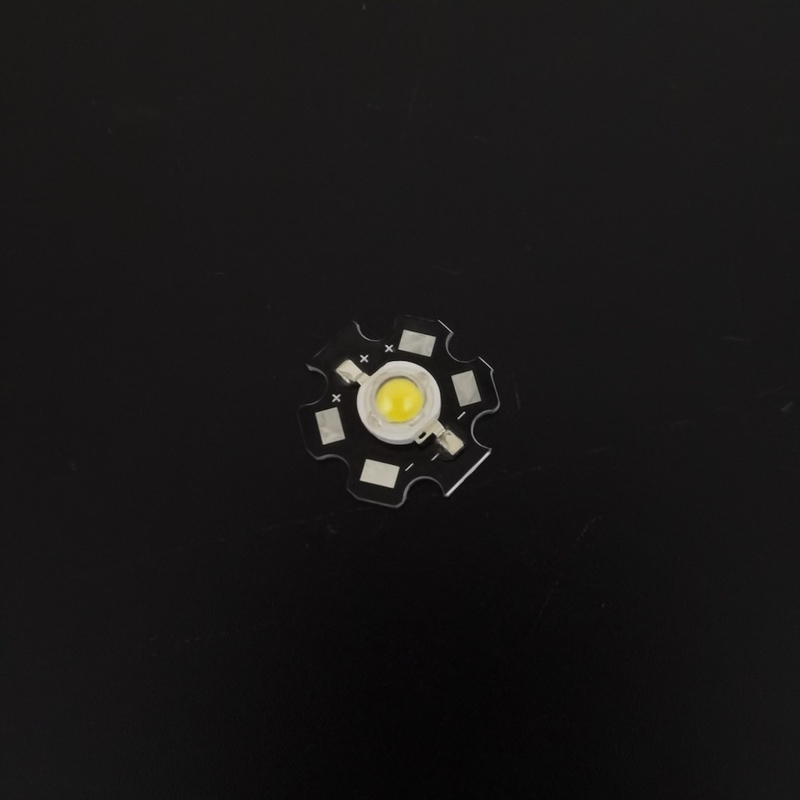

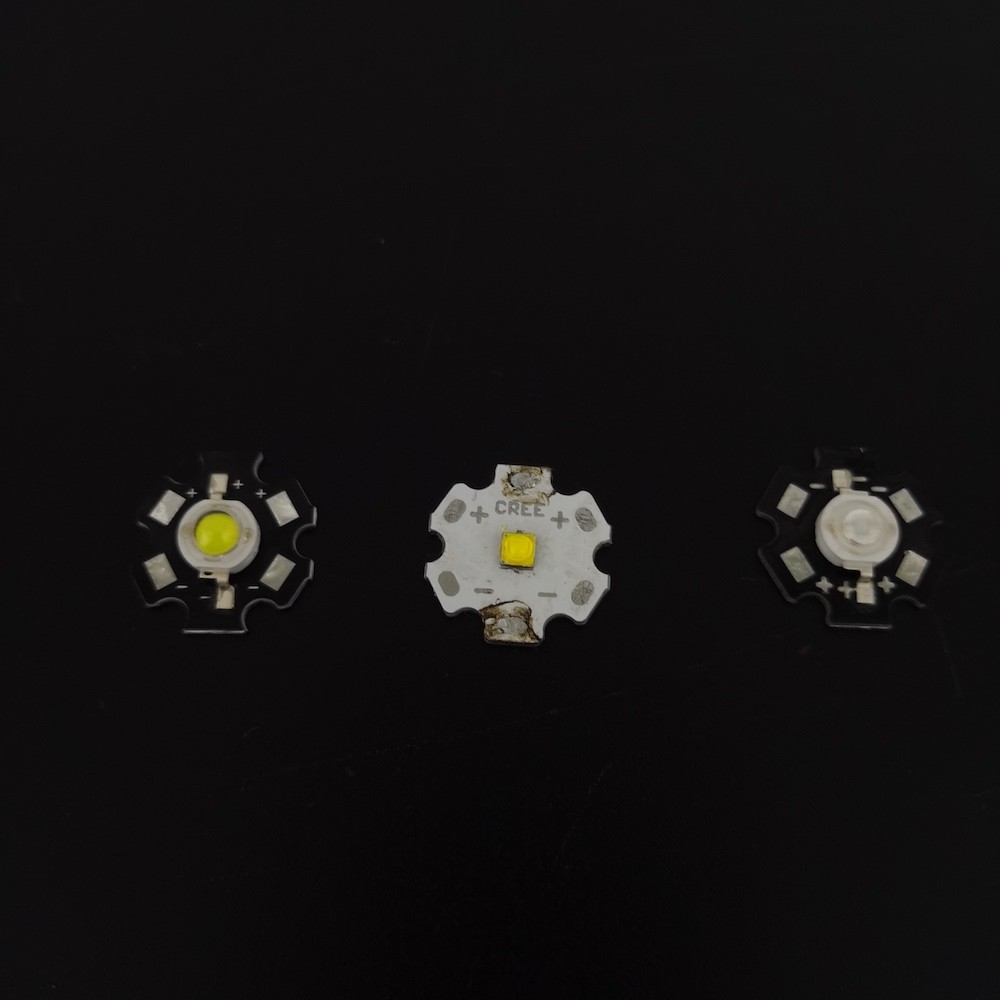

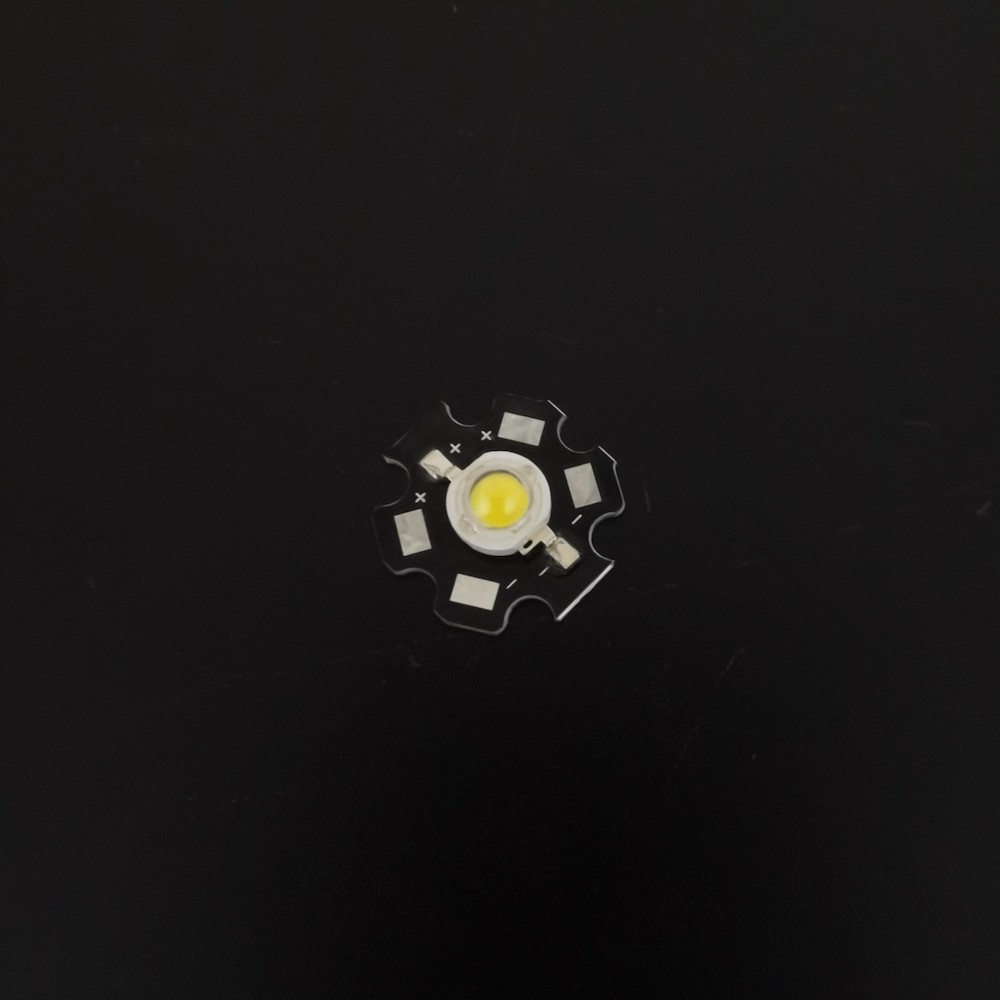

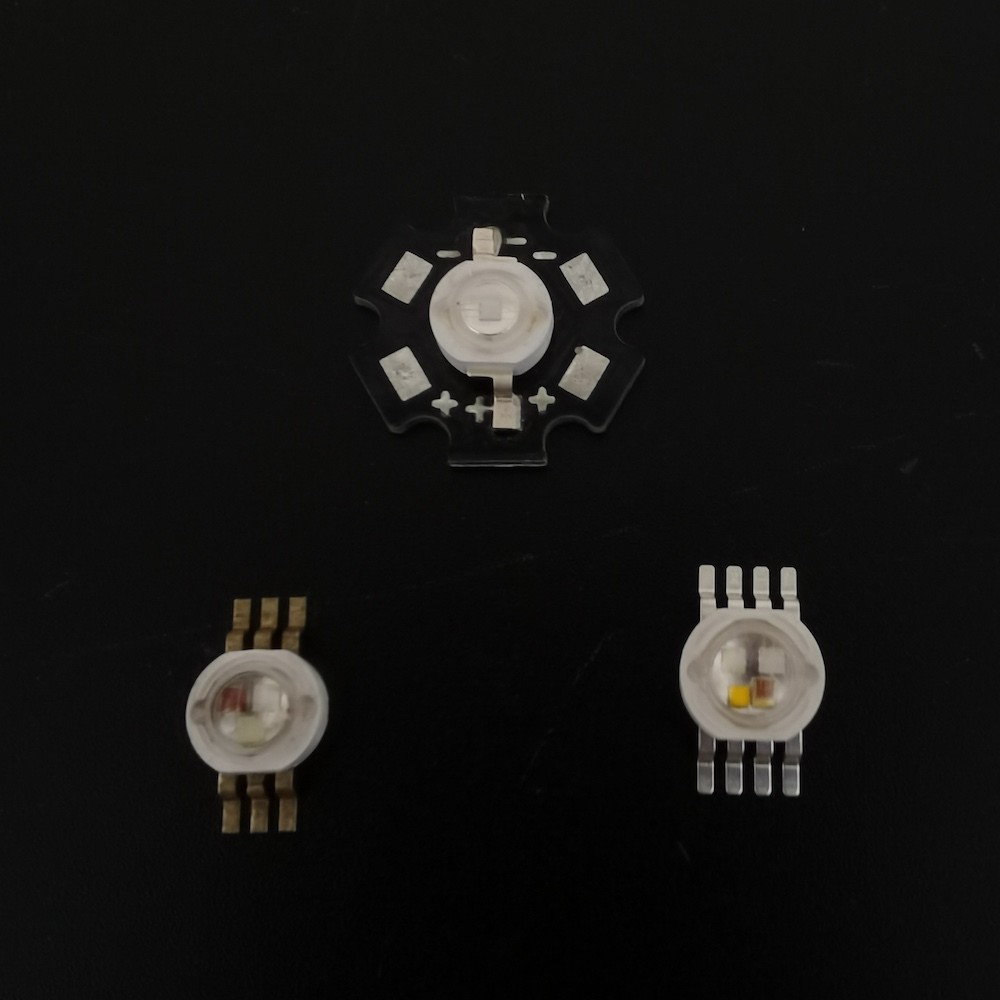

1W 120 Lumen High Power Led Epistar Chip with PCB
Quick Detail:
1.Model:SP1WNW120
2.Size: 14.8*7.9mm
3.Viewing angle: 120degree,90 degree , 60 degree
4.Voltage:3.0-3.6v
5.Current:350ma
6.Color temperature: 4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k,
7.Chips: Epistar chip
8.Luminous Flux:120-130lm for 1w
Usage: LED lighting , street light , flashlight , LED bulb, Halogen lamp,Table light ,Light strips etc.
Certificate: LM-80,ROHS
Description:
Best raw materials used in our LED production :
1)Chip: Bridgelux or Epistar 45MIL chip;
2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing);
3) Powder: USA Intermatix (good powder has better performance in lumens);
4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;
5) Led base:red/ black cooper base .
Super high Flux output and high Luminance ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow etc.
6)Free samples and 2 years warranty .
Specifications:
|
Product Name
|
1w 120 lumen high power led Epistar chip with PCB
|
|
Model No
|
SP1WNW120
|
|
Finishing
|
Reflow soldering
|
|
Material
|
Bridgelux chip or Epistar chip 45mil
|
|
MOQ
|
1000pcs
|
|
Size
|
14.8*7.9mm
|
|
Package
|
50pcs/reel ,1000pcs/box
|
|
Sample
|
1-3 work days
|
|
Delivery
|
3-4 work days
|
|
Certificate
|
ROHS
|
|
Quality gurantee
|
2 years warranty
|
|
Main market
|
Europe, America, Asia
|
Competitive Advantage for SUNSHINEOPTO :
1. About 6 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production.
5. Strong design with OEM Service and production capability.
Applications:
*General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
