Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
ROHS
Model Number:
SUN-L60x120ED807
Contact Us

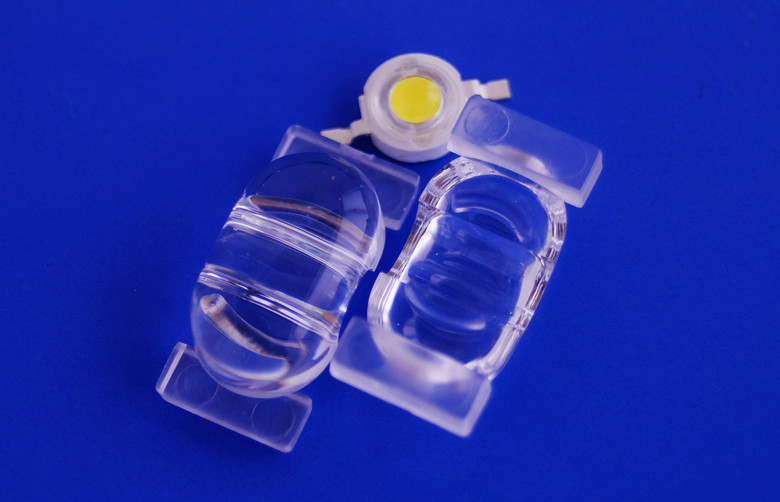

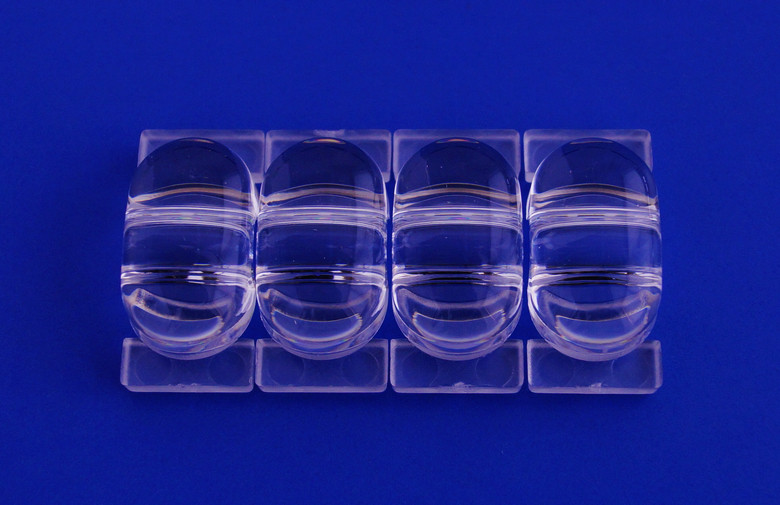

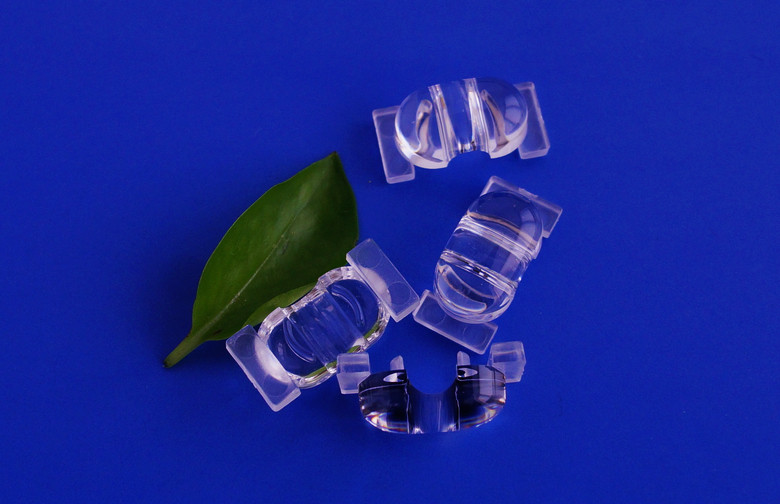

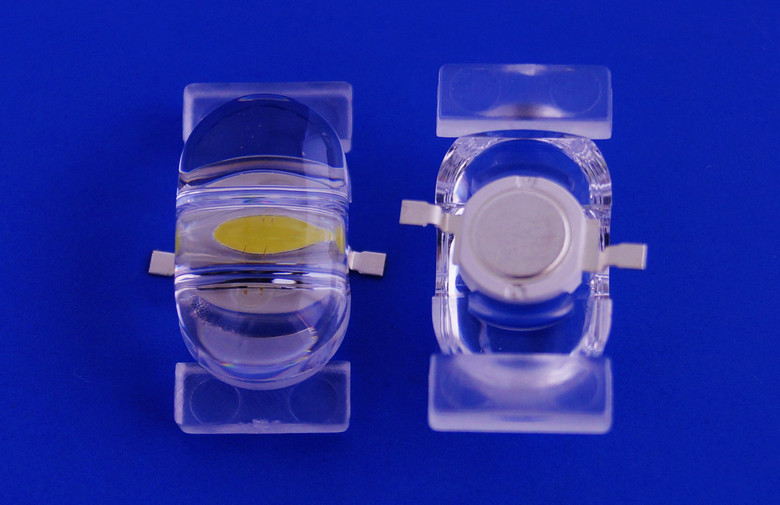

PMMA optical or PC Led street single lens , Led Optical Lens for 1W 3W Edison LEDS
Quick Detail:
1.Beam angle: 60 x 120 degree
2.Structure Mode:Plano
3.Lens size:22.6mm*10.5mm*9mm(l*w*h)
4.Material: PMMA optical or PC
5.Led chips:Edison(k2)
6. Application: LED Street Light, tunnel light
Specifications:
|
Model Number: |
SUN-L60x120ED807 |
|
Power |
1W|3W |
|
Lens size |
22.6mm*10.5mm*9mm(l*w*h) |
|
Led chips |
Edison(k2) |
|
Work Temp |
-40 to + 120 degree |
|
Transmittance |
93% |
|
Beam Angle |
60*120 degree |
|
Application |
LED Street Light,Tunnel Lamp |
Dimension:
Applications:
It is used in the street light, high way led lamp, tunnel lamp ,square lamp, road lamp, city lighting, parking spot lamp, track lighting fixtures, scenery area, retail lighting and other applications where high luminous flux is desired.
Competitive Advantage:
1. One-Stop Service of led components and 6 years specializing in High Power LED industry
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
