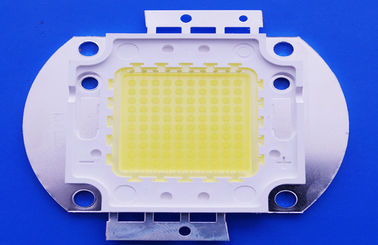

9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS

9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS

cob high power led

high power led module

Place of Origin:

Shenzhen,China

Brand Name:

Sunshineopto

Certification:

LM-80,ROHS

Model Number:

SP100W

Contact Us

Request A Quote
Product Details
Product Name:
9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS
Forward Voltage:
30-36V
Test Forward Current:
3500mA
CT:
2900-3200K , 4000-4500K , 4500-5000K,5000-5500K,5500-6000K,6000-6500K ,7000-9000K
Luminous Flux ::
9500-10500lm
Application:
LED Lighting , Street Light , Floodlight Etc.
Payment & Shipping Terms
Minimum Order Quantity
100PCS
Price
Need to negotiate
Packaging Details
12PCS/REEL
Delivery Time
3-4 work days for 1000pcs.
Payment Terms
T/T,PAYPAL,Western Union,Money Gram
Supply Ability
10000 pcs for one week.
Product Description

9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS

Quick Detail:

1.Model :SP100W
2.Led holder size :56X40mm
3.Forward Voltage :30-36V
4.Test Forward current : 3500mA
5.CT : 2900-3200K , 4000-4500K , 4500-5000K,5000-5500K,5500-6000K,6000-6500K ,7000-9000K
6.Luminous Flux : 9500-10500lm
7.RA >65
8.Reverse Voltage >18 Reverse
9.current(uA) <30 ESD Sensitivity (V) 3000
10.10 series 10 parallel

Usage: LED lighting , street light , Floodlight etc.
Certificate: LM-80,ROHS


Description:

Best raw materials used in our LED production :

1)Chip: Bridgelux or Epistar  45MIL chip;
2) Silicon glue: USA Dowcorning (good glue has less lighting decreasing);
3) Powder: USA Intermatix (good powder has better performance in lumens);
4) Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper) ;
5) Led base:red/ black cooper base .
Super high Flux output and  high Luminance  ,Designed for high current operation,Low thermal resistance ,SMT solder technology ,Lead Free product,ROHS compliant
We have many kind of color for your choice like : Warm white , Natural white , Cool white , Red , Blue , Green , Yellow etc.
6) Accept small Order &  2 years warranty .


Specifications:


Product Name

LED Module 100W High Power COB LED With Glass LENS

Model No

SP100W

Finishing

COB Packing

Material

Epistar chip or Bridgelux chip 45mil

MOQ

100pcs

Size

56X40mm

Package

12pcs/reel ,100pcs /box

Sample

3-4 work days

Delivery

3-4 work days

Certificate

LM-80,ROHS

Quality gurantee

2 years warranty

Main market

Europe, America, Austria, Asia


Competitive Advantage of SUNSHINEOPTO :

1. About 6 years specializing in High Power LED industry;
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components;
3. Strict process and quality control;
4. Good raw materials used in production, using high quality USA Bridgelux chip .
5. Strong design with OEM service and production capability.

The demensions of High power LED 100W as below :

9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS 0

 9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS 1

Applications:

General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
- Streetlight

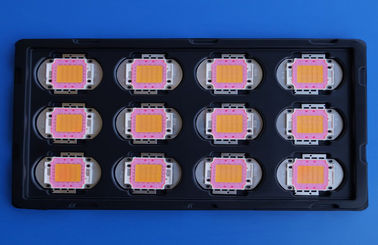

Packing of 100w High Power LEDs :
9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS 2

9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS 3


9500lm - 10500lm LED Module 100W High Power COB LED With Glass LENS 4
