Frosted 90 degree 1W / 3W Optic PMMA Led Lens for Led Flashlight

Brand Name: Sunshineopto
Model Number: SUN-20-90M
MOQ: 1000 pcs
Price: Need to negotiate
Packaging Details: 2000pcs/ctn
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
ROHS
Product Name:
Frosted 90 Degree 1W / 3W Optic PMMA Led Lens For Led Flashlight
Lens Size:
Dia 19.8mm, Height 11.2mm
Holder Size:
Dia 21.6mm, Height 13.5mm
Viewing Angle:
90degree
Material:
Optical PMMA
Match Led:
SSC, Edison Leds
Supply Ability:
10000pcs/day
Highlight:

cree led lens

,

3w led lens

Product Description

Frosted 90 degree 1W / 3W Optic PMMA Led Lens for Led Flashlight





Quick Detail:



1. Frosted surface

2. Lens Size: Dia 19.8mm, height 11.2mm

3. Holder Size: Dia 21.6mm, height 13.5mm

4. Viewing angle: 90 degree

5. Materials: Optical PMMA

6. Chips: SSC, Edison Leds




Specifications:



Model Number Model: SUN-20-90M
Power 1W|3W
Holder Size: Dia 21.6mm, height 13.5mm
Lens size Dia 19.8mm, height 11.2mm
Led chips SSC, Edison Leds
Temp   -35 to + 90 degree
Standards  ROHS
Transmittance 93%
Holder color Black | white holder
Application Wall-washer light,Ceiling light ,Spot Light
Beam Angle 90 degree





Description:



The material of Led Optical Lens is made of high grade PMMA , the transmittance rate is above 93%.

This lens is suitable for  SSC, Edison Leds





Applications:



It can be applied for more led lights like Wall-washer light,Ceiling light ,Spot Light,torch light ,led  down lights and so on .

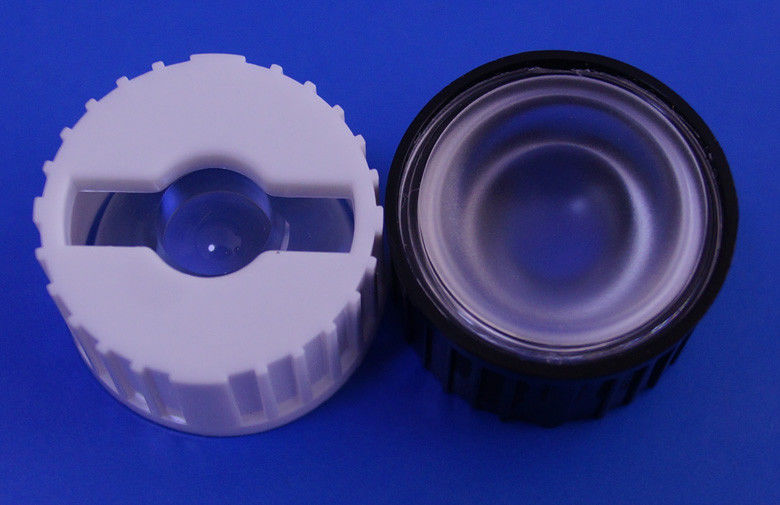

Frosted 90 degree 1W / 3W Optic PMMA Led Lens for Led Flashlight 0

Related Led lens:

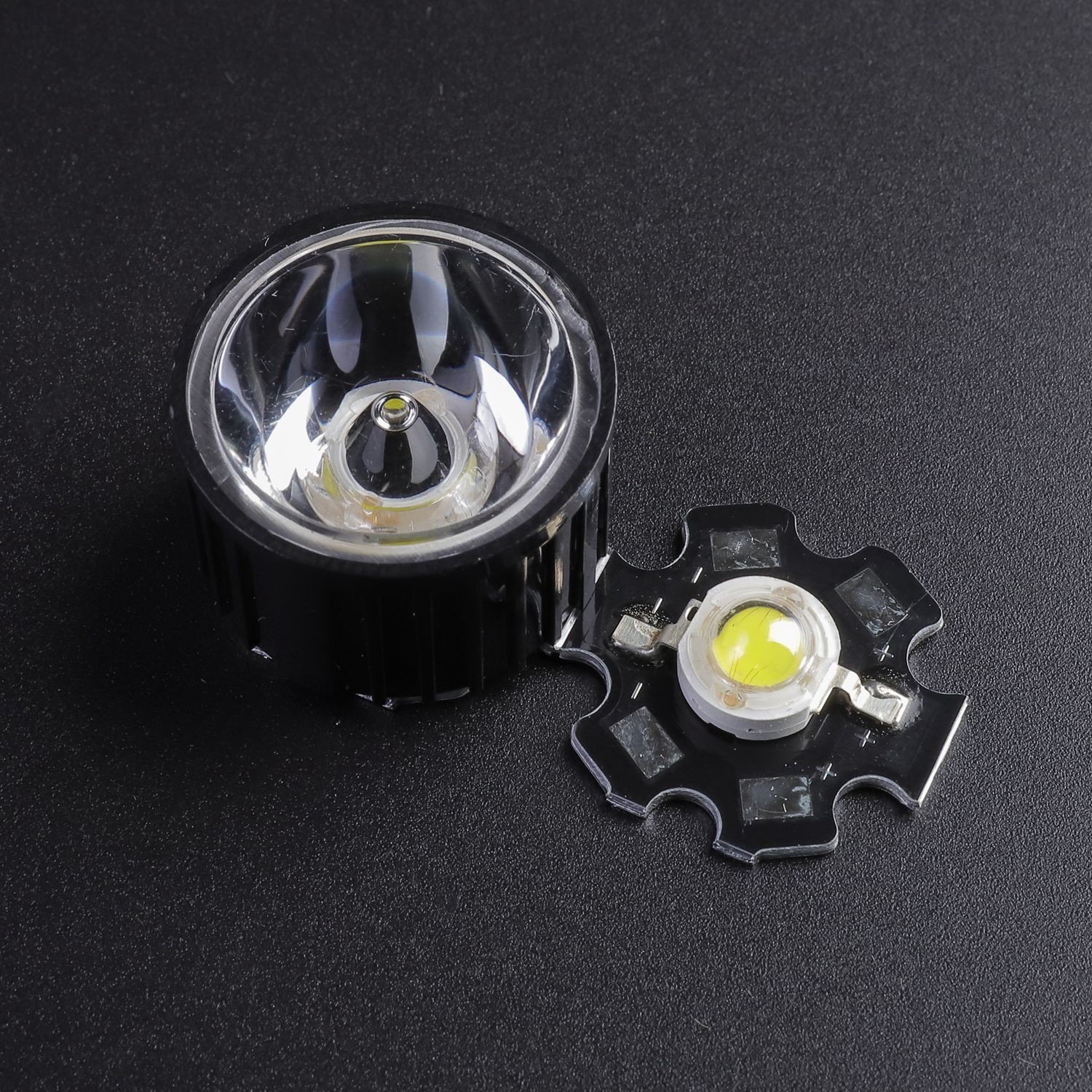

Frosted 90 degree 1W / 3W Optic PMMA Led Lens for Led Flashlight 1





Competitive Advantage:



1. One-Stop Service of led components and 6 years specializing in High Power LED industry

2.Strict process and quality control

3. Good raw materials used in production

4. Strong design and production capability
