Narrow beam LED Optical Lens , Acrylic Led ball Torch Lens with Lumileds SSC Edison Chip

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-23DT
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Need to negotiate
Packaging Details: 2000pcs/ctn
Delivery Time: 3-4 working days for 1000pcs
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 10000pcs/day
Contact Now

Detail Information

Product Name: Narrow Beam PMMA LED Lens , Acrylic Led Ball Torch Lens With Lumileds SSC Edison Chip Lens Size: Dia 23mm, Height 8mm
Viewing Angle: 5-60 Degree Adjust (without Holder) Material: Optical PMMA
Match Led: Lumileds, SSC, Edison Leds Application: Wall-washer Light,Ceiling Light ,Spot Light

Product Description

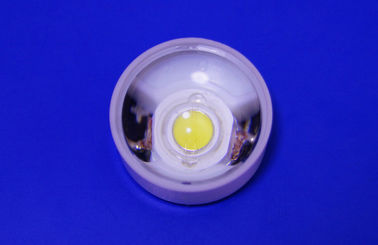

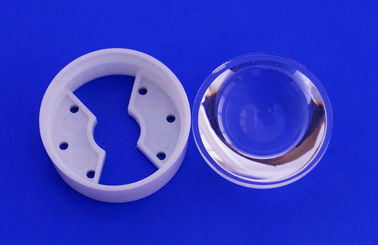

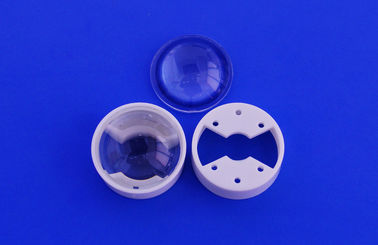

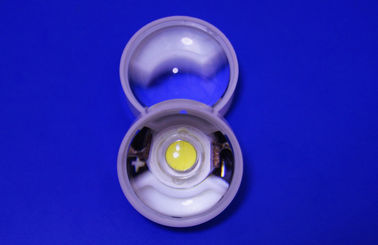

Narrow beam PMMA Led Lens , Acrylic Led ball Torch Lens with Lumileds SSC Edison Chip





Quick Detail:



1. Clear surface

2. Lens Size: Dia 23mm, height 8mm

3. For 1W 3W Leds

4. Viewing angle: 5-60 degree adjust (without holder)

5. Materials: Optical PMMA

6. Chips: Lumileds, SSC, Edison Leds



Specifications:

Model Number Model: SUN-23DT
Power 1W|3W
Lens size Dia 23mm, height 8mm
Led chips  Lumileds, SSC, Edison Leds
Temp   -35 to + 90 degree
Standards  SGS/ROHS
Transmittance 93%
Holder color white holder
Application Wall-washer light,Ceiling light ,Spot Light
Beam Angle 5-60 degree



Description:

The material of Led Optical Lens is made of high grade PMMA , could be 5 degree narrow beam angle. The transmittance rate is above 93%.

This lens is suitable for  Lumileds, SSC, Edison Leds



Applications:

It can be applied for more led lights like Wall-washer light,Ceiling light ,Spot Light,torch light ,led  down lights and so on .

Narrow beam LED Optical Lens , Acrylic Led ball Torch Lens with Lumileds SSC Edison Chip

Related Led lens:

Narrow beam LED Optical Lens , Acrylic Led ball Torch Lens with Lumileds SSC Edison Chip

Production Line:

Narrow beam LED Optical Lens , Acrylic Led ball Torch Lens with Lumileds SSC Edison Chip





Competitive Advantage:



1. One-Stop Service of led components and 6 years specializing in High Power LED industry

2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components

3. Strict process and quality control

4. Good raw materials used in production

5. Strong design and production capability
