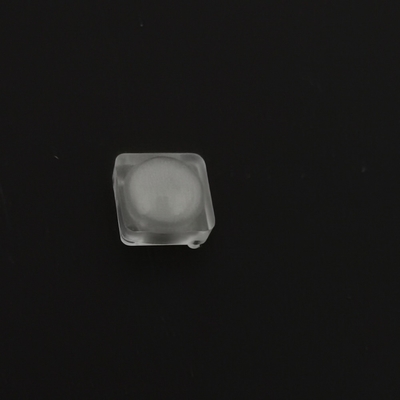

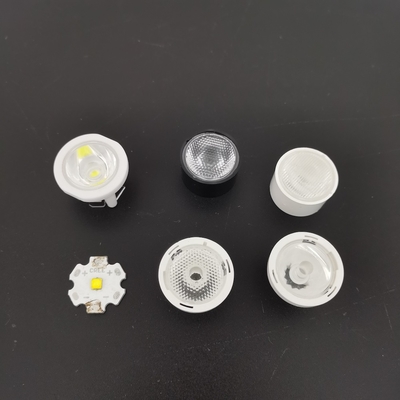

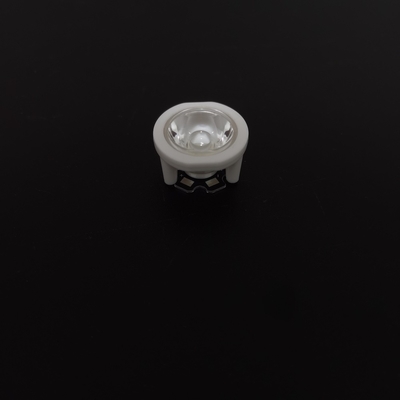

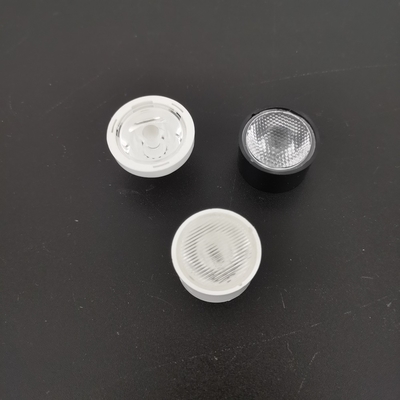

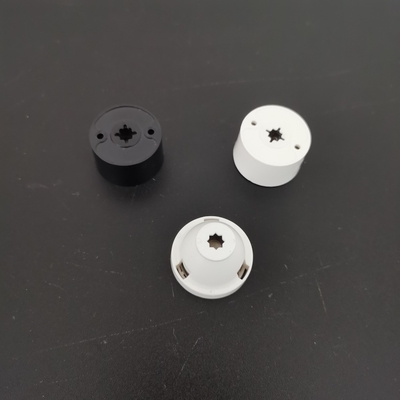

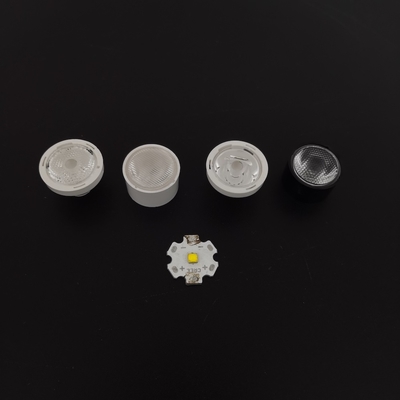

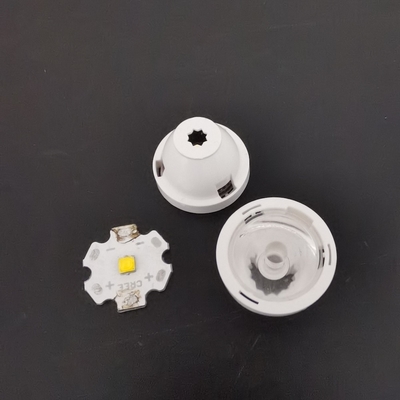

20mm Clear PMMA Led Collimator 8 15 30 45 60 120 Degree Lens with ROHS
Quick Detail:
1.Clear surface
2.Lens Size: Dia 19.6mm, height 11.2mm
3.Holder Size: Dia 25mm, height 13.45mm
4.Viewing angle: 8, 15, 30, 45, 60, 120 degree
5.Materials: Optical PMMA
6.Chips: SSC, Edison Leds
Specifications:
| Model Number | Model: SUN-LHH2030-YXW |
| Power | 1W|3W |
| Holder Size: | Dia 21.6mm, height 13.5mm |
| Lens size | Dia 19.8mm, height 11.2mm |
| Led chips | SSC, Edison Leds |
| Temp | -35 to + 90 degree |
| Standards | ROHS |
| Transmittance | 93% |
| Holder color | White holder |
| Application | Wall-washer light,Ceiling light ,Spot Light |
| Beam Angle | 8, 15, 30, 45, 60, 120 degree |
Description:
The material of Led Optical Lens is made of high grade PMMA , the transmittance rate is above 93%.
This lens is suitable for SSC, Edison Leds
Applications:
It can be applied for more led lights like Wall-washer light,Ceiling light ,Spot Light,torch light ,led down lights and so on .
