Place of Origin:
Shenzhen,China
Brand Name:
Sunshineopto
Certification:
ROHS
Model Number:
SUN-21.8-45
Contact Us

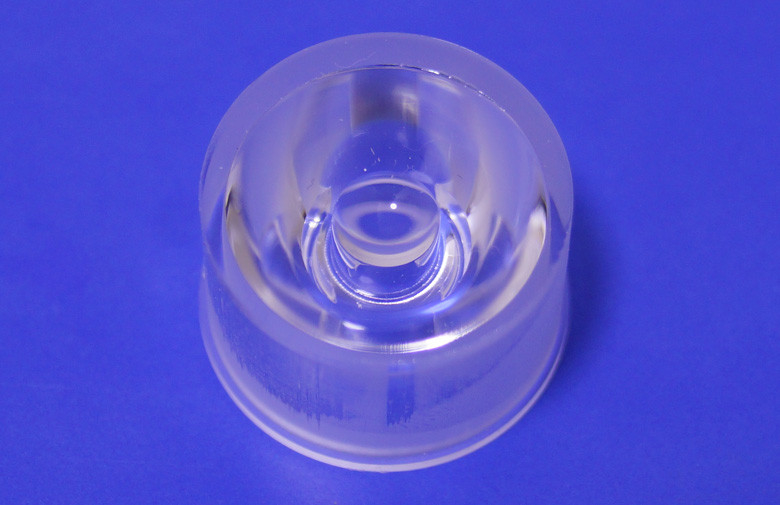

20mm 45 degree High Power Led Collimator Lens for 3 / 1 Watt Bridgelux Chip
Quick Detail:
1. Transparent surface
2. Lens Size: Dia 21.8mm, height 13.8mm
3. For 1W 3W Leds
4. Viewing angle: 45 degree
5. Materials: Optical PMMA
6. Chips: SSC, Edison Leds
Specifications:
| Model Number | Model: SUN-21.8-45 |
| Power | 1W|3W |
| Lens size | Dia 21.8mm, height13 .8mm |
| Led chips | SSC, Edison Leds |
| Temp | -35 to + 90 degree |
| Standards | ROHS |
| Transmittance | 93% |
| Holder color | Transparent holder |
| Application | Wall-washer light,Ceiling light ,Spot Light |
| Beam Angle | 45 degree |
Description:
The material of Led Optical Lens is made of high grade PMMA , could be 45 degree beam angle. The transmittance rate is above 93%.
This lens is suitable for SSC, Edison Leds
Applications:
It can be applied for more led lights like Wall-washer light,Ceiling light ,Spot Light,torch light ,led down lights and so on .
Related Led lens:
Production Line:
Competitive Advantage:
1. One-Stop Service of led components and 6 years specializing in High Power LED industry
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
Send your inquiry directly to us
