3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp

3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp
3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp

Large Image :  3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Sunshineopto
Certification: SGS,ROHS
Model Number: SUN-LD24H1-163X85-TPII-M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/bag 1kg
Delivery Time: 3-4 working days
Payment Terms: T/T,PAYPAL,Western Union,Money Gram
Supply Ability: 5000pcs/months
Contact Now
Detailed Product Description
Product Name: 3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street Light Lens For 40w 50w Lamp Model No.: SUN-LD24H1-163X85-TPII-M
Beam Angle: 163X85 Degree TYPE II-M LENS Size: 173X71.4MM
PCB Size: 145X47X1.5mm Circuit: 8 SERIES 3 PARALLEL
LED CHIP: 5050SMD LED 6V 48V OUTPUT Material: Optical Grade PC

3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp





Quick Detail:



Model No. SUN-LD24H1-163X85-TPII-M
Power (watt) 30-50w
Angle viewing  163X85 degree
Lens size 173x71.4mm
PCB size 145X47X1.5mm
Circuit for 5050smd led 8 series 3 parallel
LED CHIP PH 5050 , 6V White color 3000-6500k 1-5w/pc
Output voltage 48v
Lumen value 130-160lm/w for pcb board
Lense array of 12 leds Small footprint, high light output





Features :



  1. This SKD 24 LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.

.



Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





Specifications:



1, Product Name

3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp

2, Model No

SUN-LD24H1-163X85-TPII-M

3, Main parts

24 Array lens , silicon gasket+PCB board with led

4, Lens Material

PC

5, Lens size

173X71.4mm

6, Transmittance

93%

7,LEDS

5050SMD 1-5W 6V LED

8, Sample

3-4 work day

9, Delivery

5-7 work days for 300 sets

10, Angle

143x70 degree, TYPEII-S
11.Other angle 60 DEGREE / 90 DEGREE/ 163X85 DEGREE

12, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

13, Main market

Europe, South America,North America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days

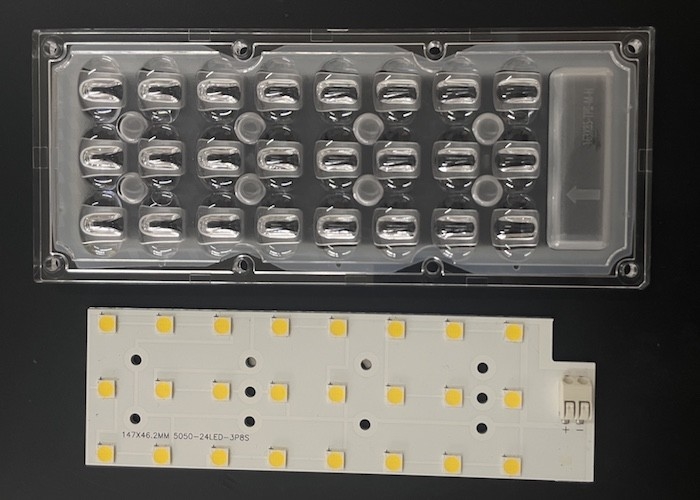

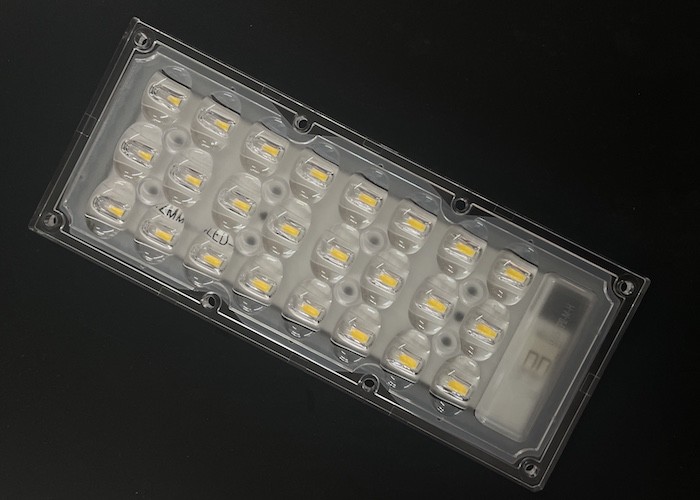

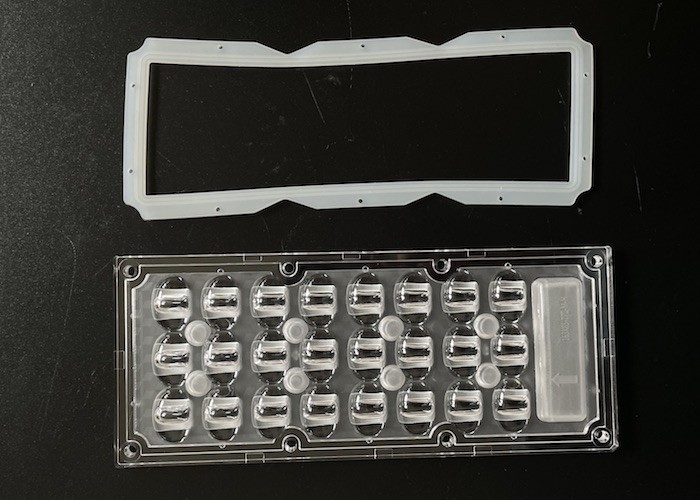

3x8 LENS Dimensions And Beam pattern:



3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp 0



3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp 1



3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp 2



Related LED module:



3x8 24 LED 5050SMD MODULE 163X85 DEGREE Street light lens for 40w 50w lamp 3







Any request or question , please freely contact me by :

Yuan Hu


EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56
Whatsapp:+86-18665803783

Mobile: +86-18665803783
QQ:1831466204
Wechat:Helen1404
