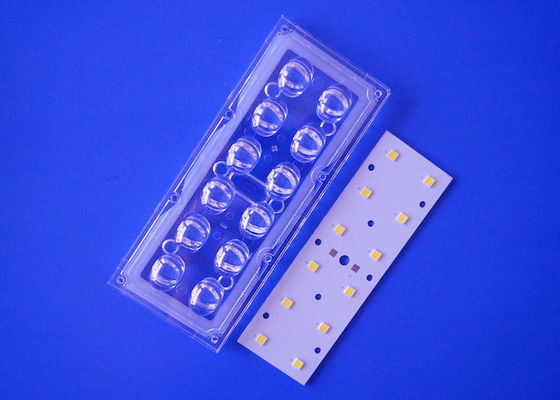

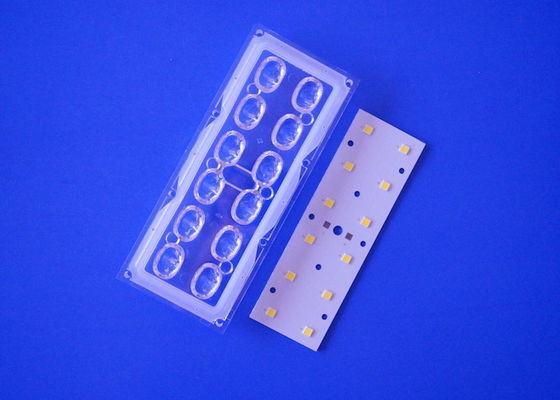

12 Points 143x70 Degree 15W SMD5050 LED Aluminum PCB Board
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 5050SMD LED 12 Points Aluminum PCB Board With Street Light Lens 143x70 Degree 15W 20W 30W | Model No. | SUN-LD2X6CR143X70-TPII-S-5050 |
|---|---|---|---|
| Beam Angle | 143X70 Degree TYPE II-S | LENS Size | 173X71.4X6.4MM |
| PCB Size | 145X47X1.5mm | Circuit | 2 SERIES 6 PARALLEL / 12 LED IN PARALLEL |
| LED CHIP | 5050SMD LED 24V 160mA | Material | Optical Grade PC |
| Highlight | SMD5050 LED Aluminum PCB Board,15W LED Aluminum PCB Board,143x70 Degree Street Light Lens Board |
||
Product Description
5050SMD LED 12 points Aluminum PCB board with street light lens 143x70 degree 15W 20W 30W
Quick Detail:
| Model No. | SUN-LD2X6CR143X70-TPII-S-5050 |
| Power (watt) | 12-30w |
| Angle viewing | 143x70 degree |
| Lens size | 173x71.4x6.4mm |
| PCB size | 145X47X1.5mm |
| Circuit for 5050smd led | 2 series 6 parallel or 12 led in parallel |
| LED CHIP | PH 5050 , 24V White color 3000-6500k 1-5w/pc |
| Output voltage | 48v or 24v |
| Lumen value | 130-160lm/w for pcb board |
| Lense array of 12 leds | Small footprint, high light output |
Features :
- This SKD 12 LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps.
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
.
Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Specifications:
|
1, Product Name |
5050SMD LED 12 points Aluminum PCB board with street light lens 143x70 degree 15W 20W 30W |
|
2, Model No |
SUN-LD2X6CR143x70-TPII-S-5050 |
|
3, Main parts |
12 Array lens , silicon gasket+PCB board with led |
|
4, Lens Material |
PC |
|
5, Lens size |
173X71.4X6.4mm |
|
6, Transmittance |
93% |
|
7,LEDS |
5050SMD 1-5W 24V LED |
|
8, Sample |
3-4 work day |
|
9, Delivery |
5-7 work days for 300 sets |
|
10, Angle |
143x70 degree, TYPEII-S |
| 11.Other angle | 12/30/60/90/60x60/90x90/150/145x70/157x57/143x48/141x78/135x55/145x83/160x63degree and so on |
|
12, Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
13, Main market |
Europe, South America,North America, Asia |
Shipping and delivery time:
|
DHL/UPS/TNT/FEDEX |
4-5 working days |
|
EMS |
10-15 working days |
|
HK Post Air Mail Register |
15-18 working days |
|
Trade Terms |
FOB|EXW|CIF|CFR |
|
Sample availability |
YES |
|
Delivery time |
3-4 working days |
2x6 LENS Dimensions And Beam pattern:
Test data:
LED module with heat sink:
