100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink

100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink

Place of Origin:

Shenzhen,China

Brand Name:

SunshineOpto

Certification:

ROHS

Model Number:

SUN-L236x140-3030-70x140

Contact Us

Request A Quote
Product Details
Model No::
SUN-L236x140-144-3030
Lens Size::
236x140mm
Lens Angle::
70x140 Degree
Wick::
144 Leds
Material::
PC
Transmittance::
92%
Match Led::
Smd 3030
PCB Size:
221x125x1.5 Mm
PCB Circuit:
8 Series 18 Parallel
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
need to negotiation
Packaging Details
cartons
Delivery Time
5-8 working days
Payment Terms
T/T, Western Union, MoneyGram,Paypal
Supply Ability
5000 pcs per month
Product Description

100W 144points 3030 led Street Light Module With Heat Sink


100watt led module
Model No.: SUN-LD236x140-144-3030
Angle:
70x140 degree
Lens Size: 236x140 mm
PCB Size: 221x125x1.5 mm
Lens Material: Optical grade PC
Circuit: 8 series 18 parallel  DC 48V
LED: 144pcs 3030 Leds
Kits:

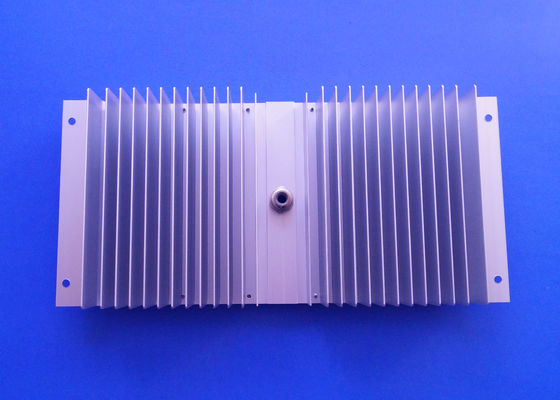

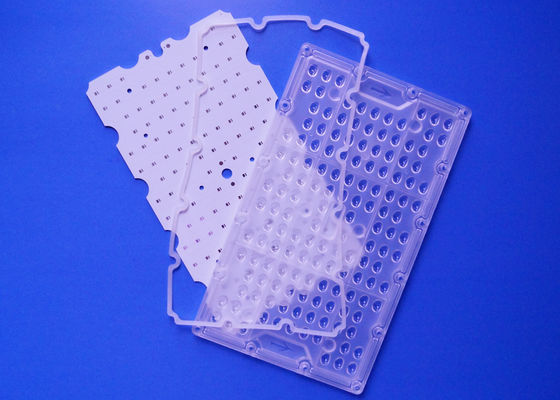

led lens with gasket, led boards, heat sink, screws

Luminous Efficiency: 140lm-160lm/watt , 100watt

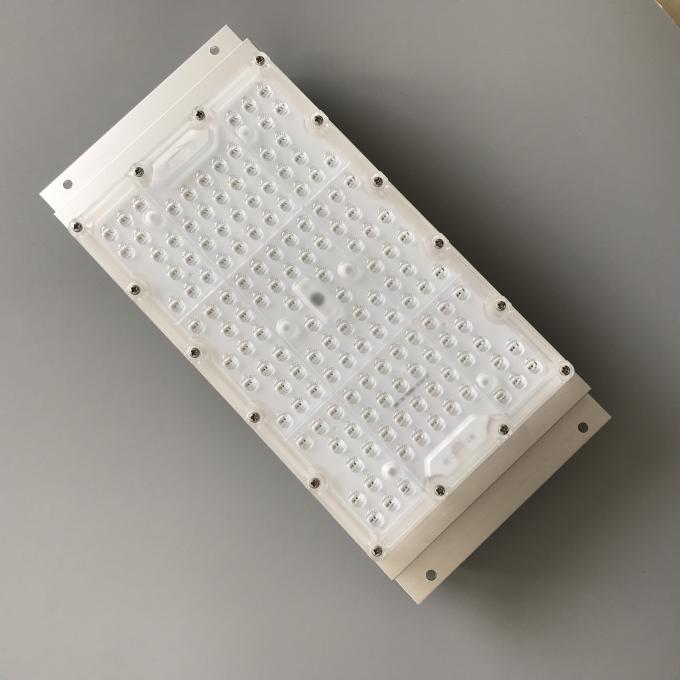

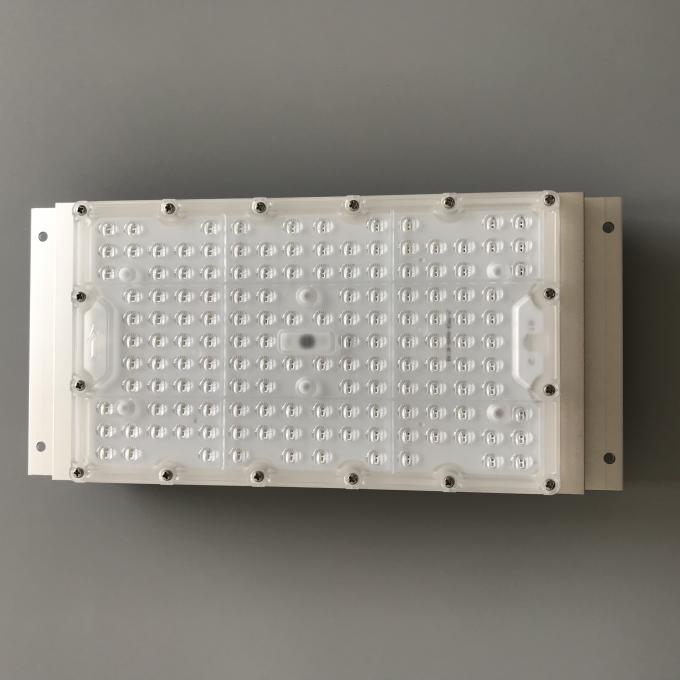

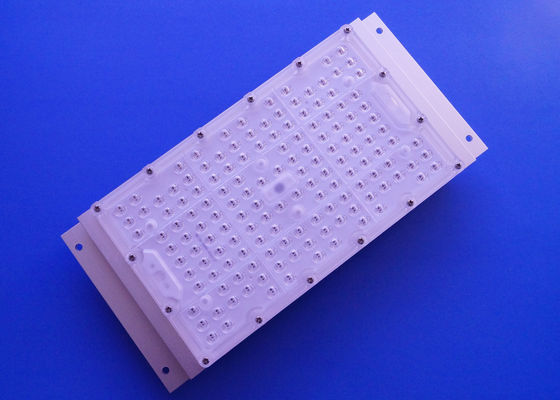

product picture:

100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink 1

100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink 2


Feature:

1, This module, we use 3030 2D square Les leds, the whole module luminous can reach 140-160lm/watt.
2, One module can support 100watt power, whole module size 300x140x40mm,
3It's
more cheaper than XTE/XPG, 5050 Led module, but also high luminous.
4, we provide 2 years warranty.




Lens drawing:
100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink 3
PCB Drawing:

100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink 4

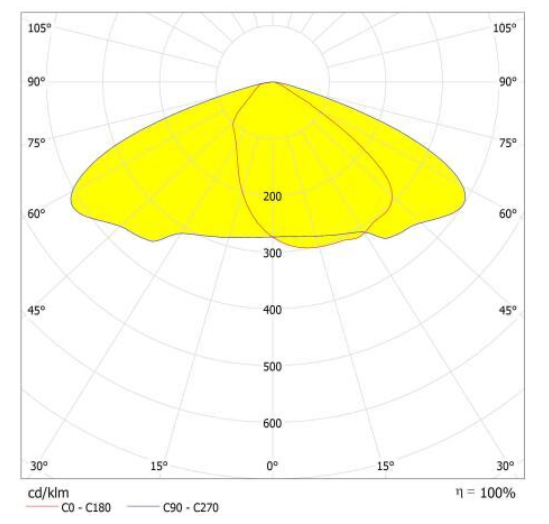

Lens angle: 70x140 degree
100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink 5
Application: Led street light, led high way lamp,


100Watt 144 Points SMD 3030 Led Street Light Module With Heat Sink 6
