10W Silicone 5050 700mA Ceramic LED Diodes 605nm Amber RGB Led Diodes

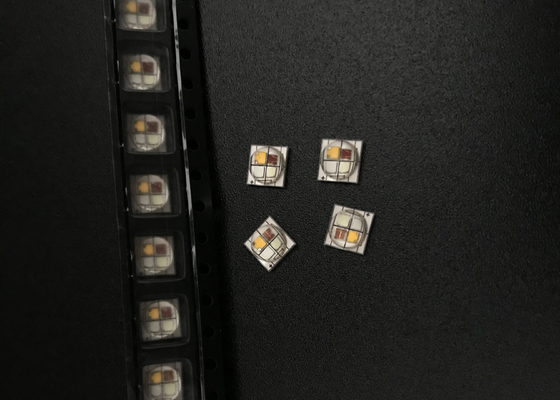

Large Image : 10W Silicone 5050 700mA Ceramic LED Diodes 605nm Amber RGB Led Diodes

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Sunshineopto
Certification:	SGS,ROHS
Model Number:	SUN-5050-RGBA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	need to negotiation
Delivery Time:	3-7 working days
Payment Terms:	T/T, Western Union, MoneyGram，PayPal
Supply Ability:	150000 pcs per week

Contact Now

Detailed Product Description

Power Dissipation:	10W	Continuous Forward Current:	700mA
Lens:	Water Clear,Silicone,Molding	Product Description:	High Thermal Conductivity Ceramics
Input & Output:	Color Controlled By Circuit	Name:	Ceramic LED Diodes
High Light:	10W Silicone Ceramic LED Diodes , 700mA Ceramic LED Diodes , 605nm Amber RGB Led Diodes

10W 5050 4IN1 Ceramic-LED High Power RGB Amber Led Diodes

Product Description

Electrical/Optical Characteristics (At Ta=25°C)

RGBA LED		Standard Values
COLOR	Dominant Wavelength /nm	If(mA)	Forward Voltage /V	Luminous Flux /lm
Red	615-635nm	700	1.8-2.8	95-122
Green	515-535nm	700	2.8-3.8	210-260
Blue	450-465nm	700	2.8-3.8	35-51.7
Amber	585-605nm	700	1.8-2.8	50-67.2

Current-Voltage Curves (At Ta=25°C)

2021-09-16 2.25.32.png

Spectrum Distribution (At Ta=25°C)

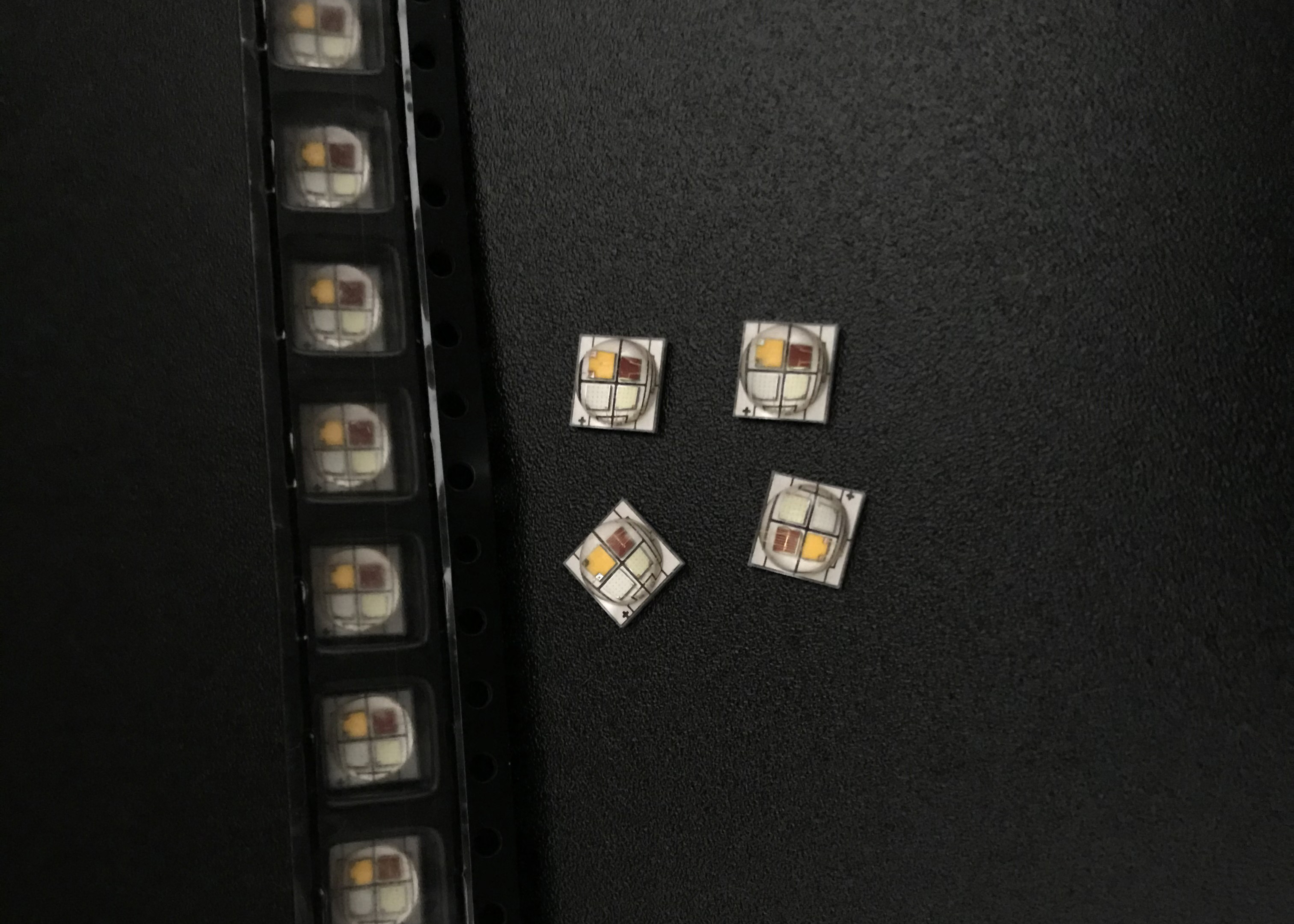

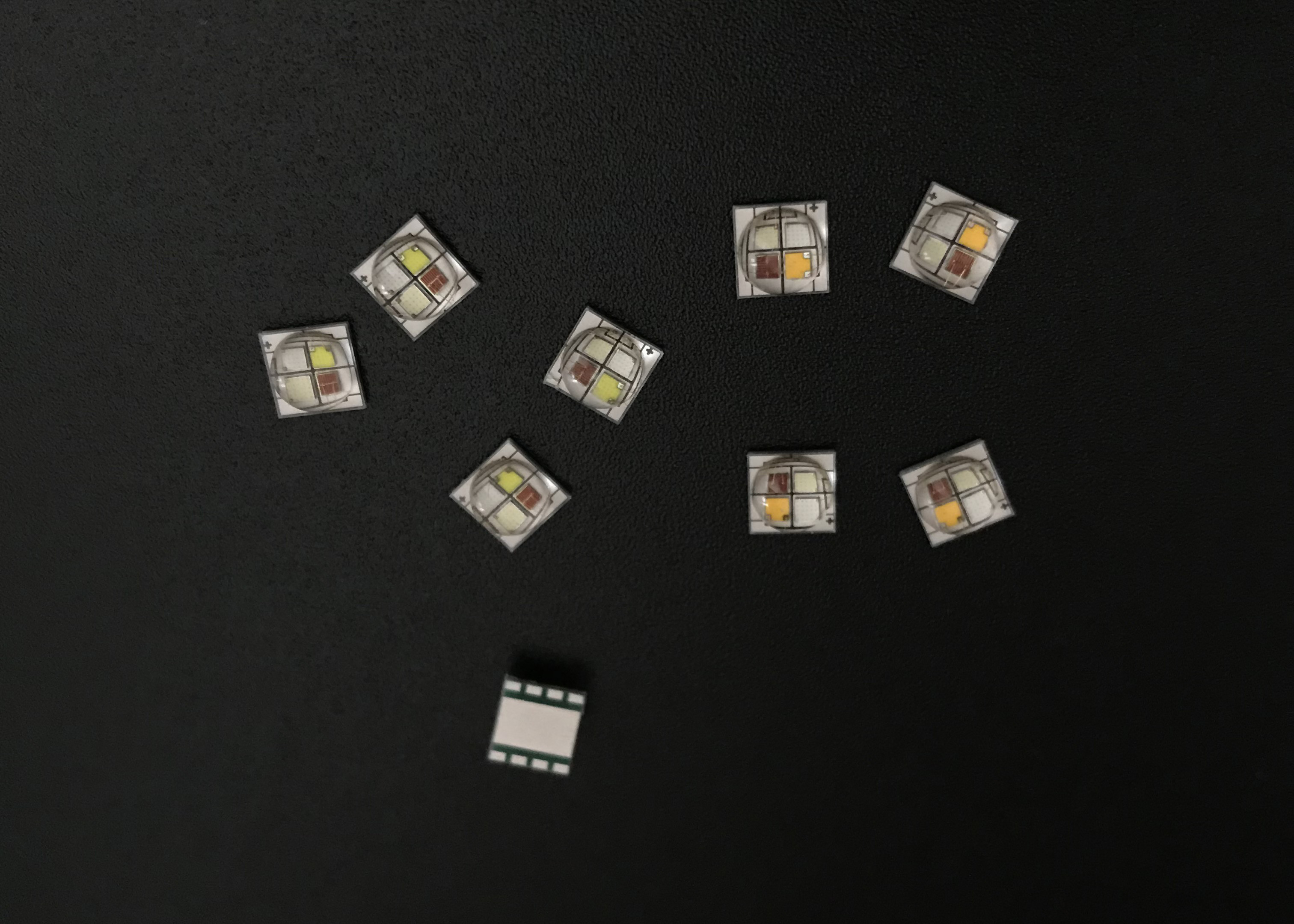

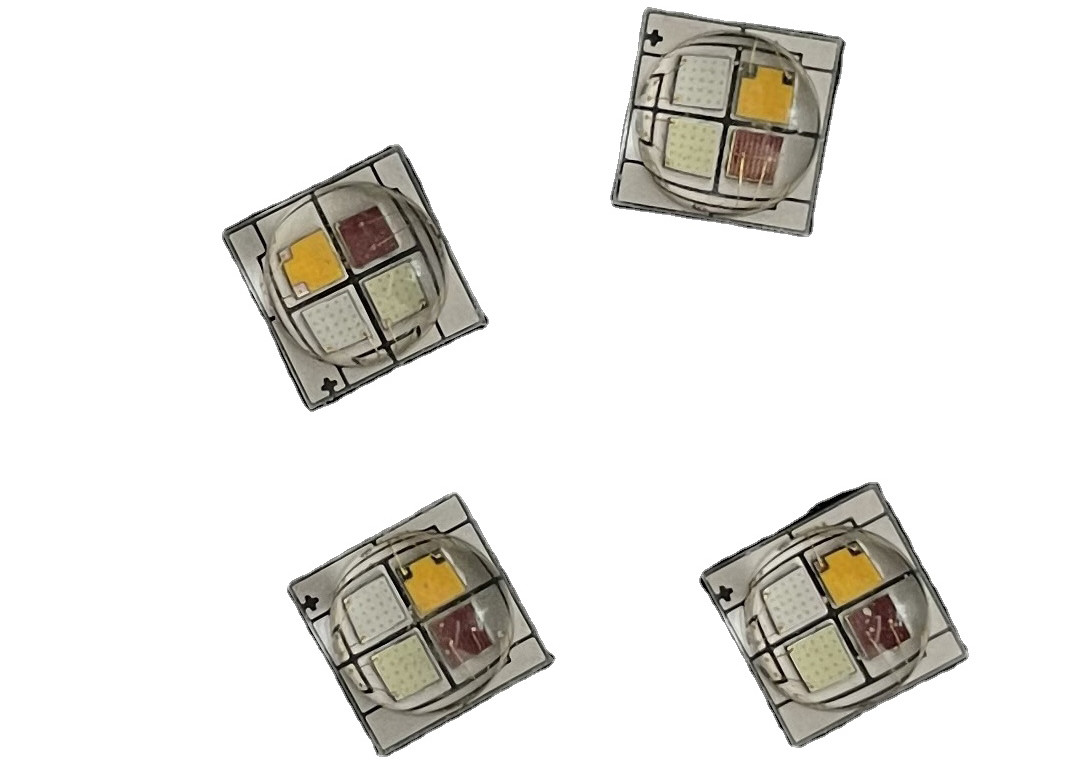

Package Dimensions & Product Picture

Packaging & Shipping

Instruction

1. Reserve:

It should be reserved in dry cabinets in case of moisture. The temperature for reserve

is 25℃±3℃, and the humidity is >40% but <60%.

2. How to handle after removing the tubes:

When sticking the tin, the pasted components separated from the surface of lens may

affect lighting efficiency to cause illuminating degradation. Therefore, it must be

complied as below:

A. The time which products are bare in the air after the packing bags cannot exceed

72 hours.

B. The temperature of reserve for products which are not used out is 25℃±3℃, and

the humidity is >40% but <60%.

C. It is advised to use hand weld since lens are not endurable with high temperature.

3. Products should avoid machinery pressure and strong shake during cooling after tin is

welded.

4. Fast cooling is not allowed.

5. Weld on anamorphic pcb is not allowed.

6. Don’t touch water, il and organic liquor.

7. Current should be considered when products which are used in max. temperature.

8. The appearance and size of products can be revised without any notice.

9. Requirements for electrostatic prevention:

Wear wrist strap or static-proof glove when use products, and all the equipment,

fixtures and worktable must put to earth.

10. Must use driver with constant current.
